SPARKLE TECHNOLOGY
Sparkle Technology Intel Arc B580 Luna OC 12 GB GDDR6
Intel Arc B580 12 GB GDDR6
7680 x 4320 px 192 bit PCI Express x8 4.0
Number of HDMI ports: 1 Number of DisplayPorts: 3
Wersja DirectX: 12 Ultimate Wersja OpenGL: 4.6
Specification
Processor
CUDA:
CUDA (Compute Unified Device Architecture) is a universal architecture for multi-core processors (primarily graphics cards) developed by NVIDIA. CUDA provides access to a set of virtual instructions and the parallel memory of graphics cards.
No
Graphics processor family:
The category to which a graphics processor belongs, e.g., the Southern Islands family of Radeon processors (manufactured by AMD) or GeForce (manufactured by NVIDIA).
Intel
Graphics processor:
A graphics processing unit (GPU) is the main computing unit found in modern graphics cards. The integrated circuit on the graphics card is responsible for most of the computations involved in rendering graphics on the screen. Graphics processors relieve the computer’s CPU of complex calculations, which in turn speeds up the performance of the entire computer.
Arc B580
Maximum number of supported displays:
4
Ray accelerators:
20
Neural Processing Unit (NPU)
NPU performance up to:
233 TOPs
Memory
Graphics adapter memory type:
The type of memory used by a graphics card. Often a combination of dedicated video RAM (or VRAM) and dynamic system memory.
UMA stands for Unified Memory Architecture and is a computer memory architecture that allows the graphics processing unit to share system memory.
Other abbreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate.
GDDR6
Memory bus:
Hardware and software that connect main memory to the memory controller in a computer system. Originally, general-purpose buses such as the VME and S-100 buses were used, but today memory buses connect directly to the DRAM chip and are therefore designed according to the JEDEC standard.
192 bit
Memory bandwidth:
456 GB/s
Graphics
Dedicated graphics card adapter memory:
12 GB
Support for parallel processing:
Parallel computing is a form of computation in which multiple instructions are executed simultaneously. Depending on the level at which the hardware supports parallel operations, computers can be classified as: single-processor multi-core (containing a single multi-core processor), symmetric multiprocessor computers (containing several identical, equivalent processors), and systems consisting of multiple machines: clusters, MPP systems, or grids.
Not supported
DirectX version:
DirectX is a set of APIs (Application Programming Interfaces) designed to simplify tasks related to game development on the Microsoft Windows operating system.
12 Ultimate
Xe Cores:
20

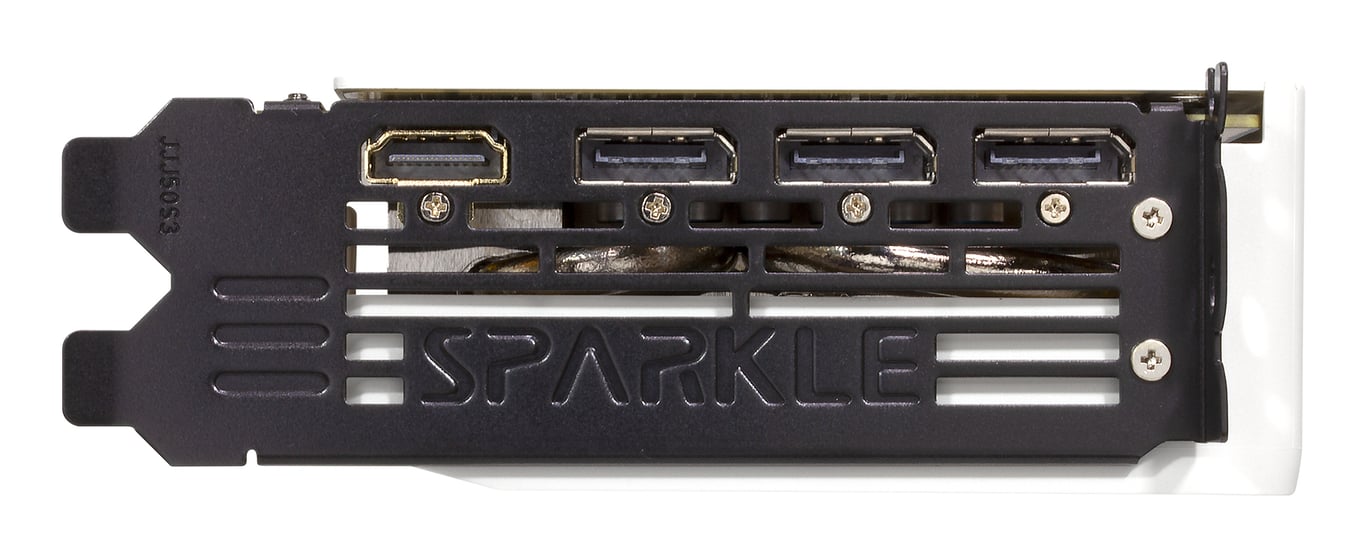

Ports and Interfaces
Number of DisplayPorts:
Number of DisplayPort ports. DisplayPort is a universal digital interface developed by VESA (Video Electronics Standards Association). The interface is used to connect a video source to a display, such as a computer, but it can also be used to transmit audio, USB data, and other data.
3
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
HDMI version:
2.1
Features
Max. resolution:
Maximum number of pixels in an image. This is usually specified as width x height; for example, “1024 x 768” means a width of 1024 pixels and a height of 768 pixels.
7680 x 4320 px
Interface type:
PCI Express x8 4.0
Cooling type:
A method used to cool the device or the air around it.
Active
Structure
Number of fans:
Number of fans (a device with rotating blades that generates airflow for ventilation or cooling).
3 went.
Number of sockets:
2,2
Performance
Built-in TV tuner:
A device with a built-in TV tuner.
No
Processor clock speed:
Processor speed. Manufacturers often express processor clock speed in GHz (1 GHz = 1000 MHz). Processor clock speed is the basic unit, expressed in cycles per second (hertz), at which a computer performs the most basic operations, such as adding two numbers. There are other factors, such as the size of the internal memory, that affect the computer’s actual response time.
2740 MHz
OpenGL version:
OpenGL (Open Graphics Library) is a specification that defines a cross-language, cross-platform API (application programming interface) for writing applications that generate 3D (and 2D) computer graphics. This interface includes over 250 function calls that can be used to develop complex three-dimensional scenes from simple primitive scenes.
4.6
OpenCL version:
3.0
Dual Link DVI:
The dual-channel DVI interface transmits data through both channels to the monitor, resulting in a higher resolution. With dual-channel DVI, a resolution of 2048 x 1536 is possible.
No
Intel® Xe Matrix Extensions (Intel® XMX):
160
System Requirements
Minimum processor:
The minimum processor speed or minimum processor performance required to run a specific program.
10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 11
Minimum system requirements:
PCI-Express compliant MB with one x16 PCIe slot
Minimum RAM:
The minimum amount of RAM required to run a computer program or operating system.
8000 MB
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
200 W
Minimum power supply capacity:
The minimum required amount of energy.
600 W
Additional power connectors:
1x 8-pin
Weight and Dimensions
Product height:
Product height.
117 mm
Product length:
The size of the item from one end to the other.
315 mm
Product depth:
Distance from the front to the back of the item.
44 mm
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
954 g
I/O ports on the rear panel
DisplayPort version:
2.1
Packaging data
Package type:
Product packaging type, e.g., box.
Box
Power supply
Power supply location:
Location of the power supply in the device.
Top
Other features
HDMI:
HDMI (High-Definition Multimedia Interface) is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (source device) to a compatible computer monitor, projector, digital TV, or digital audio device. HDMI is a digital replacement for analog video standards.
Yes
