ALLNET

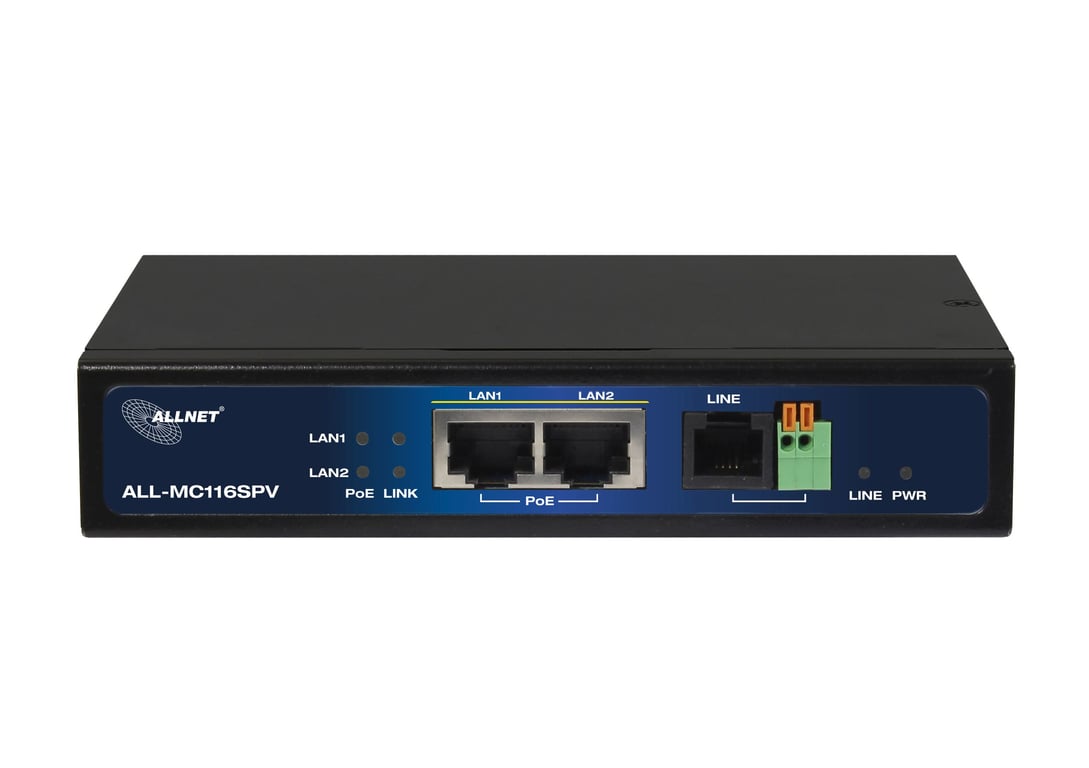

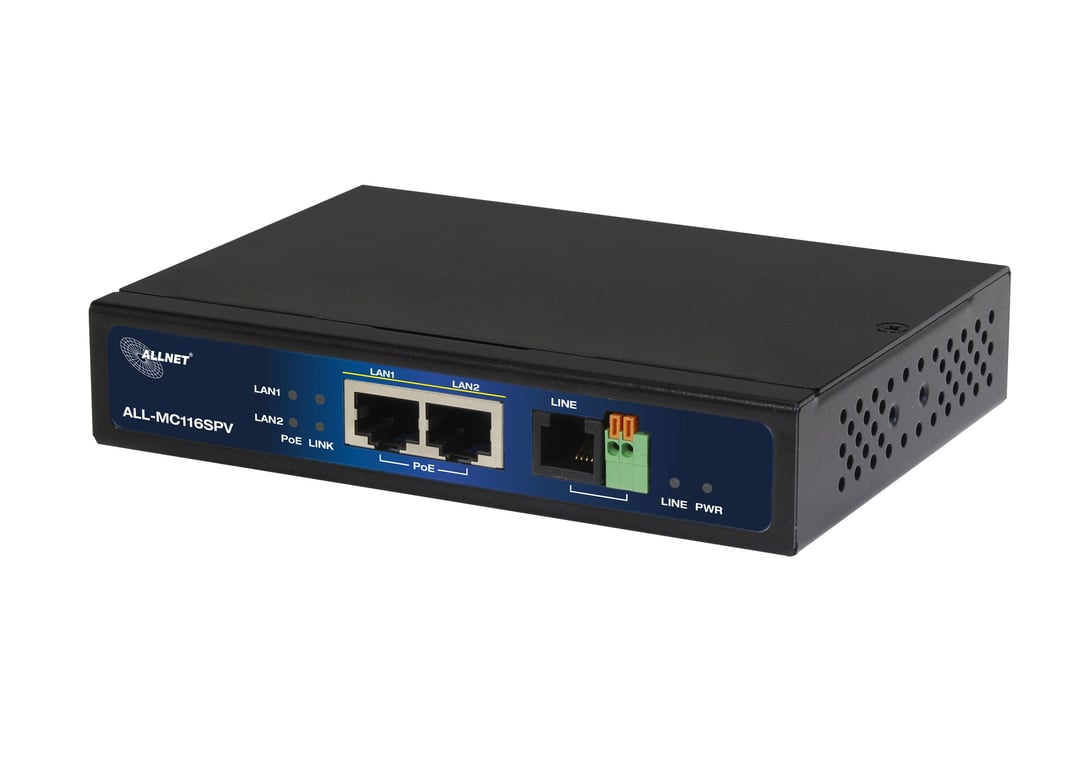

ALLNET ALL-MC116SPV-VDSL2 modem
VDSL2
Standardy komunikacyjne: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Technologia okablowania: 10/100
DC output jack
Specification
Network
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper Ethernet Cabling Technology:
10BASE-T, 100BASE-T
Cabling technology:
Type of cable technology performance; taking into account the fiber or cable type.
10/100
Modulation:
Modulation is a spontaneous or intentional change in signal parameters. An example is the modulated sound of an alarm siren with a variable frequency. The frequency of the changes caused by modulation is much lower than the wave’s frequency. If sinusoidal signals are modulated, this process can cause changes in the amplitude, frequency, or phase of the oscillations. In the case of square waves (often used in digital technology), the modulation process affects the pulse width, amplitude, position (timing), and density.
DMT
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0 - 50 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 - 70 °C
Relative humidity range:
10 - 90%
Structure
Product color:
Color, e.g., red, blue, green, black, white.
Black
Case material:
The material the product's casing is made of.
Metal
LEDs:
Yes
Ports and Interfaces
Port wan:
A WAN (wide area network) connects local area networks that are typically spread across large geographic areas. WANs enable the exchange of data frames and packets between routers and switches, as well as the LANs they serve.
ADSL (RJ-11), Ethernet (RJ-45)
Porty modemu rj-11:
1

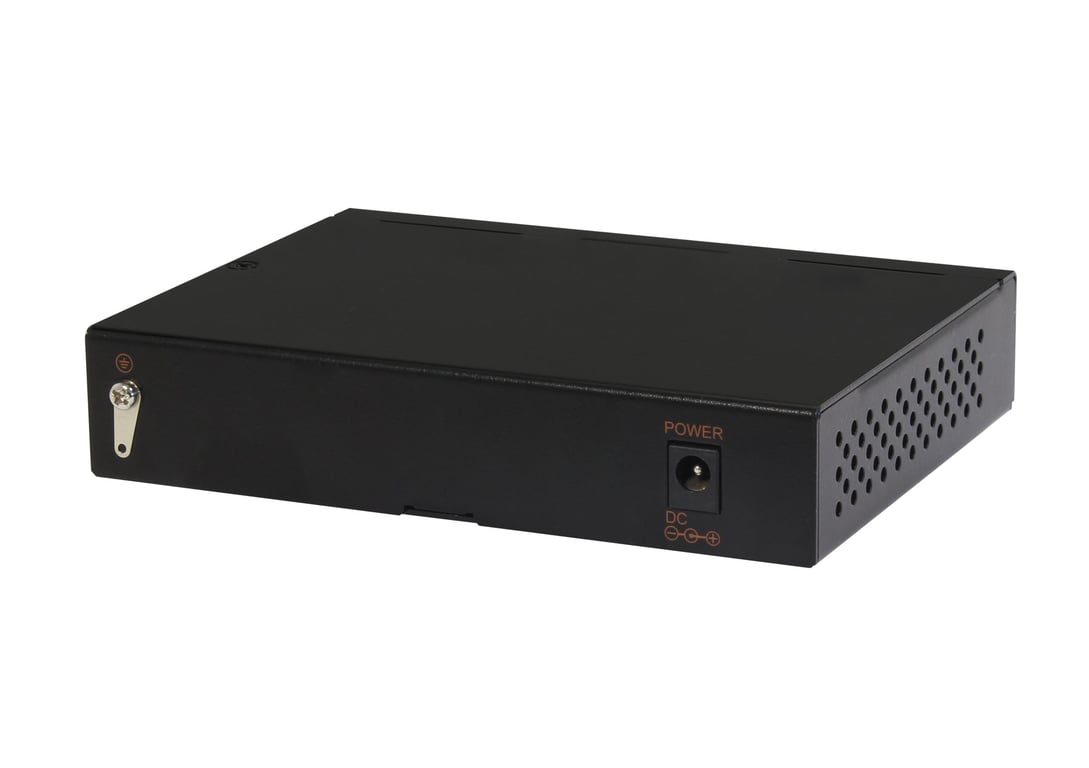

DC output jack:
Connecting the device to a power source.
Yes
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
30 W
I/O ports on the rear panel
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
2
Weight and Dimensions
Product width:
Width measurement.
100 mm
Product depth:
Distance from the front to the back of the item.
27 mm
Product height:
Product height.
137 mm
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
420 g
Package Contents
User Manual:
Yes
DSL Features
VDSL2:
Yes
Technical Details
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, CE, Federal Communications Commission (FCC)
Certificates
Certificates:
CE, FCC, RoHS
Other features
Power LED indicator:
Yes
