ASUS

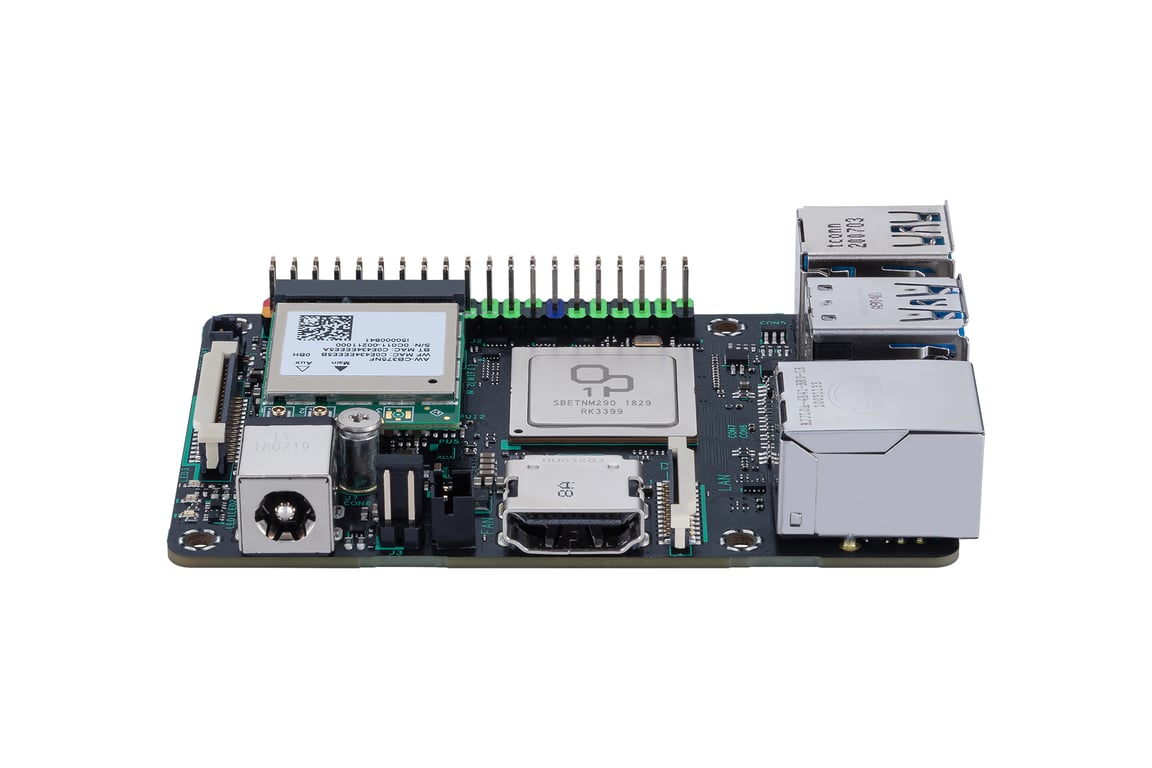

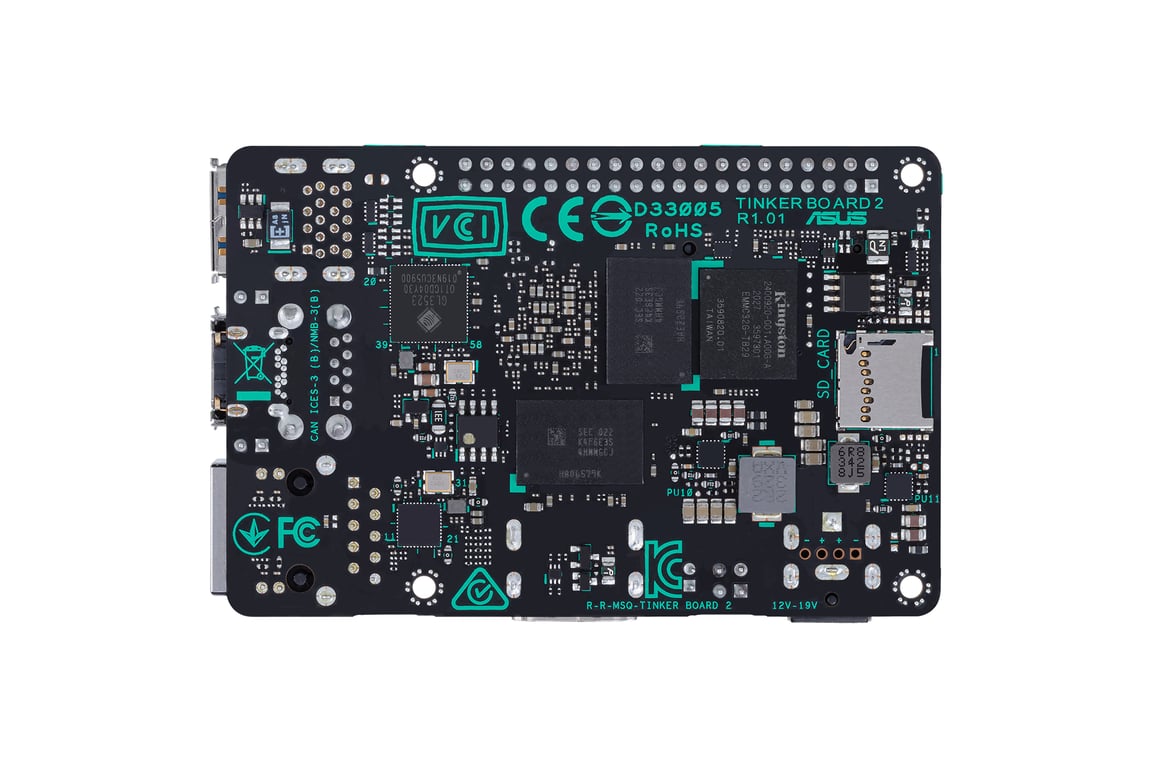

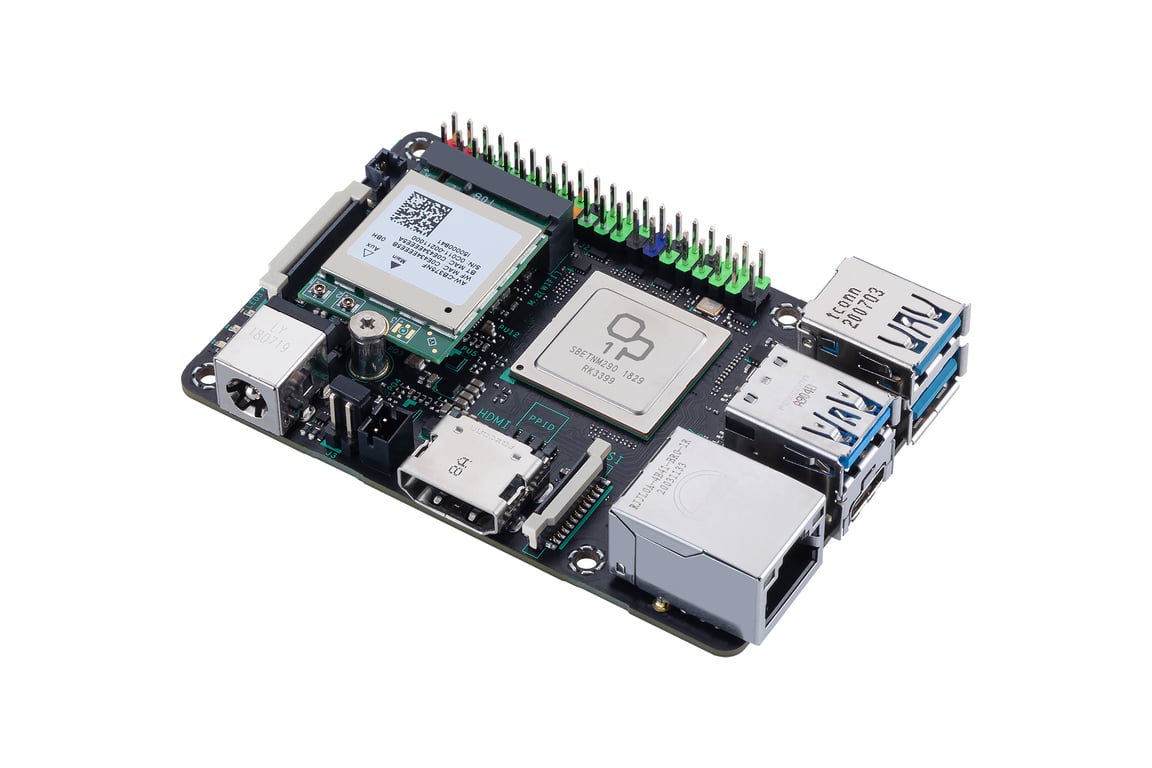

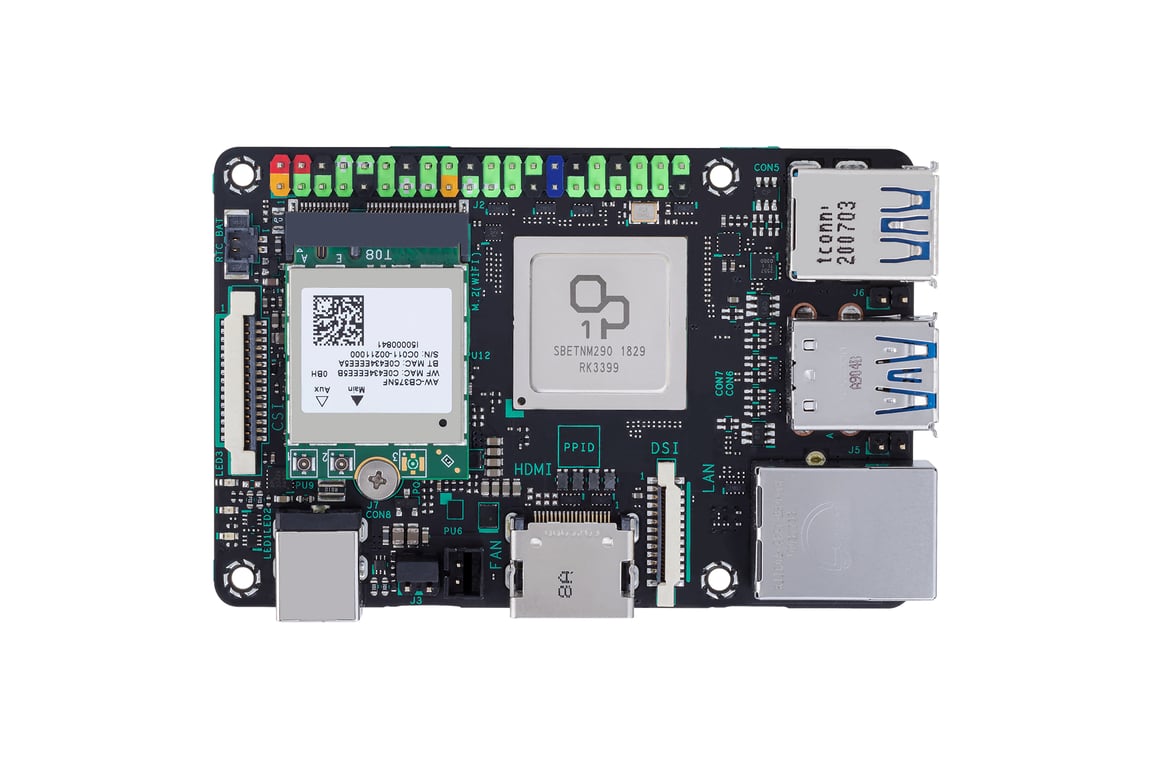

ASUS Tinker Board 2S Starter Kit RK3399 2000 MHz
Specification
Mouse
Bluetooth version:
The type of Bluetooth technology in the device, e.g., Bluetooth Smart (v4.0).
5.0
Data storage medium
Supported memory card types:
Types of memory cards that can be used with this device.
MicroSD (TransFlash)
Graphics
Karta graficzna on-board:
A graphics card built into the motherboard or processor.
Yes
Model karty graficznej on-board:
A graphics card is responsible for generating the image on the display. "On-board" means that the card is built into the motherboard.
ARM Mali-T860 MP4
Network
Wi-Fi:
A popular technology that enables data transmission and wireless Internet connectivity using radio waves.
Yes
Standardy Wi- Fi:
Type of local area network (LAN). It can operate in ad-hoc mode, where network devices communicate directly with each other (peer-to-peer), or in infrastructure mode, where all devices communicate through access points. A LAN connects computers within a small area, such as a home, school, or office.
Wi-Fi 5 (802.11ac)
Bluetooth:
Bluetooth is a low-power radio technology that replaces the cables and wires currently used to connect electronic devices such as personal computers, printers, and a wide range of mobile devices, including cell phones. Because Bluetooth uses radio waves as its communication system, Bluetooth-enabled devices maintain a constant connection regardless of the browser being used. This saves the user the hassle of, for example, having to log in to check email or update messages.
Yes
Ethernet interface type:
Gigabit Ethernet
Processor
Processor model:
The processor model number in the computer.
RK3399
Processor manufacturer:
Processor manufacturer.
Rockchip
Number of CPU cores:
Number of processor cores. Some processors have one core, while others have 2 (e.g., Intel Core Duo) or more (e.g., the Intel Xeon E7-285 has 10 cores).
6
Processor clock speed:
Processor speed. Manufacturers often express processor clock speed in GHz (1 GHz = 1000 MHz). Processor clock speed is the basic unit, expressed in cycles per second (hertz), at which a computer performs the most basic operations, such as adding two numbers. There are other factors, such as the size of the internal memory, that affect the computer’s actual response time.
2000 MHz
Memory
Type of Flash memory:
eMMC
Internal memory type:
Type of internal memory, e.g., RAM, GDDR5.
LPDDR4-SDRAM
Maximum memory capacity:
Maximum internal storage available for a given device.
2 GB
Memory channel support:
Dual-channel
EMMC Performance:
16 GB
Ports and Interfaces
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Number of USB 3.2 Gen 1 (3.1 Gen 1) ports:
Number of USB 3.0 ports. The USB 3.0 port was introduced in November 2008. Devices compliant with the new specification can operate at a speed of 5 Gbit/s and an effective throughput of 4 Gbit/s. USB 3.0 ports are typically blue and are compatible with USB 2.0 ports.
4
USB version:
The Universal Serial Bus (USB) is a type of computer communication port developed in the 1990s to replace older serial and parallel ports. Each subsequent version—such as 1.1, 2.0, or 3.0—is faster than the previous one.
3.2 Gen 1 (3.1 Gen 1)
Audio port type:
I2S
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
I2C interface:
Yes
GPIO interface:
Yes
I2S interface:
Yes
SPI Interface:
Yes
PCM Interface:
Yes
Power
DC input voltage:
12 - 19 V
I/O ports on the rear panel
S/PDIF output port:
An S/PDIF (Sony/Philips Digital Interconnect Format) port is available. S/PDIF is a digital audio interconnect used in audio equipment for relatively short distances. The signal is transmitted via either a coaxial cable with RCA connectors or an optical fiber cable with TOSLINK connectors.
Yes
Weight and Dimensions
Product height:
Product height.
85 mm
Product width:
Width measurement.
56 mm
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–60 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-40 to 85 °C
Relative humidity range:
0 - 85%
Other features
Number of USB ports:
4
