ATEN

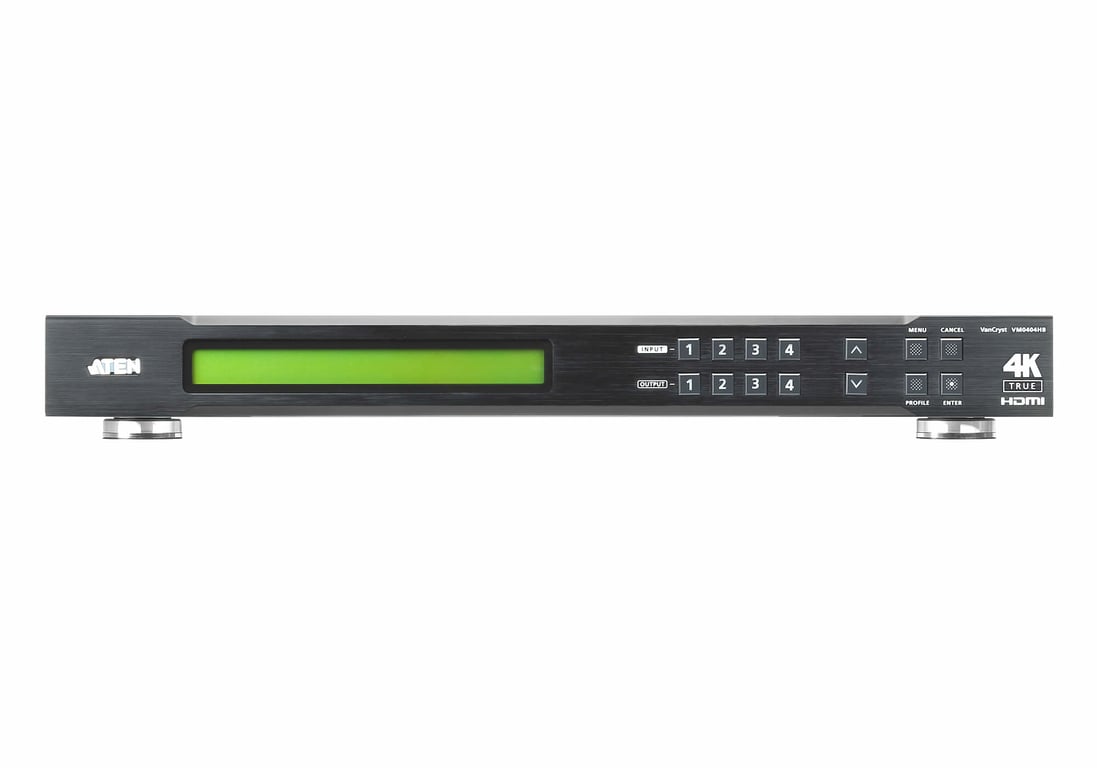

ATEN VM0404HB AV Matrix Switch with Built-in Display, 17.8 W
18 Gbit/s 600 MHz AV Matrix Switch, Black
Max. resolution: 4096 x 2160 px
HDCP and EDID Management
1U
Specification
Features
Product type:
Product subcategory.
AV matrix switcher
Input current:
1 A
Data transfer speed:
The speed at which data can be transmitted to MC, expressed in units per second, may vary depending on the network configuration.
18 Gbit/s
Frame capacity:
Describes the rack capacity in units (U)
1U
3D Compatibility:
The device can be used with 3D technology.
Yes
Case color:
The color of the case, which is a rigid cover that protects the device inside.
Black
EDID Management:
Yes
Display
Maximum pixel clock:
600 MHz
Processor
Max. resolution:
Maximum number of pixels in an image. This is usually specified as width x height; for example, "1024 x 768" means a width of 1024 pixels and a height of 768 pixels.
4096 x 2160 px

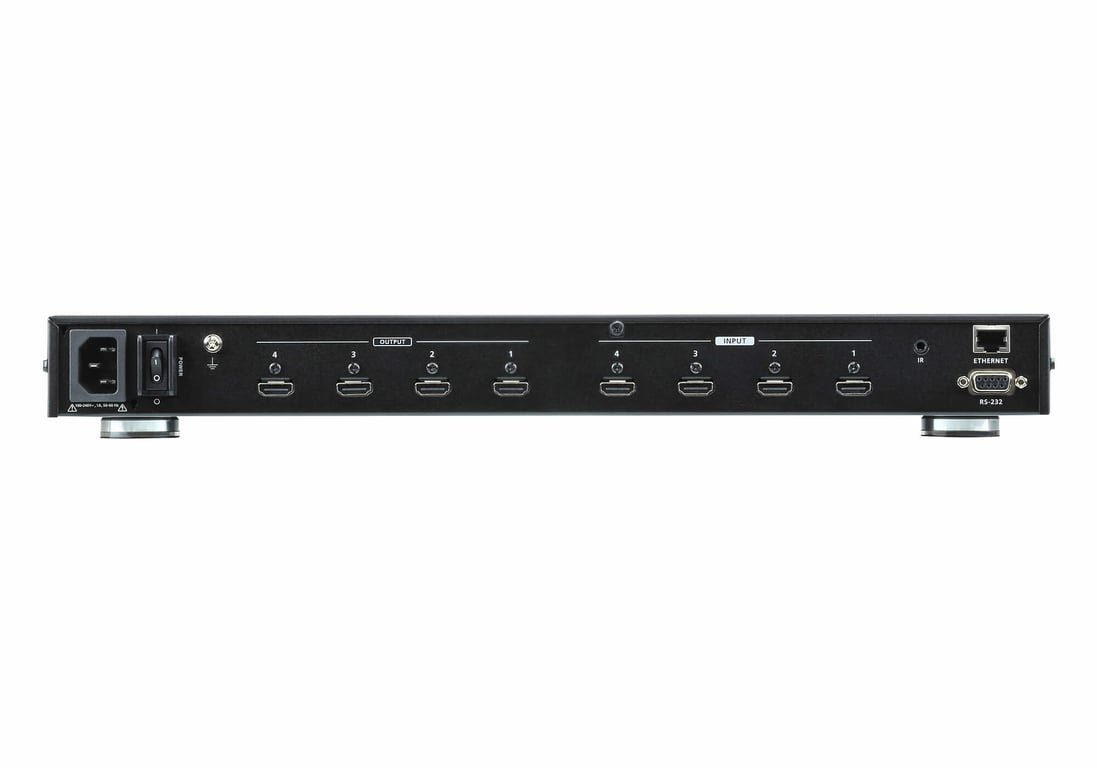

Ports and Interfaces
Number of HDMI input ports:
4
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of protection against the copying of digital audio and video content during its transmission
Yes
HDCP version:
2.2
RJ-45 inputs:
1
Port RS-232:
Number of RS-232 ports. The RS-232 serial port was once standard equipment on personal computers, used for modems, printers, mice, uninterruptible power supplies, and other peripheral devices. Today, this port has largely been replaced by USB and other ports.
1
Number of HDMI output ports:
4
Structure
Built-in display:
The display is part of the device, so no additional hardware needs to be connected.
Yes
Case material:
The material the product's casing is made of.
Metal
Power
AC input voltage:
Electrical voltage.
100 - 240 V
AC input frequency:
50 - 60 Hz
Maximum power consumption:
The maximum amount of power the device consumes.
17.8 W
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
2.75 kg
Product depth:
Distance from the front to the back of the item.
437.2 mm
Product height:
Product height.
44 mm
Product width:
Width measurement.
152.8 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
3.76 kg
Package width:
The distance from one side of the package to the other.
247 mm
Package depth:
Distance from the beginning to the end of the package.
556 mm
Package height:
Distance from the top to the bottom of the package.
153 mm
Package Contents
Remote control included:
Remote Control Function Description
Yes
Cables:
Alternating current
Mounting brackets included:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–40 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 to 60 °C
Relative humidity range:
0 - 80%
Logistics data
Width of the collection box (external):
247 mm
Length of the main (outer) box:
556 mm
Height of the reference box (external):
153 mm
Net weight in the bulk package:
2.75 kg
Harmonized System (HS) code:
85299097
Gross weight of the main (outer) case:
3.76 kg
Products in the main (outer) box:
1 item
