ATEN
ATEN VP1421-AT-G Matrix Switch Scaling Matrix Switch
Black Scaling Matrix Switch
Max. resolution: 4096 x 2160 px
HDCP
Number of HDMI input ports: 2 Number of HDMI output ports: 1 RJ-45 inputs: 1 RJ-45 outputs: 1 DC output jack
Specification
Features
Product type:
Product subcategory.
Scaling Matrix Switch
3D Compatibility:
The device can be used with 3D technology.
Yes
Case color:
The color of the case, which is a rigid cover that protects the device inside.
Black
Extended Display Identification Data (EDID):
Yes
Display
High Dynamic Range (HDR) support:
Yes
Processor
Max. resolution:
Maximum number of pixels in an image. This is usually specified as width x height; for example, "1024 x 768" means a width of 1024 pixels and a height of 768 pixels.
4096 x 2160 px

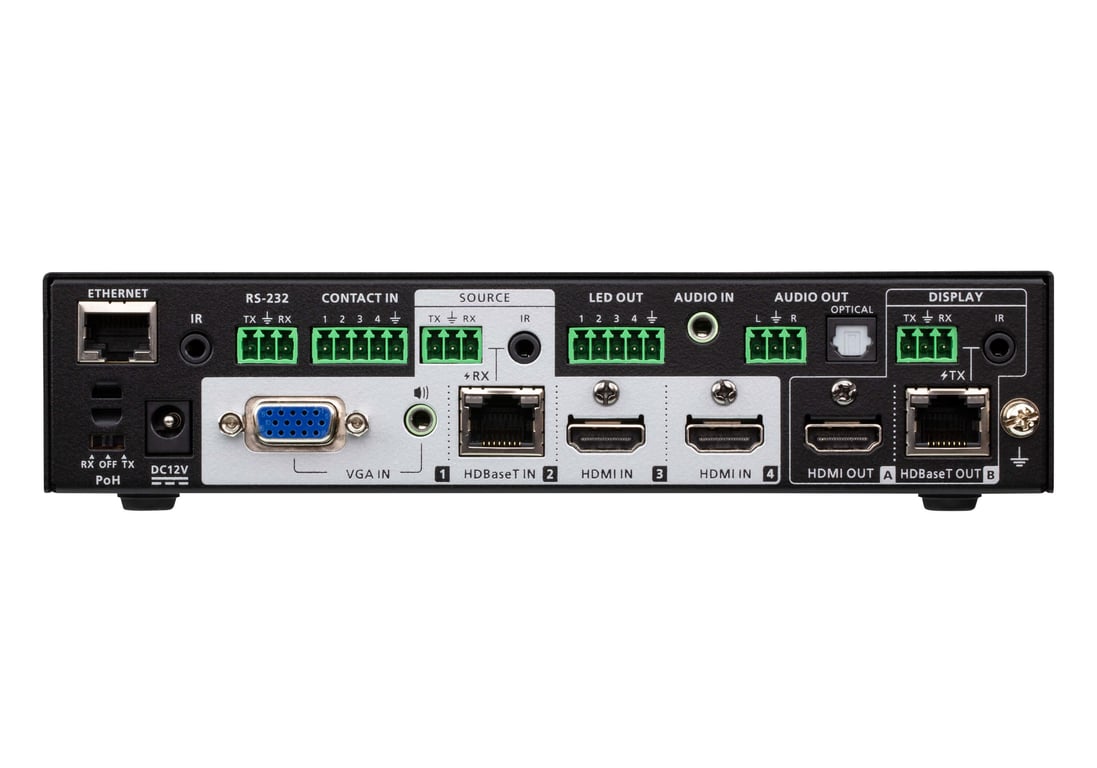

Ports and Interfaces
Number of HDMI input ports:
2
VGA (D-Sub) inputs:
Sockets with 15 connectors for VGA (D-Sub). The 15-pin VGA connector is found on many graphics cards, computer monitors, and high-definition TV sets.
1
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of protection against the copying of digital audio and video content during its transmission
Yes
HDCP version:
2.2
RJ-45 inputs:
1
RJ-45 outputs:
1
Remote IR input:
1
IR output:
1
Number of HDMI output ports:
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
DC output jack:
Connecting the device to a power source.
Yes
Structure
Built-in display:
The display is part of the device, so no additional hardware needs to be connected.
No
Check type:
How to control the device.
Buttons, Rotating
Built-in switch:
A button that turns the device on or off when pressed.
Yes
Case material:
The material the product's casing is made of.
Metal
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
14.93 W
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
1.58 kg
Product depth:
Distance from the front to the back of the item.
200 mm
Product height:
Product height.
44 mm
Product width:
Width measurement.
170.1 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
2.2 kg
Package width:
The distance from one side of the package to the other.
207 mm
Package depth:
Distance from the beginning to the end of the package.
414 mm
Package height:
Distance from the top to the bottom of the package.
117 mm
Package Contents
Remote control included:
Remote Control Function Description
Yes
User Manual:
Yes
Infrared receiver included:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–40 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 to 60 °C
Relative humidity range:
0 - 80%
Permissible relative humidity:
0 - 80%
Heat emission:
Heat expressed in British thermal units per hour; generated by the power supply
110 BTU/h
Logistics data
Width of the collection box (external):
370 mm
Length of the main (outer) box:
427 mm
Height of the reference box (external):
232 mm
Net weight in the bulk package:
4.74 kg
Harmonized System (HS) code:
85299097
Gross weight of the main (outer) case:
7.25 kg
Products in the main (outer) box:
3 items
