ATEN

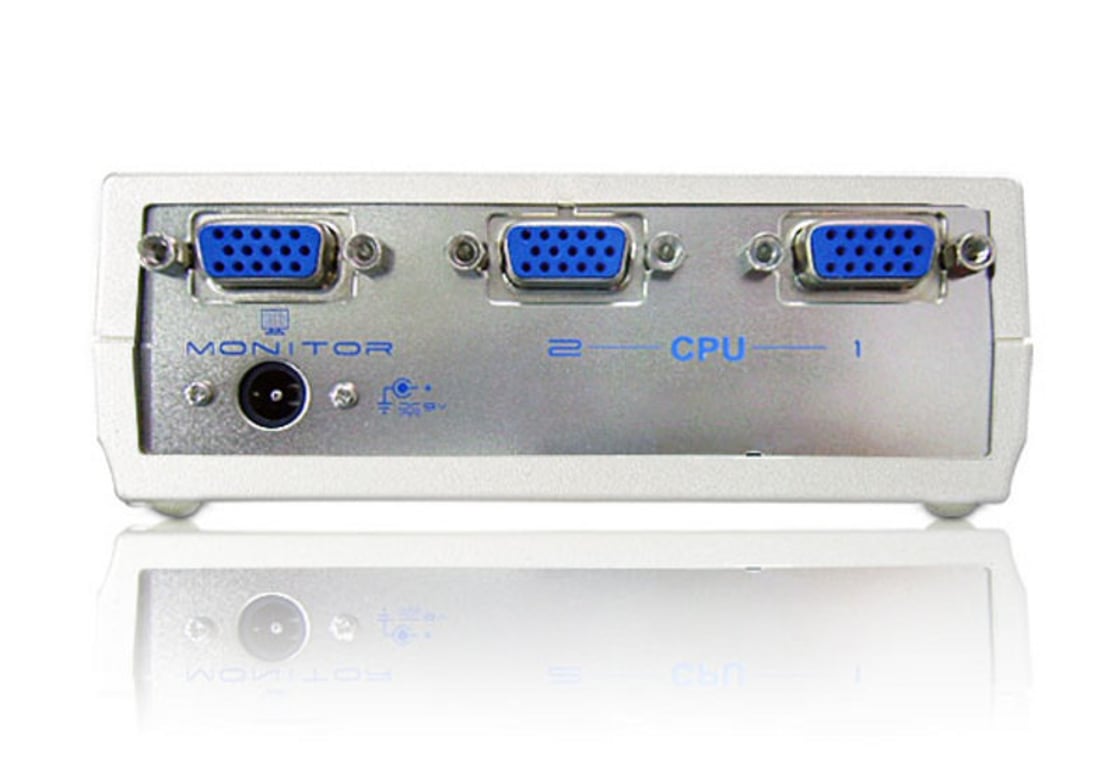

ATEN VS291-AT-G VGA video switch
Video port type: VGA
1920 x 1440 px
Silver
1 szt.
Specification
Display
Maximum refresh rate:
60 Hz
Ports and Interfaces
Video port type:
The type of port on the device for connecting a video device, e.g., SCART.
VGA
Number of VGA (D-Sub) ports:
Number of VGA (D-Sub) ports on the device. VGA (D-Sub) is a 15-pin connector used to connect a computer to a monitor. It was first introduced in 1987 by IBM.
3
VGA (D-Sub) inputs:
Sockets with 15 VGA (D-Sub) connectors. The 15-pin VGA connector is found on many graphics cards, computer monitors, and high-definition TV sets.
2
VGA (D-Sub) outputs:
1
Features
Resources:
The material from which a specific item is made.
Metal, Plastic
Supported image resolutions:
The display resolution that can be shown on a screen. Resolution describes the width and height of a screen, such as a computer screen, and is expressed in pixels.
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1440
Max. resolution:
Maximum number of pixels in an image. This is usually specified as width x height; for example, “1024 x 768” means a width of 1024 pixels and a height of 768 pixels.
1920 x 1440 px
Input impedance:
75 Ω
Bandwidth:
The bandwidth between the highest and lowest frequencies. It is usually expressed in hertz (Hz). The key point is that any band of a given width can transmit the same amount of information, regardless of its location in the frequency spectrum. For example, a 3-kHz bandwidth can carry a telephone conversation regardless of whether it is single-band (as in POTS telephone lines) or has a higher frequency.
150 MHz
Structure
Product color:
Color, e.g., red, blue, green, black, white.
Silver
Performance
LEDs:
Yes
Maximum range of operation:
Maximum distance at which the device can be controlled.
10 m
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
0,82 W
DC output jack:
Connecting the device to a power source.
Yes
Weight and Dimensions
Product height:
Product height.
44 mm
Product width:
Width measurement.
65,2 mm
Product depth:
Distance from the front to the back of the item.
120 mm
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
220 g
Packaging data
Package width:
The distance from one side of the package to the other.
59 mm
Package depth:
Distance from the beginning to the end of the package.
239 mm
Package height:
Distance from the top to the bottom of the package.
160 mm
Weight including packaging:
Weight of the packaged product in grams.
360 g
Package Contents
Quantity per package:
1 szt.
AC power adapter:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0 - 50 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 - 60 °C
Relative humidity range:
0 - 80%
Permissible relative humidity:
0 - 80%
Logistics data
Width of the collection box (external):
315 mm
Length of the main (outer) box:
490 mm
Net weight in the bulk package:
4,4 kg
Height of the reference box (external):
338 mm
Gross weight of the main (outer) case:
7,9 kg
Products in the main (outer) box:
20 szt.
Harmonized System (HS) code:
85176990
Technical Details
Output impedance:
75 Ω
