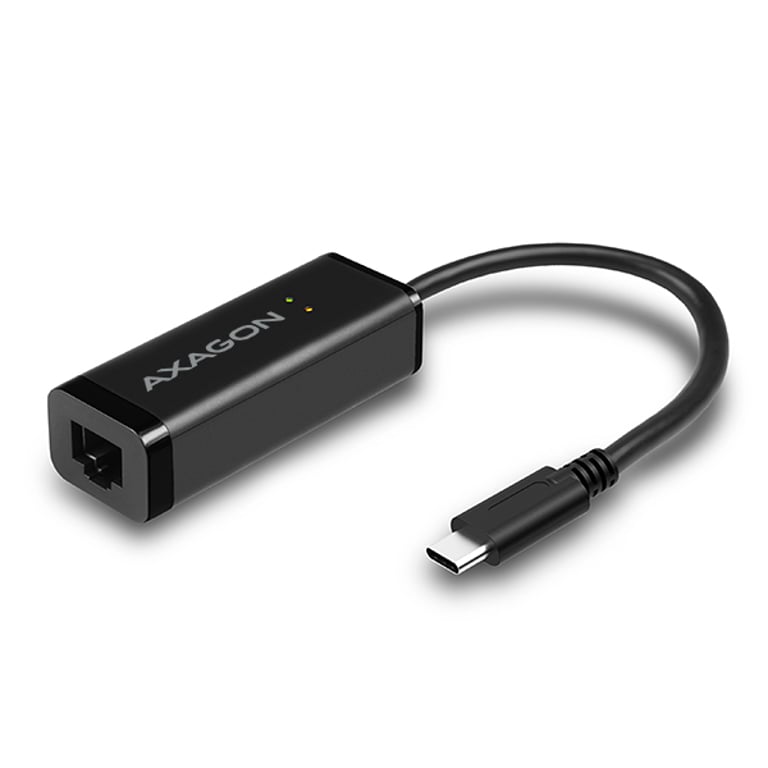

Axagon ADE-SRC 1000 Mbit/s Ethernet network card
Wired
USB Type-C 2.0/3.2 Gen 1 (3.1 Gen 1) Ethernet
Fast Ethernet, Gigabit Ethernet 1000 Mbit/s
Intended Use: PC/Laptop Chipset: Realtek RTL8153
Add useful accessories
Axagon ADE-SRC 1000 Mbit/s Ethernet network card
The compact AXAGON ADE-SRC broadband adapter easily converts a USB-C 3.1 Gen 1 port into a 10/100/1000 Mbit Gigabit Ethernet port.
In addition to gigabit throughput, the network card offers a wide range of features, including IPv4/IPv6 checksum offload to reduce CPU load, crossover detection and auto-correction, TCP large send offload, support for various Wake-on-LAN modes, VLAN support, and advanced power management features.
On modern operating systems starting with Windows 8.1 and later, the adapter allows for simple, automatic installation without the need for an internet connection.
A gigabit network card will, thanks to its simple installation, upgrade your computer with a high-speed network connection, fill in a missing RJ-45 network port, add an additional network card, or replace a malfunctioning original network connection.
Support for current versions of Windows, macOS X, and Linux operating systems allows it to be used on any desktop computer, laptop, or ultrabook equipped with a modern reversible USB Type-C connector. Additionally, certain Android smartphones and tablets, such as the Samsung S9+, can be connected to the internet via an Ethernet cable using this adapter.
Input:
• USB 3.1 Gen 1 / USB 3.0 interface, backward compatible with USB 2.0 and USB 1.1.
• Supports data transfer rates of 12 / 480 / 5000 Mbit/s (full / high / super speed).
• USB Type-C port with a male connector located on a 15 cm cable permanently attached to the adapter.
Output:

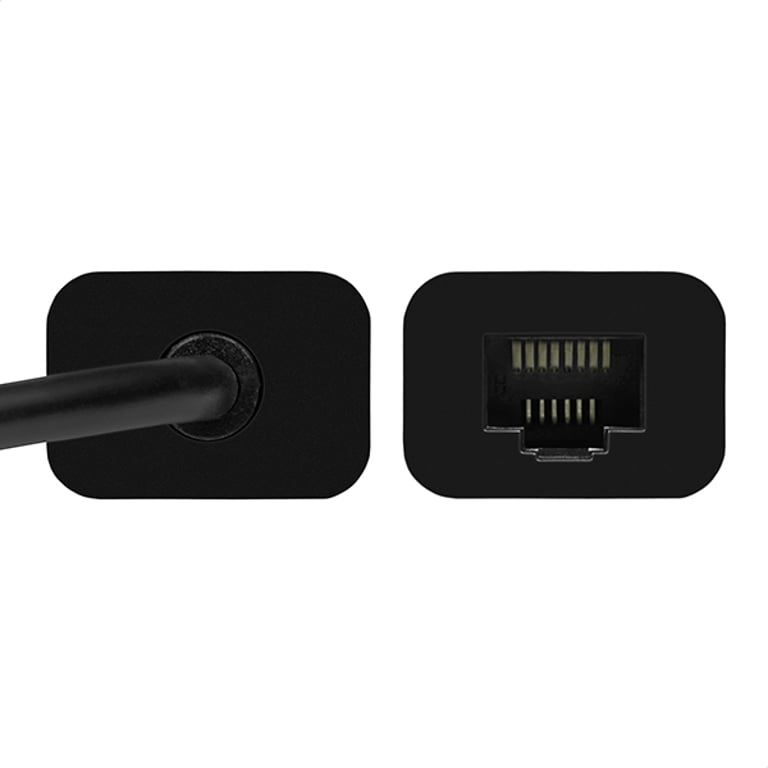

• Gigabit Ethernet interface with an RJ-45 connector for connection via UTP or STP cable.
• Supported Ethernet interface speeds: 10/100/1000 Mb/s.
• Supported specifications: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
• 10/100/1000 Mbit/s auto-detection.
• Support for the IPv4/IPv6 Packet Checksum Offload Engine (COE) to reduce CPU load by offloading IPv4 IP/TCP/UDP/ICMP/IGMP and IPv6 TCP/UDP/ICMPv6 checksum verification and generation.
• Support for TCP Large Send Offload V1 and V2.
• Support for IEEE 802.1P Layer 2 priority encoding and decoding.
• Support for IEEE 802.1Q VLAN tagging.
• Support for IEEE 802.3az EEE (Energy Efficient Ethernet) — reduced power consumption in idle mode.
• Support for Jumbo frames.
• Support for full-duplex transmission with IEEE 802.3x flow control and half-duplex transmission with back-pressure flow control.
• Auto MDI/MDIX support—crossover detection and auto-correction eliminate the need for crossover cables.
• Support for hardware-based Cyclic Redundancy Check (CRC) to detect transmission errors.
• Support for pair swap, polarity, and skew corrections.
Additional features:
• Full support for Plug and Play and Hot Plug.
• CDC-ECM support—for automatic driver installation on various operating systems.
• The adapter is powered via the USB bus (bus power)—no additional power supply is required.

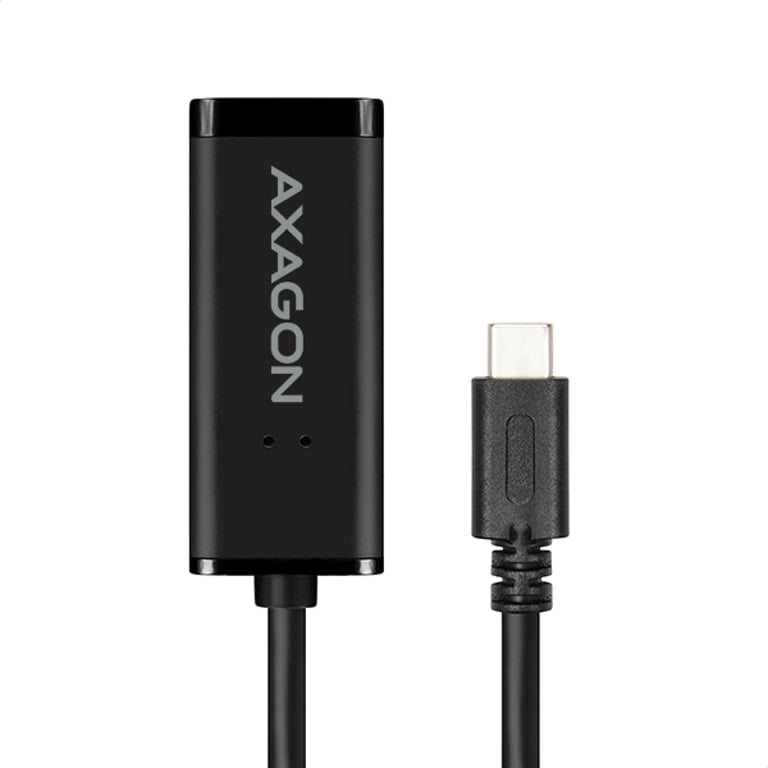

• Two LEDs to indicate network activity and whether the adapter is connected to USB and the network.
• Dimensions: 61 x 25 x 17 mm; USB cable length: 15 cm; weight including USB cable: 23 g.
• Realtek RTL8153 chipset used.
Support for Wake-on-LAN in various modes:
• Support for sleep modes and remote wake-up using Magic Packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, and Link Change wake-up.
• Support for the ECMA-393 proxZzzy® standard for managing the network connectivity of dormant hosts using proxy servers.
• RealWoW! technology support enables remote activation via the Internet.
Advanced Power Management features:
The adapter supports advanced power management to reduce power consumption during idle periods or when network traffic is low. It also supports advanced power-saving features when disconnected from the Ethernet cable.
• Support for the Advanced Configuration Power Management Interface (ACPI).
• Support for Power Management offload (ARP & NS).
• Support for Microsoft Always On Always Connected (AOAC).
• Support for Intel Converged Platform Power Management (CPPM).
• Support for Link Power Management (LPM).
• Support for Operating System-directed Power Management (OSPM).
• Support for IEEE 802.3az EEE (Energy Efficient Ethernet).
Supported OS: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (all 32- and 64-bit versions of Windows OS are supported), Mac OS X 10.6 and later, Linux with kernel 2.6.14 and later, Android all versions (NOTE: You must check with the Android device manufacturer to see if Ethernet connectivity is supported).

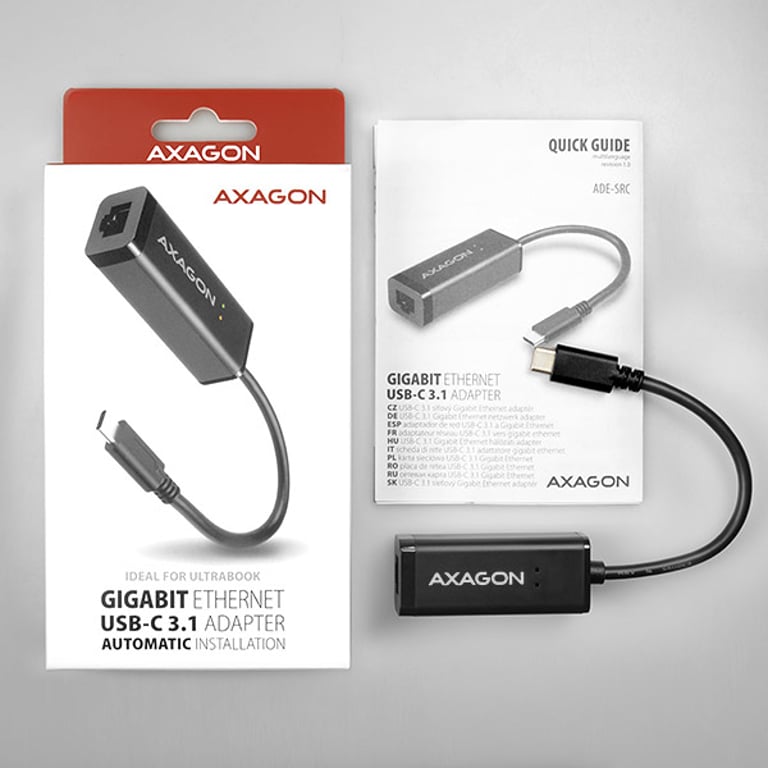

The package includes:
• USB - Gigabit Ethernet adapter with a 15 cm fixed USB-C cable,
• Printed installation manual in CZ/DE/ENG/ESP/FR/HU/IT/PL/RO/RU/SK,
• Packaged in a cardboard box with a hole for hanging on a sales display.
In addition to gigabit throughput, the network card offers a wide range of features, including IPv4/IPv6 checksum offload to reduce CPU load, crossover detection and auto-correction, TCP large send offload, support for various Wake-on-LAN modes, VLAN support, and advanced power management features.
On modern operating systems starting with Windows 8.1 and later, the adapter allows for simple, automatic installation without the need for an internet connection.
A gigabit network card will, thanks to its simple installation, upgrade your computer with a high-speed network connection, fill in a missing RJ-45 network port, add an additional network card, or replace a malfunctioning original network connection.
Support for current versions of Windows, macOS X, and Linux operating systems allows it to be used on any desktop computer, laptop, or ultrabook equipped with a modern reversible USB Type-C connector. Additionally, certain Android smartphones and tablets, such as the Samsung S9+, can be connected to the internet via an Ethernet cable using this adapter.
Input:
• USB 3.1 Gen 1 / USB 3.0 interface, backward compatible with USB 2.0 and USB 1.1.
• Supports data transfer rates of 12 / 480 / 5000 Mbit/s (full / high / super speed).
• USB Type-C port with a male connector located on a 15 cm cable permanently attached to the adapter.
Output:
• Gigabit Ethernet interface with an RJ-45 connector for connection via UTP or STP cable.
• Supported Ethernet interface speeds: 10/100/1000 Mb/s.
• Supported specifications: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
• 10/100/1000 Mbit/s auto-detection.
• Support for the IPv4/IPv6 Packet Checksum Offload Engine (COE) to reduce CPU load by offloading IPv4 IP/TCP/UDP/ICMP/IGMP and IPv6 TCP/UDP/ICMPv6 checksum verification and generation.
• Support for TCP Large Send Offload V1 and V2.
• Support for IEEE 802.1P Layer 2 priority encoding and decoding.
• Support for IEEE 802.1Q VLAN tagging.
• Support for IEEE 802.3az EEE (Energy Efficient Ethernet) — reduced power consumption in idle mode.
• Support for Jumbo frames.
• Support for full-duplex transmission with IEEE 802.3x flow control and half-duplex transmission with back-pressure flow control.
• Auto MDI/MDIX support—crossover detection and auto-correction eliminate the need for crossover cables.
• Support for hardware-based Cyclic Redundancy Check (CRC) to detect transmission errors.
• Support for pair swap, polarity, and skew corrections.
Additional features:
• Full support for Plug and Play and Hot Plug.
• CDC-ECM support—for automatic driver installation on various operating systems.
• The adapter is powered via the USB bus (bus power)—no additional power supply is required.
• Two LEDs to indicate network activity and whether the adapter is connected to USB and the network.
• Dimensions: 61 x 25 x 17 mm; USB cable length: 15 cm; weight including USB cable: 23 g.
• Realtek RTL8153 chipset used.
Support for Wake-on-LAN in various modes:
• Support for sleep modes and remote wake-up using Magic Packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, and Link Change wake-up.
• Support for the ECMA-393 proxZzzy® standard for managing the network connectivity of dormant hosts using proxy servers.
• RealWoW! technology support enables remote activation via the Internet.
Advanced Power Management features:
The adapter supports advanced power management to reduce power consumption during idle periods or when network traffic is low. It also supports advanced power-saving features when disconnected from the Ethernet cable.
• Support for the Advanced Configuration Power Management Interface (ACPI).
• Support for Power Management offload (ARP & NS).
• Support for Microsoft Always On Always Connected (AOAC).
• Support for Intel Converged Platform Power Management (CPPM).
• Support for Link Power Management (LPM).
• Support for Operating System-directed Power Management (OSPM).
• Support for IEEE 802.3az EEE (Energy Efficient Ethernet).
Supported OS: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (all 32- and 64-bit versions of Windows OS are supported), Mac OS X 10.6 and later, Linux with kernel 2.6.14 and later, Android all versions (NOTE: You must check with the Android device manufacturer to see if Ethernet connectivity is supported).
The package includes:
• USB - Gigabit Ethernet adapter with a 15 cm fixed USB-C cable,
• Printed installation manual in CZ/DE/ENG/ESP/FR/HU/IT/PL/RO/RU/SK,
• Packaged in a cardboard box with a hole for hanging on a sales display.
Specification
Data Transfer
Compatible with Jumbo Frames:
Yes
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
1000 Mbit/s
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
Ethernet
Purpose:
Indicates an item of which a given product may be an instance.
PC/Laptop
Data transfer speed:
The speed at which data can be transmitted to MC, expressed in units per second, may vary depending on the network configuration.
5 Gbit/s
Cable length:
Cable length.
0.15 m
Set of layouts:
Chipset for this configuration, expressed as the manufacturer’s name and the product’s proprietary name.
Realtek RTL8153
Certificates:
CE, RoHS
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Funkcja Wake-On-LAN:
Yes
LAN Controller:
Realtek RTL8153
Ethernet interface type:
Fast Ethernet, Gigabit Ethernet
VLAN support:
A virtual local area network (VLAN) consists of several computers and switches. It is a computer network that is logically separated within another, larger physical LAN.
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
USB Type-C
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
USB version:
The Universal Serial Bus (USB) is a type of computer communication port developed in the 1990s to replace older serial and parallel ports. Each subsequent version—such as 1.1, 2.0, or 3.0—is faster than the previous one.
2.0/3.2 Gen 1 (3.1 Gen 1)
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Performance
USB-powered:
A device that can be powered via a USB cable.
Yes
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Black
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Yes
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Yes
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Supported server operating systems:
Yes
Ergonomics
Plug & Play support:
Indicates whether a given product supports the "plug & play" feature. Plug & play refers to a type of device or software that can be used immediately after it is connected, as opposed to devices or software that require configuration.
Yes
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
23 g
Product depth:
Distance from the front to the back of the item.
25 mm
Product height:
Product height.
17 mm
Product width:
Width measurement.
61 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
54 g
Package width:
The distance from one side of the package to the other.
180 mm
Package depth:
Distance from the beginning to the end of the package.
90 mm
Package height:
Distance from the top to the bottom of the package.
25 mm
Phone features
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes
Package Contents
User Manual:
Yes
Logistics data
Country of origin:
Country where the product was manufactured.
China
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, CE
Technical Details
Warranty Period:
2 years
