AXAGON
Axagon ADE-TRC 1000 Mbit/s Ethernet network card
Wired
USB Type-C 2.0/3.2 Gen 1 (3.1 Gen 1) Ethernet
Gigabit Ethernet 1000 Mbit/s
Intended Use: PC/Laptop Chipset: Realtek RTL8153
Specification
Data Transfer
Compatible with Jumbo Frames:
Yes
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
1000 Mbit/s
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
Ethernet
Purpose:
Indicates an item of which a given product may be an instance.
PC/Laptop
Set of layouts:
Chipset for this configuration, expressed as the manufacturer’s name and the product’s proprietary name.
Realtek RTL8153
Certificates:
CE, RoHS
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Funkcja Wake-On-LAN:
Yes
LAN Controller:
Realtek RTL8153
Ethernet interface type:
Gigabit Ethernet
VLAN support:
A virtual local area network (VLAN) consists of several computers and switches. It is a computer network that is logically separated within another, larger physical LAN.
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
USB Type-C
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
USB version:
The Universal Serial Bus (USB) is a type of computer communication port developed in the 1990s to replace older serial and parallel ports. Each subsequent version—such as 1.1, 2.0, or 3.0—is faster than the previous one.
2.0/3.2 Gen 1 (3.1 Gen 1)
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Performance
USB-powered:
A device that can be powered via a USB cable.
Yes
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Gray
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Kernel 2.6.31, Kernel 2.6.33
Supported server operating systems:
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64, Windows Server 2016, Windows Server 2016 x64
Other supported operating systems:
Android
Ergonomics
Plug & Play support:
Indicates whether a given product supports the "plug & play" feature. Plug & play refers to a type of device or software that can be used immediately after it is connected, as opposed to devices or software that require configuration.
Yes
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
26 g
Product depth:
Distance from the front to the back of the item.
16 mm
Product height:
Product height.
59 mm
Product width:
Width measurement.
24 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
63 g
Package width:
The distance from one side of the package to the other.
100 mm
Package depth:
Distance from the beginning to the end of the package.
28 mm
Package height:
Distance from the top to the bottom of the package.
203 mm
Phone features
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes

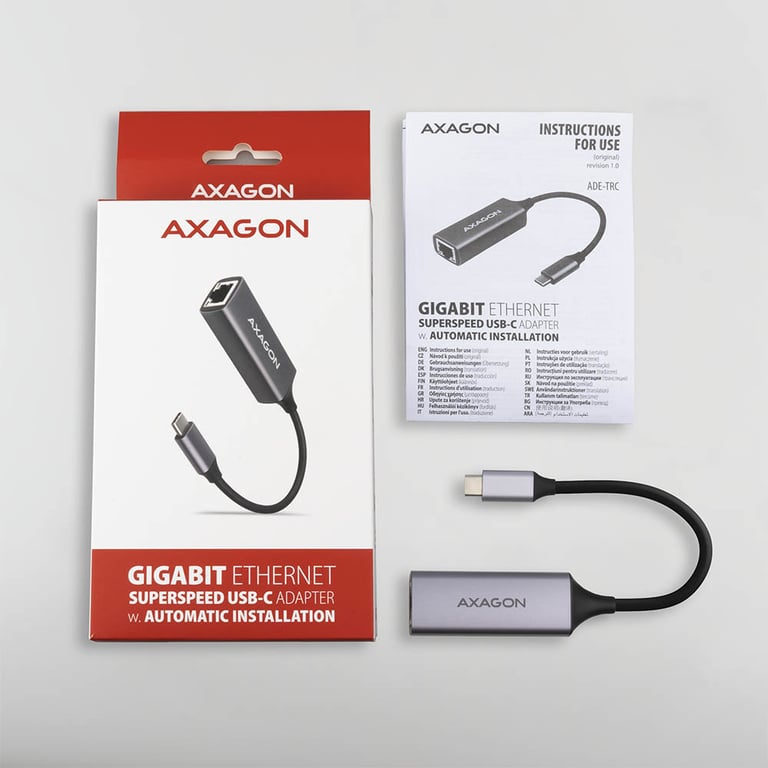

Package Contents
User Manual:
Yes
Logistics data
Country of origin:
Country where the product was manufactured.
China
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, CE
Technical Details
Warranty Period:
2 years
