AXAGON

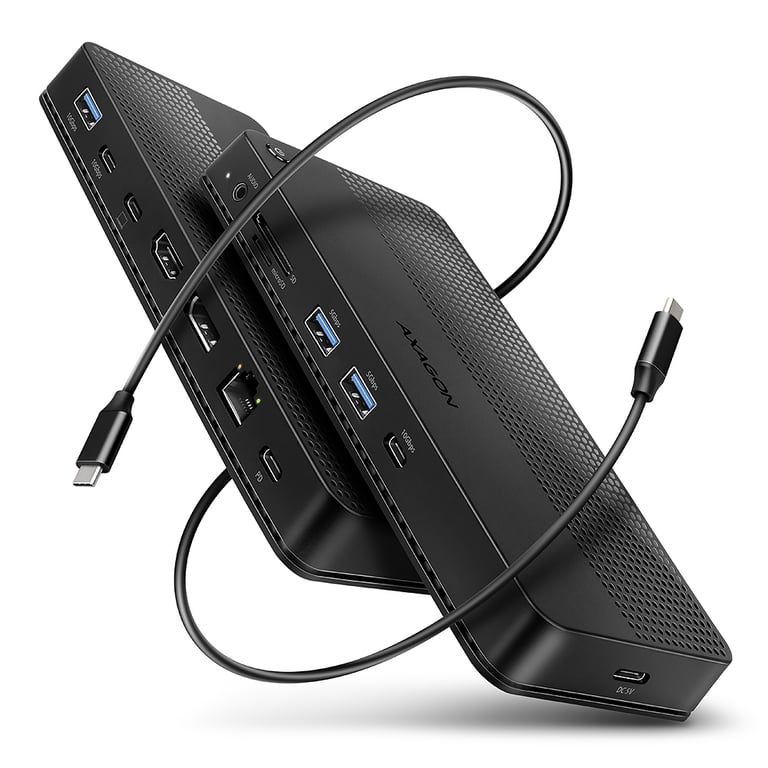

Axagon HMC-U4 Wired USB4 Docking Station, Black
Wired
Host interface: USB4
USB Power
Wired LAN 10, 100, 1000 Mbit/s Wake-On-LAN feature
Specification
Data Transfer
Compatible with Jumbo Frames:
Yes
Audio
Built-in microphone:
A microphone built into the device.
No
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Data transfer speed:
The speed at which data can be transmitted to MC, expressed in units per second, may vary depending on the network configuration.
40 Gbit/s
Support for on-the-fly integration:
Opis funkcji wsparcia hot-plug dla produktu
Yes
Brand Compatibility:
Is this product intended for use with products from a specific brand?
Universal
Loading function:
Yes
Certificates:
CE, RoHS
Display
Maximum refresh rate:
360 Hz
High Dynamic Range (HDR) support:
Yes
Data storage medium
Integrated card reader:
A card reader is a device that allows you to read and, in some cases, write data to and from a memory card.
Yes
Supported memory card types:
Types of memory cards that can be used with this device.
MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Funkcja Wake-On-LAN:
Yes
Video
HD Type:
Type of high-definition supported (e.g., Full HD, 4K Ultra HD).
8K Ultra HD
Multimedia
Built-in speakers:
The device has a built-in speaker.
No
Ports and Interfaces
Host interface:
Product Host Interface Description
USB4

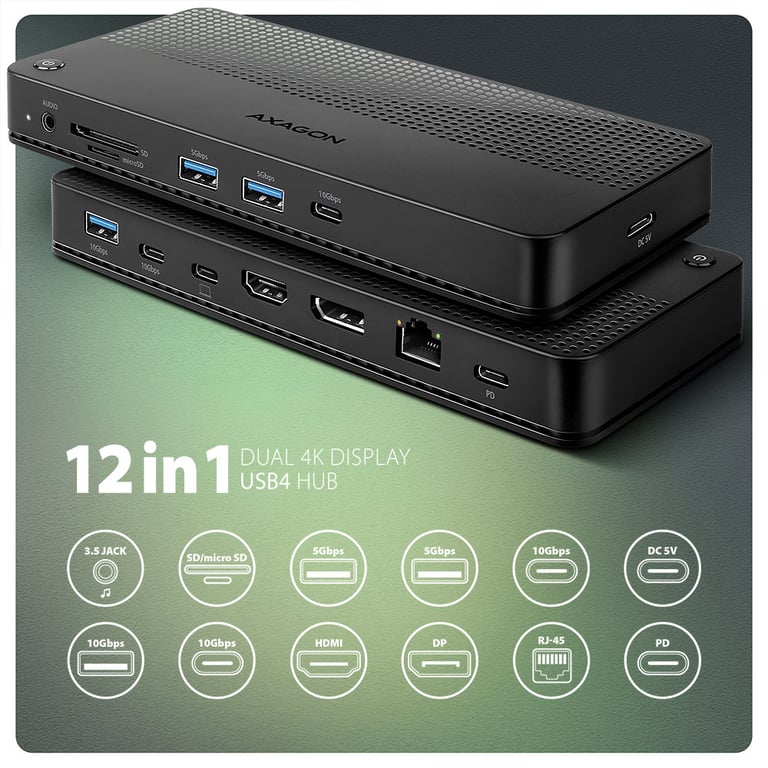

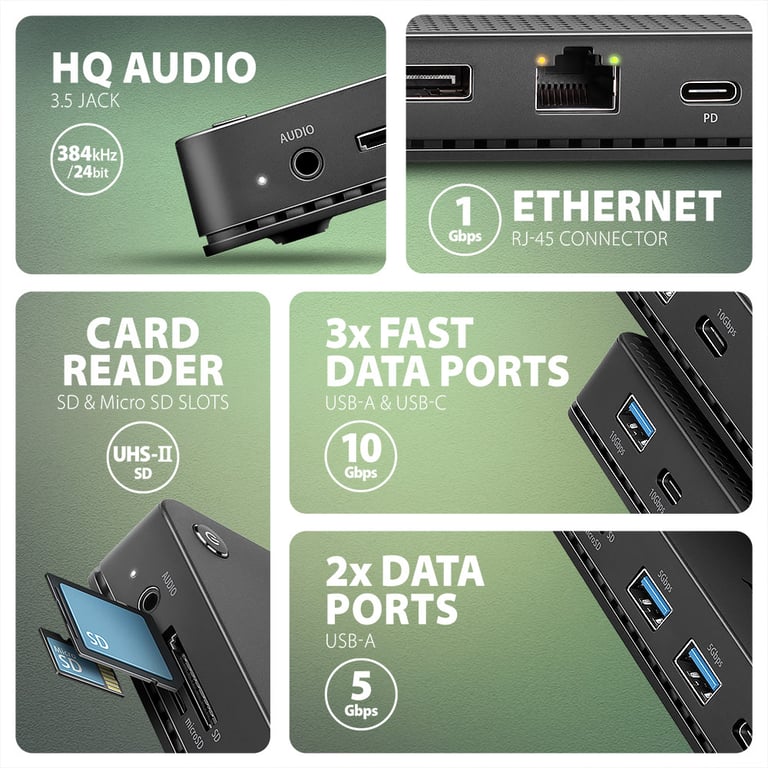

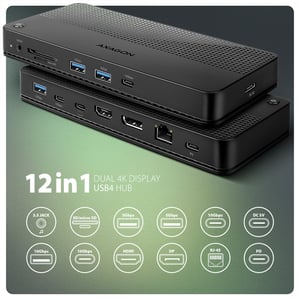

Hub interfaces:
A hub is a device used to connect multiple devices to each other. The hub interface is where devices are connected via input/output ports.
3.5mm, DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of protection against the copying of digital audio and video content during transmission
Yes
HDCP version:
1.4/2.3
Headphone outputs:
Number of headphone jacks/ports.
1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports:
Number of USB 3.1 (3.1 Gen 2) ports with a Type-C connector. USB 3.1 (3.1 Gen 2) is a USB interface version that supports transfer rates of up to 10 Gbit/s (SuperSpeed+). The USB Type-C connector features a symmetrical design and is compatible with the Thunderbolt 3 interface.
2
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports:
1
Headset/microphone port:
Yes
Headphone jack:
How to connect headphones to a device, e.g., wirelessly or using a cable with the appropriate connector.
3.5 mm
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:
2
DisplayPort Alternate Mode via USB Type-C:
Yes

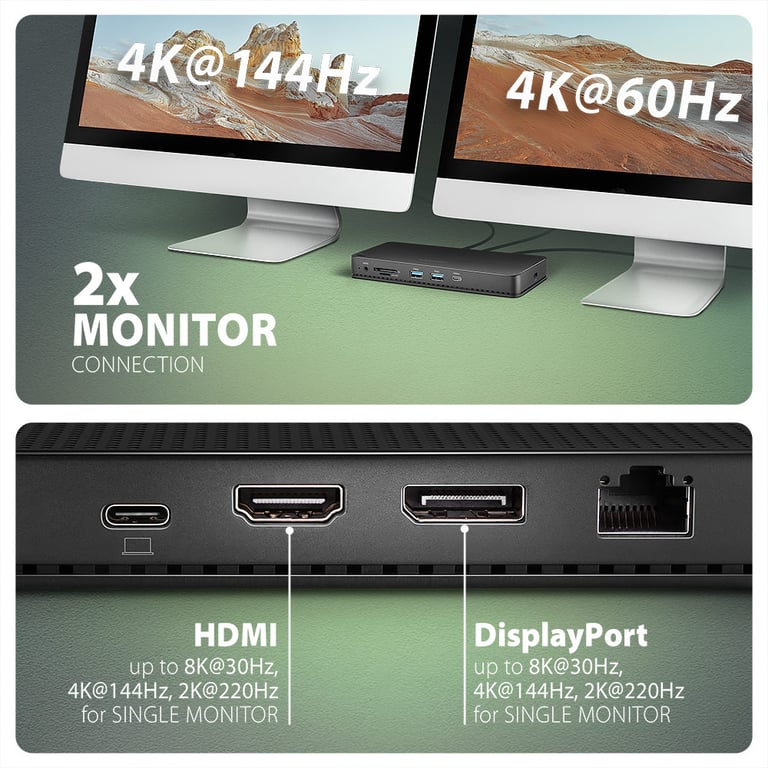

Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
HDMI version:
2.3
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of DisplayPorts:
Number of DisplayPort ports. DisplayPort is a universal digital interface developed by VESA (Video Electronics Standards Association). The interface is used to connect a video source to a display, such as a computer, but it can also be used to transmit audio, USB data, and other data.
1

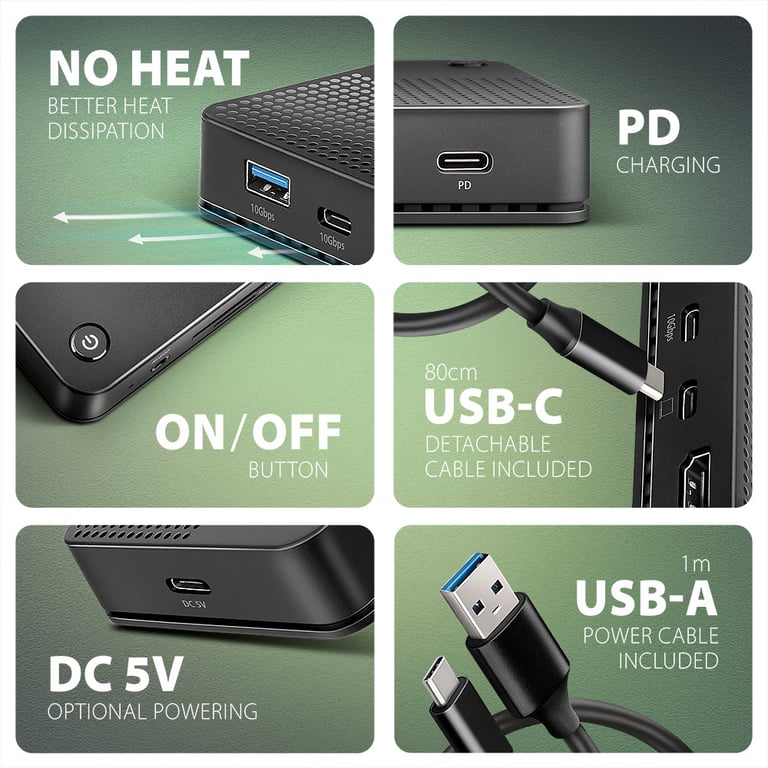

Power connector:
USB Type-C
Performance
Supported mobile operating systems:
Operating systems, such as Android and iOS, that can be used with this device.
Yes

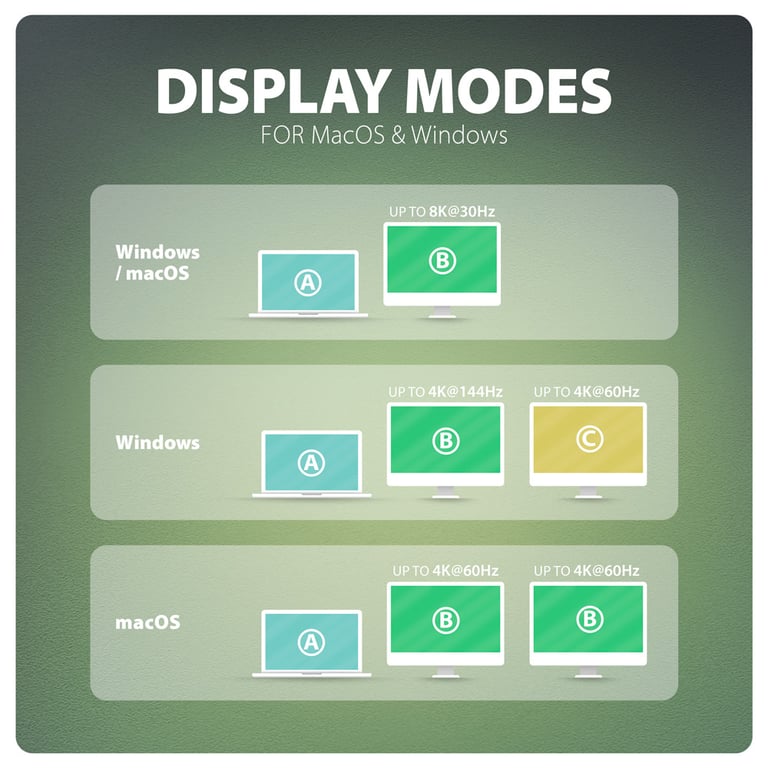

Maximum digital resolution:
7680 x 4320 px
USB Power Delivery version:
3.0
Structure
Built-in switch:
A button that turns the device on or off when pressed.
Yes
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
Power Source:
Type of energy source.
USB
USB Power:
Yes

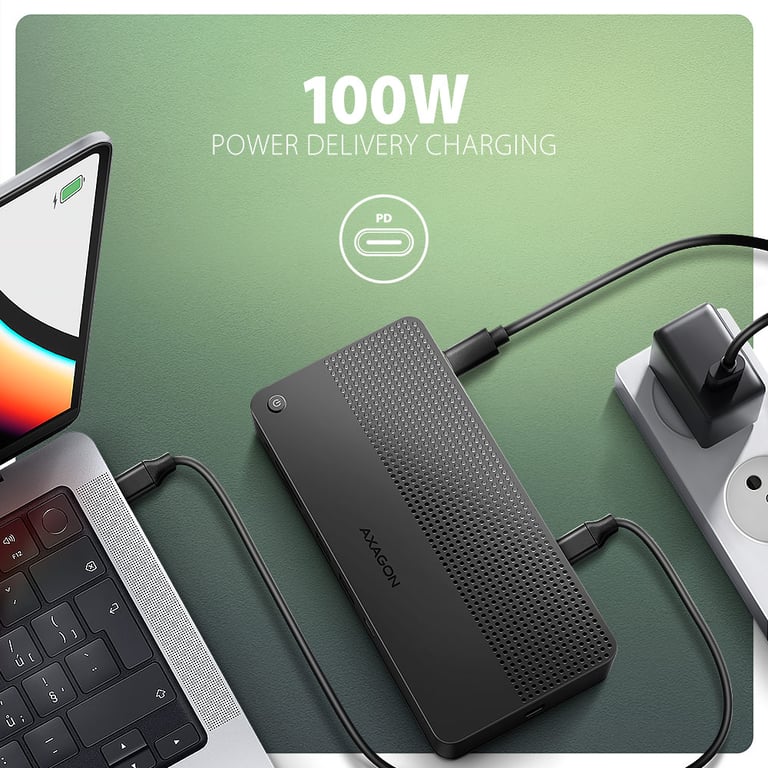

Maximum USB power:
100 W
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 11
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Yes
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Supported server operating systems:
Yes
Other supported operating systems:
Yes
Ergonomics
Plug & Play support:
Indicates whether a given product supports the "plug & play" feature. Plug & play refers to a type of device or software that can be used immediately after being connected, as opposed to devices or software that require configuration.
Yes
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
164 g
Product depth:
Distance from the front to the back of the item.
80 mm
Product height:
Product height.
20 mm
Product width:
Width measurement.
188 mm
Packaging data
USB cable length:
0.8 m
Weight including packaging:
Weight of the packaged product in grams.
460 g
Package width:
The distance from one side of the package to the other.
225 mm
Package depth:
Distance from the beginning to the end of the package.
135 mm
Package height:
Distance from the top to the bottom of the package.
49 mm
Phone features
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes

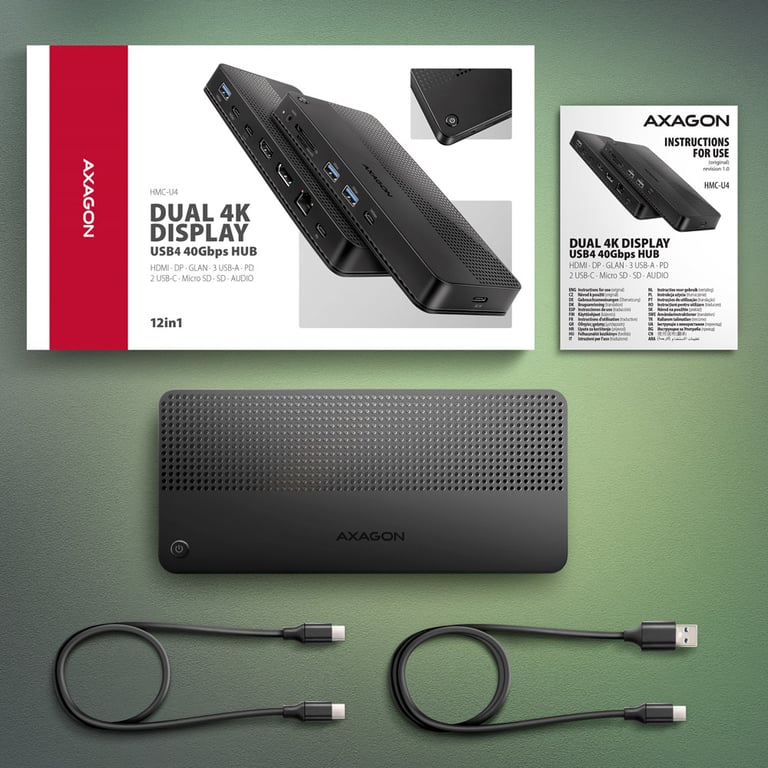

Package Contents
Quantity per package:
1 item
Cables:
USB Type-C to USB Type-A, USB Type-C to USB Type-C
User Manual:
Yes
Rubber feet:
Yes
Cooling
Built-in fan:
No
Logistics data
Country of origin:
Country where the product was manufactured.
China
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Technical Details
Warranty Period:
2 years
