Axagon PCEM2-1U Internal M.2 Adapter
Internal
Host interface: PCIe
Output interface: M.2
NVMe TRIM Support
Axagon PCEM2-1U Internal M.2 Adapter

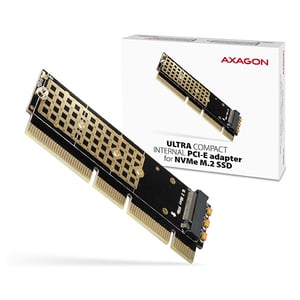

The AXAGON PCEM2-1U internal adapter allows you to connect an M.2 SSD to a desktop computer via the PCI-Express bus.
The adapter’s thoughtful design and ultra-compact dimensions make it easy to use in a desktop computer that does not have an M.2 slot. The card is also ideal for a 1U rack server and a low-profile cabinet. Its unique design allows it to be used not only in x16 slots, but also in x4 and x8 slots.
The adapter supports M.2 NVMe (PCI-Express) SSDs, both single-sided and double-sided. There is no limit on SSD capacity, and M.2 cards up to 22x80 mm in size can be used. Thanks to the 4-lane PCI-Express 3.0 interface, speeds of up to 8 GBps can be achieved.
Heat-conducting pads and copper ventilation holes help dissipate heat generated during the operation of M.2 SSDs. An LED indicator signals connection and data transfer.
Input:
• PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
• 4-Lane, compatible with PCIe x4 / x8 / x16 slots.
• 4-lane PCI-Express 3.0 bus bandwidth of up to 8 GB/s (in both directions).
Output:
• 75-pin M-key NGFF slot for installing an NVMe (PCI-Express) M.2 SSD.
Additional features:
• Full Plug and Play support.
• Supports M.2 drives with dimensions of 2230, 2242, 2260, and 2280 mm.

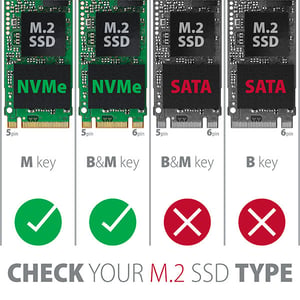

• Support for M-key or B+M-key NVMe (PCI Express) SSDs with an M.2 connector, with no maximum capacity limit.
• Support for single-sided and double-sided M.2 drives.
• Improved heat dissipation thanks to copper ventilation holes and heat-conductive pads.
• Support for booting from an SSD.
• Can be used in 1U rack servers.
• Dimensions: 90 x 22 x 5 mm; weight: 10 g.
• No driver installation is required.
Power supply:
• The adapter is powered directly from the PCI-Express bus; no external power supply is required.
Supported operating systems:
• MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions of Windows OS are supported), Linux with kernel 2.6.31 or later.
• Note: If you are using Windows 7, check with the manufacturer of your M.2 SSD to confirm that it supports this operating system.
The package includes:
• PCI-Express adapter,
• 1 heat-conductive pad
• assembly hardware and a screwdriver,
• Printed user manual in EN/CZ/DE/ESP/FR/HU/IT/PL/RO/RU/SK/BG,
• Packaged in a cardboard box.
The adapter’s thoughtful design and ultra-compact dimensions make it easy to use in a desktop computer that does not have an M.2 slot. The card is also ideal for a 1U rack server and a low-profile cabinet. Its unique design allows it to be used not only in x16 slots, but also in x4 and x8 slots.
The adapter supports M.2 NVMe (PCI-Express) SSDs, both single-sided and double-sided. There is no limit on SSD capacity, and M.2 cards up to 22x80 mm in size can be used. Thanks to the 4-lane PCI-Express 3.0 interface, speeds of up to 8 GBps can be achieved.
Heat-conducting pads and copper ventilation holes help dissipate heat generated during the operation of M.2 SSDs. An LED indicator signals connection and data transfer.
Input:
• PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
• 4-Lane, compatible with PCIe x4 / x8 / x16 slots.
• 4-lane PCI-Express 3.0 bus bandwidth of up to 8 GB/s (in both directions).
Output:
• 75-pin M-key NGFF slot for installing an NVMe (PCI-Express) M.2 SSD.
Additional features:
• Full Plug and Play support.
• Supports M.2 drives with dimensions of 2230, 2242, 2260, and 2280 mm.
• Support for M-key or B+M-key NVMe (PCI Express) SSDs with an M.2 connector, with no maximum capacity limit.
• Support for single-sided and double-sided M.2 drives.
• Improved heat dissipation thanks to copper ventilation holes and heat-conductive pads.
• Support for booting from an SSD.
• Can be used in 1U rack servers.
• Dimensions: 90 x 22 x 5 mm; weight: 10 g.
• No driver installation is required.
Power supply:
• The adapter is powered directly from the PCI-Express bus; no external power supply is required.
Supported operating systems:
• MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions of Windows OS are supported), Linux with kernel 2.6.31 or later.
• Note: If you are using Windows 7, check with the manufacturer of your M.2 SSD to confirm that it supports this operating system.
The package includes:
• PCI-Express adapter,
• 1 heat-conductive pad
• assembly hardware and a screwdriver,
• Printed user manual in EN/CZ/DE/ESP/FR/HU/IT/PL/RO/RU/SK/BG,
• Packaged in a cardboard box.
Specification
Mouse
Purpose:
Product usage.
PC
Features
TRIM Support:
Yes
Certificates:
CE, RoHS
Data storage medium
NVMe:
NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to take advantage of the low latency and internal parallelism of solid-state storage devices.
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
PCIe
Host interface gender:
Men's
Output interface:
Socket for connecting connectors.
M.2
Size of the expansion card slot:
Low-profile
Extension Card Standard:
PCIe 4.0
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
Yes
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Yes
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Yes
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Supported server operating systems:
Yes
Ergonomics
Plug & Play support:
Indicates whether a given product supports the "plug & play" feature. Plug & play refers to a type of device or software that can be used immediately after being connected, as opposed to devices or software that require configuration.
Yes
Extension slots
Number of M.2 (M) slots:
1
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
10 g
Product depth:
Distance from the front to the back of the item.
5 mm
Product height:
Product height.
22 mm
Product width:
Width measurement.
90 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
48 g
Package width:
The distance from one side of the package to the other.
130 mm
Package depth:
Distance from the beginning to the end of the package.
100 mm
Package height:
Distance from the top to the bottom of the package.
30 mm
Package type:
Product packaging type, e.g., box.
Box
Package Contents
Quantity per package:
1 item
User Manual:
Yes
Logistics data
Country of origin:
Country where the product was manufactured.
China
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, CE
Technical Details
Warranty Period:
2 years
