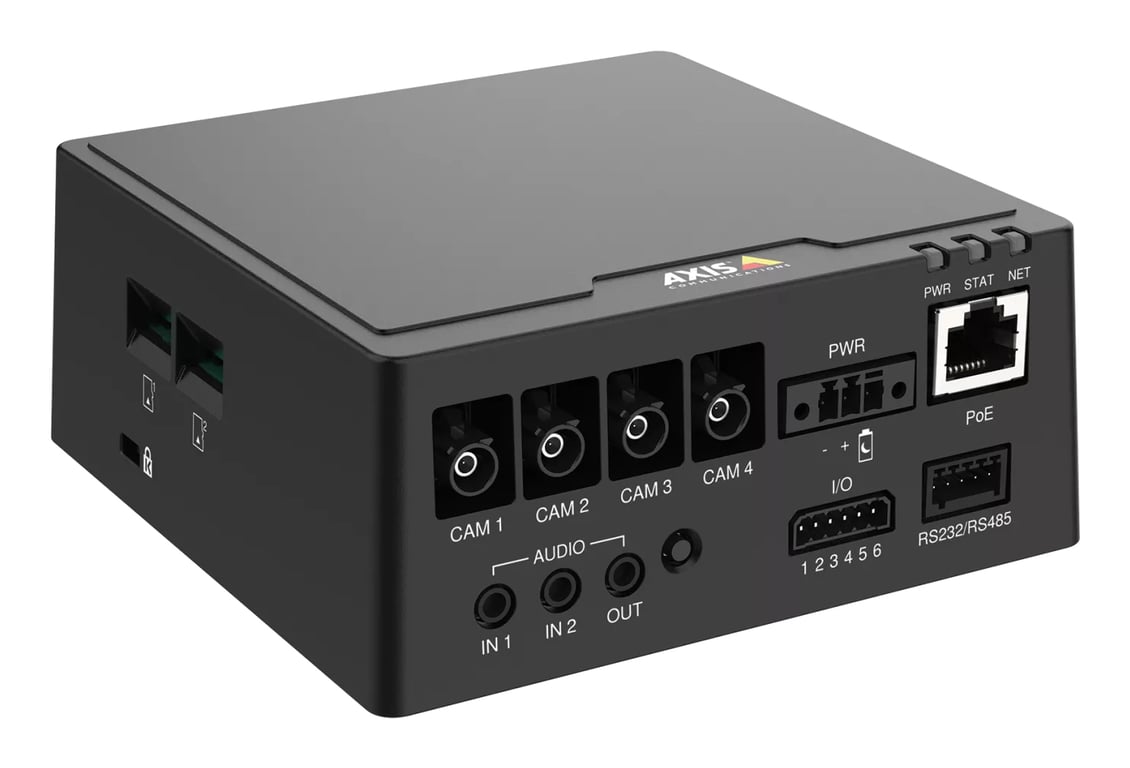

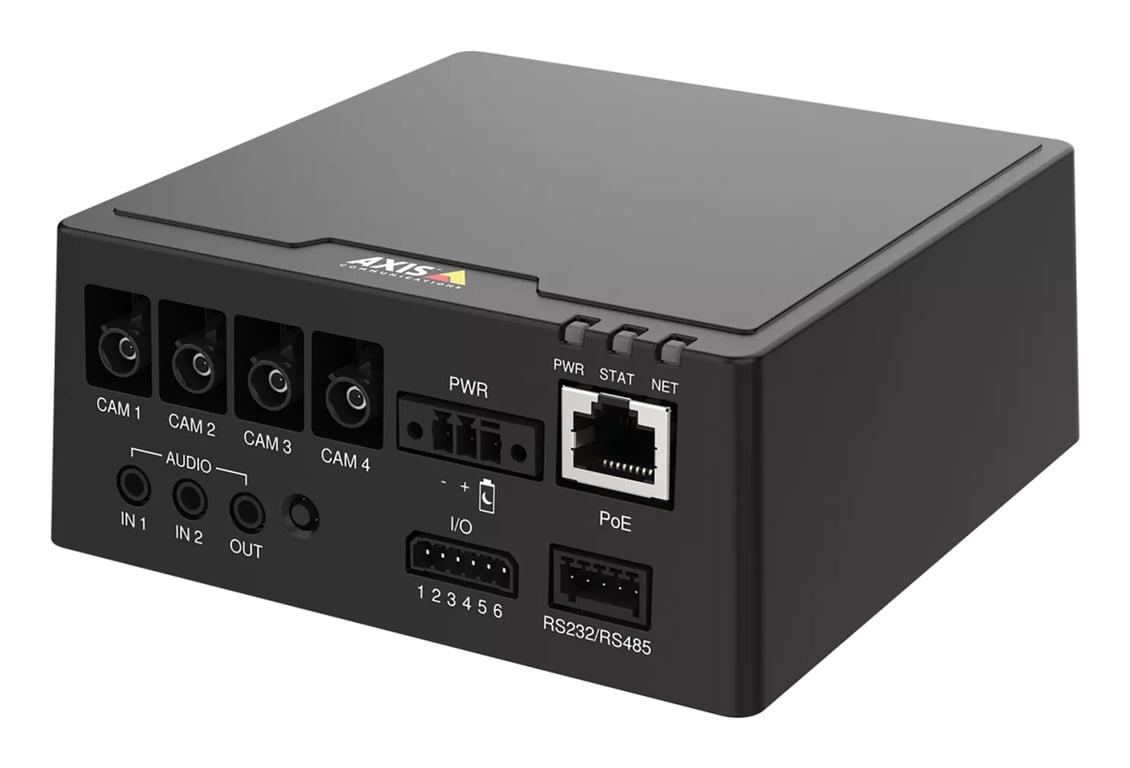

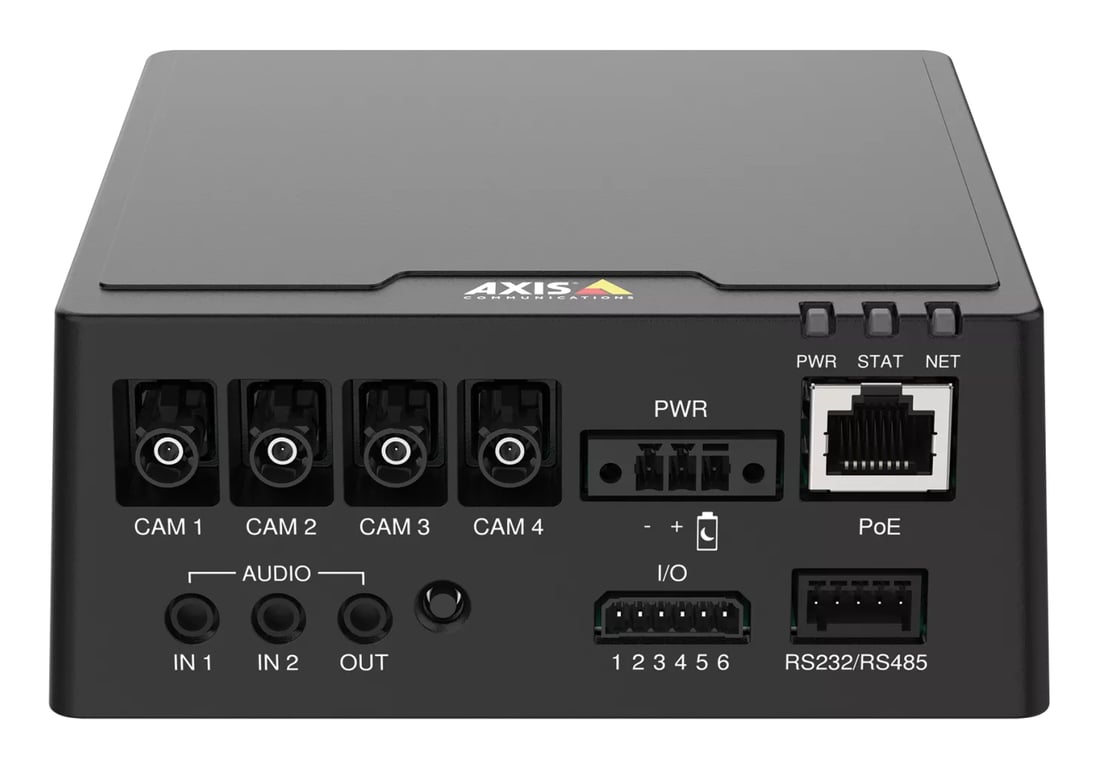

Axis F9114 4-channel 3840 x 2160 px
Specification
Features
Cabling technology:
Type of cable technology performance; taking into account the fiber or cable type.
10/100/1000BaseE-T(X)
Audio connector type:
3.5 mm (1/8")
Number of channels:
The number of channels the device has. Each channel may have a separate input or output.
4 channels.
Certificates:
EMC: CISPR 24, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EAC, ECE R10 rev. 05; Safety: IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1; Environment: IEC/EN 60529 IP3X, IEC/EN 61373, NEMA TS 2; Cybersecurity: ETSI EN 303 645, BSI IT Security Label, FIPS-140
Security
Alarm input channels:
4
Alarm output channels:
4
Data storage medium
Internal storage capacity:
The amount of data that can be stored on the device.
0.5 GB
Camera
Maximum frames per second:
Maximum frames per second. This is the rate at which successive static images appear on the screen. This term applies to cameras, video cameras, computer graphics software, and motion capture systems. The frequency is usually expressed in frames per second (fps) or in hertz (Hz) for progressive scan.
30 fps
Network
Supported network protocols:
Network protocols tested and compatible with this product
IPv4, IPv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, RTCP, DHCP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at
Supported browsers:
List of supported browsers for this product.
Chrome, Firefox, Edge, Safari
Live preview:
Yes
Video
Maximum video resolution:
Maximum video resolution. Resolution is a measure of the level of detail in an image.
3840 x 2160 px
Hard drive
Storage media type:
Type of storage medium, such as flash memory, hard drive, etc.
Flash
Processor
Embedded processor:
Whether or not a processor is built into the device.
Yes
Management Features
Management via the website:
Using a web application to manage specific tasks.
Yes
Multimedia
Supported audio formats:
Audio file formats supported by the device or program, e.g., MP3, MP4.
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS
Supported video file formats:
Video formats supported by the device.
H.264, H.265
Ports and Interfaces
Port RS-232:
Number of RS-232 ports. The RS-232 serial port was once a standard feature of personal computers, used for modems, printers, mice, uninterruptible power supplies, and other peripheral devices. Today, this port has largely been replaced by USB and other ports.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
DC output jack:
Connecting the device to a power source.
Yes
Performance
Internal storage capacity:
Amount of storage, measured in megabytes, installed on the device's hard drive
2048 MB
Photo:
Yes
Language Support:
Help and support for multiple languages.
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish
Structure
Case material:
The material the product's casing is made of.
Aluminum
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
AC adapter output current:
3.5 A
PoE Support:
The device supports Power over Ethernet (PoE), a technology that transmits electrical power via Ethernet cables to network-connected peripheral devices. This allows both data and electrical power to be transmitted to devices such as wireless access points or IP cameras via a single cable.
Yes
Maximum power consumption:
The maximum amount of power the device consumes.
25.5 W
Ergonomics
LEDs:
Status
Indoor unit
Porty RS-485:
1
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
675 g
Product depth:
Distance from the front to the back of the item.
120 mm
Product height:
Product height.
51 mm
Product width:
Width measurement.
120 mm
Package Contents
Quantity per package:
1 item
User Manual:
Yes
Sustainable Development
Does not include:
PCW
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-40 to 60 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-40 to 65 °C
Relative humidity range:
10 - 95%
Permissible relative humidity:
5 - 95%
Certificates
Waste Electrical and Electronic Equipment (WEEE) Disposal:
Yes
Technical Details
Warranty Period:
5 years
