BROADCOM

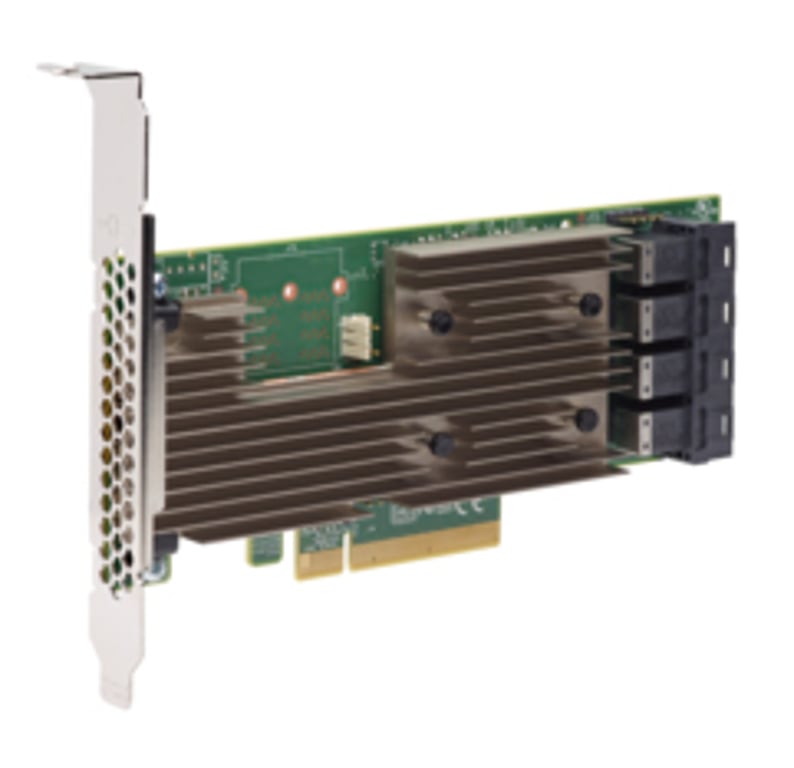

Broadcom 9305-16i Internal PCIe Mini-SAS Adapter
Internal
Host interface: PCIe
Output interface: PCIe, Mini-SAS
12 Gbit/s
Specification
Network
Flow control support:
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
PCIe
SCSI interface:
SATA
Output interface:
Socket for connecting connectors.
PCIe, Mini-SAS
Size of the expansion card slot:
Low-profile
Extension Card Standard:
PCIe 3.0
External mini-SAS ports:
4
Features
Data transfer rate (max):
12 Gbit/s
Case color:
Color of the protective case or cover.
Green
Bandwidth:
1,2 Gbit/s
Computer system
Other supported operating systems:
FreeBSD, Solaris 8, Solaris 9
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
Yes
Product color:
Color, e.g., red, blue, green, black, white.
Aluminum, Black, Green
Performance
Certificates:
USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438) ; Japan (VCCI V-3);
Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Yes
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
16,2 W
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0 - 55 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-45 - 105 °C
Relative humidity range:
5 - 90%
Other features
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
3500000 h
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
CentOS 5.1, CentOS 5.2, CentOS 5.8, CentOS 6.2, CentOS 7.0, Debian 5.0, Debian 5.0.1, Debian 5.0.2, Debian 5.0.3, Debian 6.0, Debian 7.0, Debian 8.0, Fedora 10, Fedora 11, Fedora 12, Fedora 13, Fedora 14, Fedora 15, Fedora 18, Fedora 6, Fedora 7, Fedora 8, Fedora 9, FreeBSD 6.3, FreeBSD 7.0, Oracle Linux 5.8, Oracle Linux 6.2, Oracle Linux 7.0, Red Hat Enterprise Linux 3 U9, Red Hat Enterprise Linux 4.0 U5, Red Hat Enterprise Linux 4.0 U6, Red Hat Enterprise Linux 4.0 U7, Red Hat Enterprise Linux 5.0, Red Hat Enterprise Linux 5.1, Red Hat Enterprise Linux 5.2, Red Hat Enterprise Linux 5.3, Red Hat Enterprise Linux 6.0, Red Hat Enterprise Linux 7.0, SUSE Linux 10, SUSE Linux 10.2, SUSE Linux 10.3, SUSE Linux 11, SUSE Linux 11.1, SUSE Linux 11.2, SUSE Linux 12.0, SUSE Linux 9.3
Logistics data
Harmonized System (HS) code:
84733020
Technical Details
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
