BROADCOM

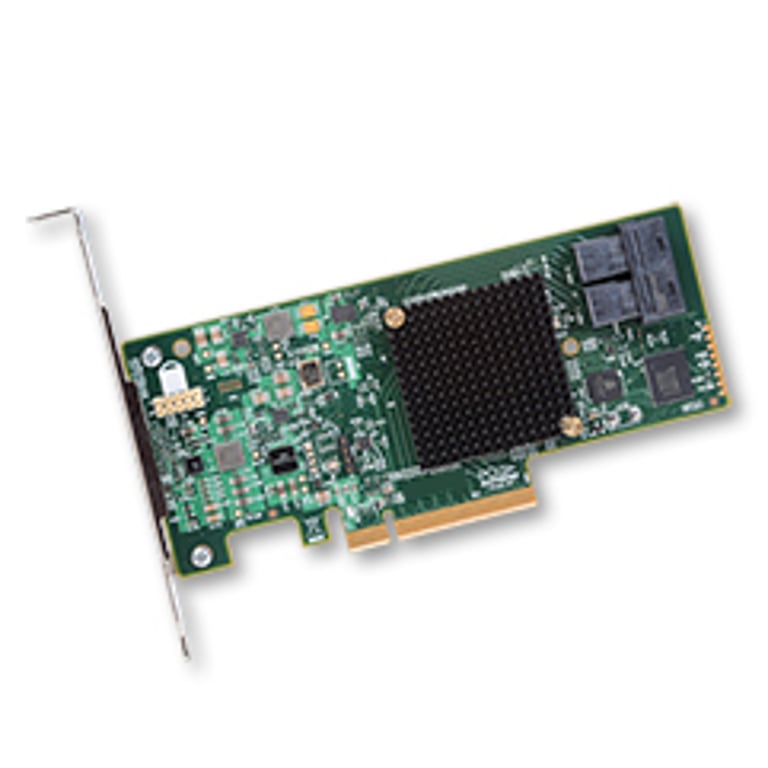

Broadcom SAS 9300-8i Internal SAS, SATA Adapter
Internal
Host interface: PCIe
Output interface: SAS, SATA
12 Gbit/s
Specification
Processor
Processor model:
The model number of the computer's processor.
LSI SAS3008
Camera
Embedded processor:
Whether or not a processor is built into the device.
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
PCIe
Output interface:
Socket for connecting connectors.
SAS, SATA
API(s):
2 x Mini SAS HD SFF8643
Features
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
8 x SAS & SATA Internal
Data transfer rate (max):
12 Gbit/s
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
Yes
Product color:
Color, e.g., red, blue, green, black, white.
Green, Gray
Performance
Certificates:
EMC: Class B-US (CFR 47, P15B); ICES-00; V-3/02.04; EN55022/EN55024; AS/NZS 3548; N-B 2-0001-404;
EN60950; WEEE
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Yes
Power
Voltage:
3.3, 12 V
Weight and Dimensions
Product width:
Width measurement.
66 mm
Product depth:
Distance from the front to the back of the item.
152,4 mm
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0 - 55 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-45 - 105 °C
Relative humidity range:
5 - 90%
Other features
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
2800000 h
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Logistics data
Harmonized System (HS) code:
84733020
Technical Details
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
