DAHUA TECHNOLOGY

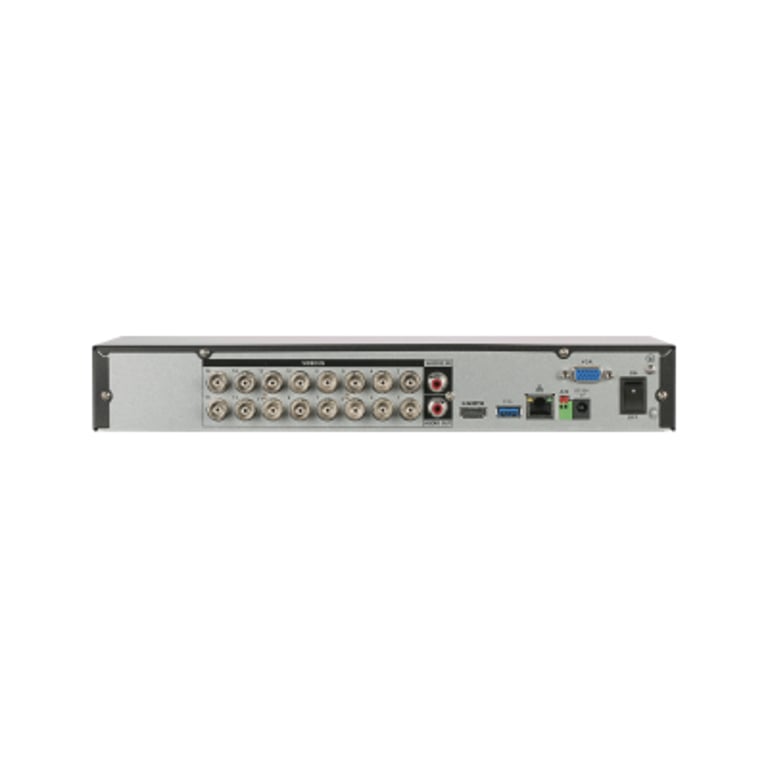

Dahua Technology XVR5116H-4KL-I3 kamera cyfrowa Czarny
3840 x 2160 px Number of channels: 16 ch.
Video motion detector
60 fps
USB connection Wired LAN
Specification
Audio
Audio input channels:
A channel is an electrical circuit used to transmit audio signals. It allows the signal to be transmitted to another device.
1 channel.
Audio output channels:
An audio output channel is an electrical circuit that serves as a path for the signal generated by a device. A device may have several audio output channels.
Version 1.0.
Audio system:
A system for playing music or speech.
2-way
Features
Frame capacity:
Describes the rack capacity in units (U)
1U
Number of channels:
The number of channels the device has. Each channel may have a separate input or output.
16 channels.
Security
Video motion detector:
Yes
Motion sensor:
A device that detects moving objects, especially people. A motion sensor is often a component of a system that automatically performs a task or notifies the user of movement in a given area. Motion detectors are an essential component of security systems, lighting control systems, energy-saving systems, and other systems.
Yes
Camera
Maximum frames per second:
Maximum frames per second. This is the rate at which successive static images appear on the screen. This term applies to cameras, video cameras, computer graphics software, and motion capture systems. The frequency is usually expressed in frames per second (fps) or in hertz (Hz) for progressive scan.
60 fps
Video capture speed:
30 fps
Playback mode:
Instant, General, Event, Tag, Smart
Network
Supported network protocols:
Network protocols tested and compatible with this product
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Ethernet interface type:
Gigabit Ethernet
Video
Maximum video resolution:
Maximum video resolution. Resolution is a measure of the level of detail in an image.
3840 x 2160 px
Compression formats:
H.264, H.264+, H.265, H.265+
Video streaming:
Yes
Hard drive
HDD Interface:
The way a hard drive is connected to the rest of the computer via a bus, such as ATA or SCSI.
SATA
Max. HDD capacity:
16 TB
Processor
Embedded processor:
Whether or not a processor is built into the device.
Yes
Multimedia
Supported audio formats:
Audio file formats supported by the device or program, e.g., MP3, MP4.
G.711 A-law, G.711 μ-law, PCM
Ports and Interfaces
USB connection:
With a high-speed USB 2.0 connection, you can play MP3 files stored on a portable USB drive.
Yes
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
2
VGA (D-Sub) outputs:
1
BNC inputs:
BNC connectors.
16
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:
1
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Performance
Video channel inputs:
The number of video input channels supported by the device.
16 channels.
Backup feature:
A feature designed to handle power outages.
Yes
Video signal loss detection:
Yes
Video resolution (PAL):
25 fps
Video resolution (NTSC):
30 fps
Data transfer speed:
32 Kbit/s
Support for multiple displays:
A computer enables multi-display, which means displaying an image on multiple devices, such as monitors, TVs, and projectors, to increase the available workspace for computer programs.
Yes
Multiple display modes:
1, 4, 8, 9, 16, 25, 36
Support for two streams:
Yes
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
15 W
Power supply type:
Power supply (internal/external) used in the product. PFC = Power Factor Correction. CE = CE-marked and compliant. If multiple values (watts) are listed, this often refers to the low-power range as opposed to the high-power range. Many power supplies are used for redundancy. When an additional power supply is optional, this is indicated by listing the maximum number. Power supplies may be hot-plug or non-hot-plug.
DC
DC voltage:
12 V
Software
Installed operating system:
The type of operating system installed on the device, e.g., iOS for Apple products, Android for other mobile devices.
Embedded Linux
Memory controllers
Number of supported HDDs:
Total number of hard drives that can be used with this device.
1
TV tuner
Analog Signal Format System:
Supported protocols for analog signal exchange.
NTSC, PAL
Indoor unit
Porty RS-485:
1
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
1.23 kg
Product depth:
Distance from the front to the back of the item.
257.1 mm
Product height:
Product height.
55 mm
Product width:
Width measurement.
325 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
2.11 kg
Package width:
The distance from one side of the package to the other.
372 mm
Package depth:
Distance from the beginning to the end of the package.
117 mm
Package height:
Distance from the top to the bottom of the package.
308 mm
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-10 to 55 °C
Relative humidity range:
10 - 90%
