DeLOCK Thermostat with a short-circuit contact for DIN rail mounting
DeLOCK Thermostat with a short-circuit contact for DIN rail mounting

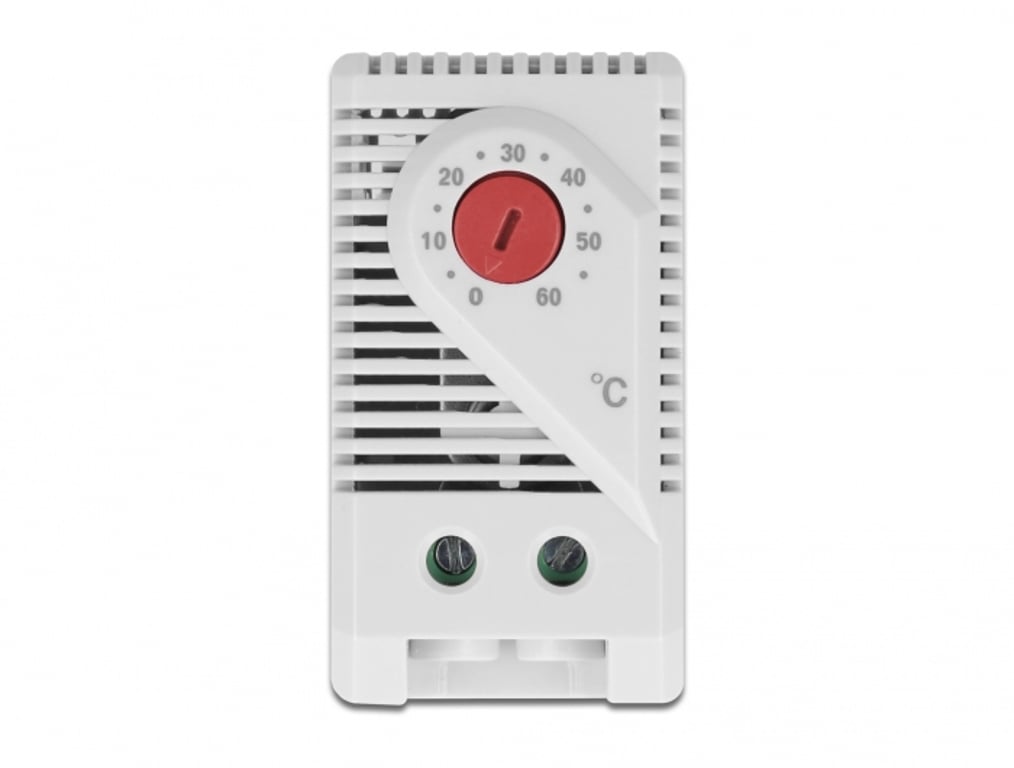

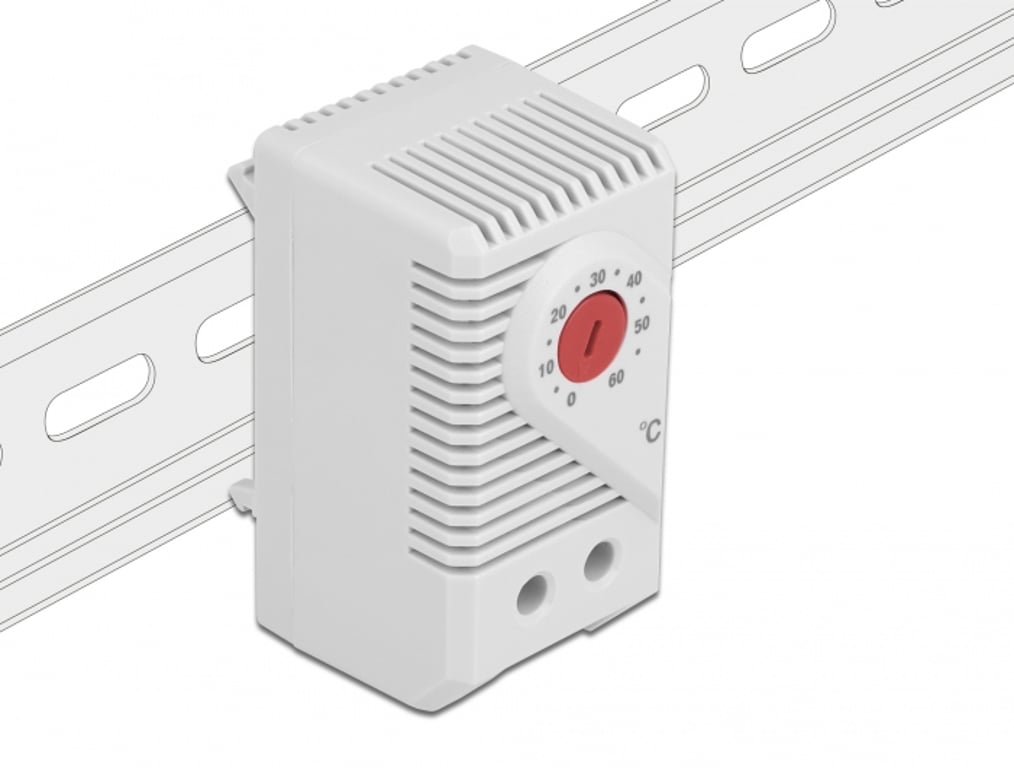

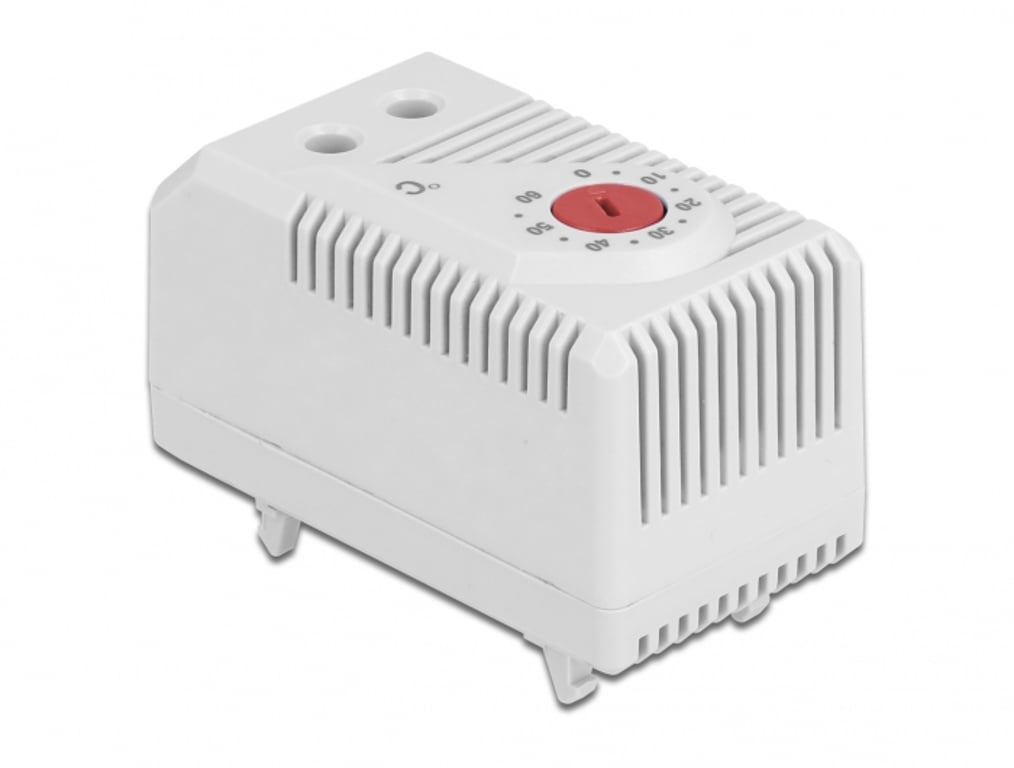

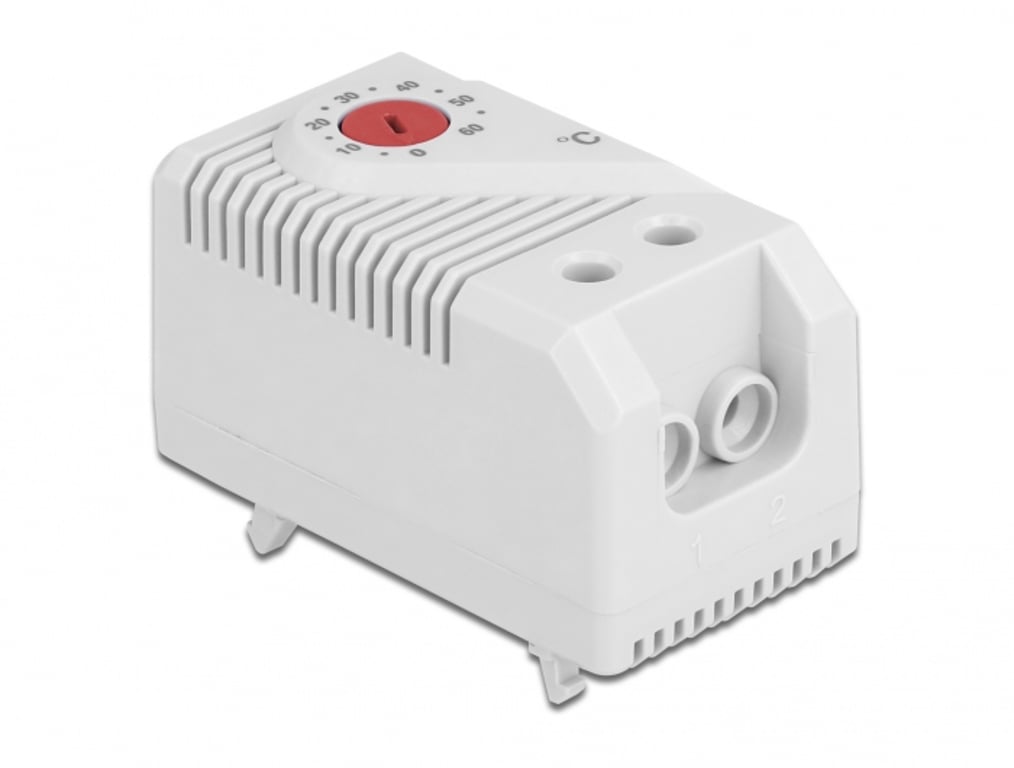

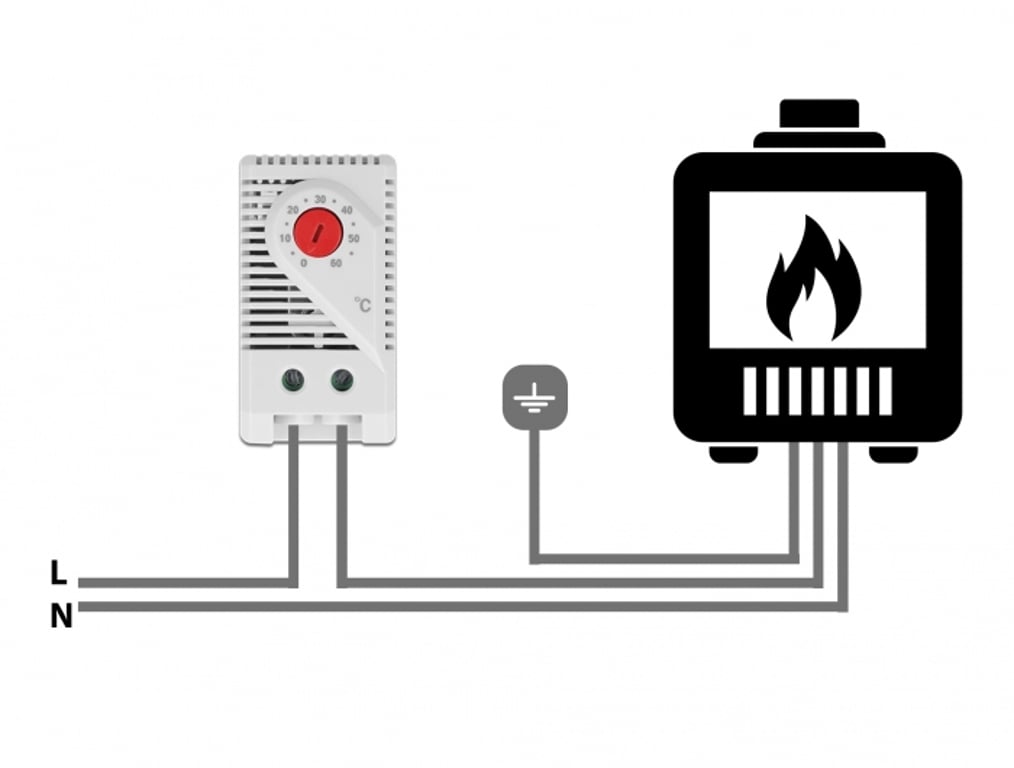

The Delock thermostat can be used to control heating devices or activate signaling devices when the temperature exceeds a set threshold. The contact opens as the temperature rises. Thanks to the integrated mounting bracket on the back, it can be mounted on a 35 mm DIN rail in a control cabinet.
Specification
Features
Smart thermostat:
No
Unit of measurement:
°C
Memory function:
Measurement result storage feature.
No
Manual temperature control:
Yes
Performance
Temperature sensor:
Yes
Structure
Screen type:
Screen technology. Currently, the most popular screen technologies are flat-panel displays, such as Liquid Crystal Display (LCD) and Thin Film Transistor (TFT) active matrix displays.
In TV hardware technologies, you can find FST (Flat Screen Tube), ARASC (Anti-Reflection, Anti-Static Coating), AGARAS (Anti-Glare ARASC), or simply AGC (anti-glare coating). Older TV and display technologies include CRT monitors.
MLA = Micro Lens Array. p-Si = Polycrystalline silicon. a-Si = Amorphous silicon.
No
Check type:
How to operate the device.
Rotating
Case material:
The material the product's casing is made of.
Plastic
Product color:
Color, e.g., red, blue, green, black, white.
Gray, Red
Power
Maximum switching capacity:
30 W
Maximum switching voltage:
250 V
Maximum switching current:
10 A
Weight and Dimensions
Product depth:
Distance from the front to the back of the item.
60 mm
Product height:
Product height.
33 mm
Product width:
Width measurement.
43 mm
Packaging data
Quantity:
Number of products.
1
Package Contents
Remote control included:
Remote Control Function Description
No
User Manual:
Yes
Number of crimp connectors:
2
Durability
IP Protection Rating:
The IP code indicates the degree of protection provided by an electrical apparatus or device against the ingress of external factors. It is published by the International Electrotechnical Commission. The IP code is a system for designating the degree of protection provided by enclosures against access to hazardous parts, the ingress of foreign solid objects, and the ingress of water, as well as a system for providing additional information related to such protection.
IP20
Working Conditions
Temperature control range:
0–60 °C
Accuracy:
5 °C
