DIGITUS
Digitus Home Transfer Point, 3 x LC/APC duplex
Three flexible head holders with weld holders to protect crimped strands
Crossover cable entry protected by a long cover
Recording a PLC distributor
Can be locked using the built-in lock
Digitus Home Transfer Point, 3 x LC/APC duplex
It offers all the features needed for a FTTH broadband project in a compact and elegant housing.
- Extremely compact / variable HÜP
- Multifunctional motherboard
- Various cable entry options

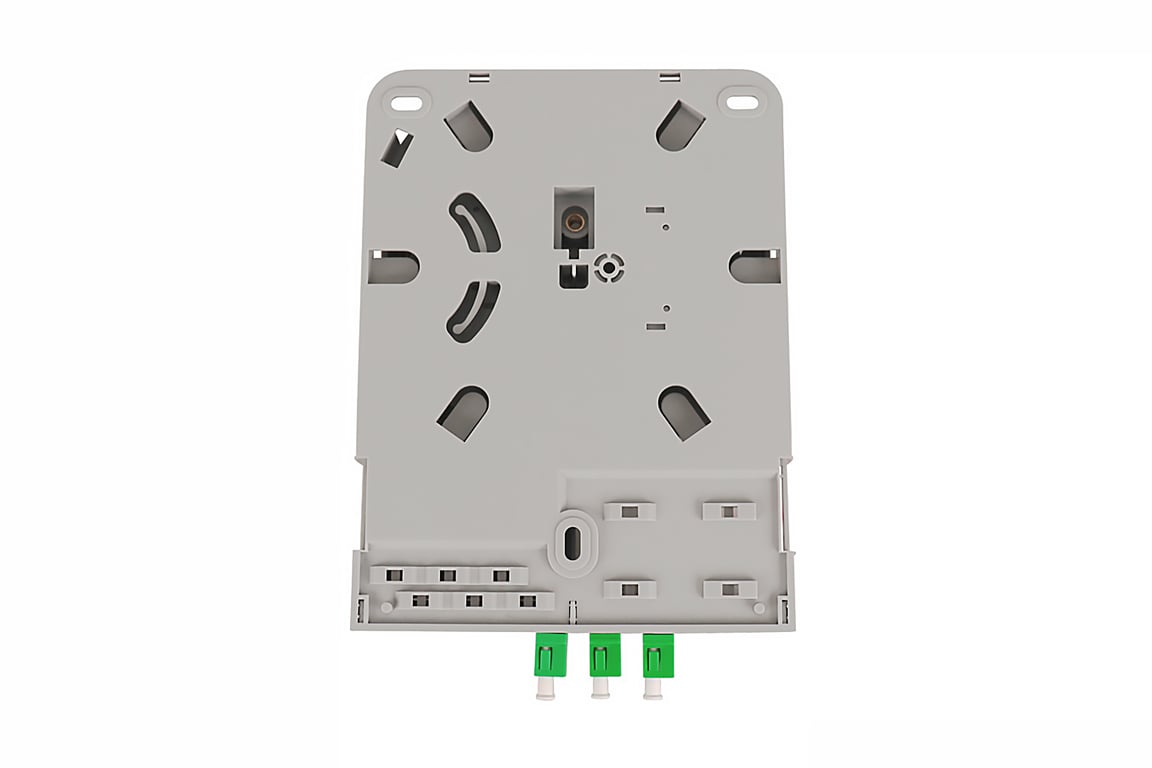

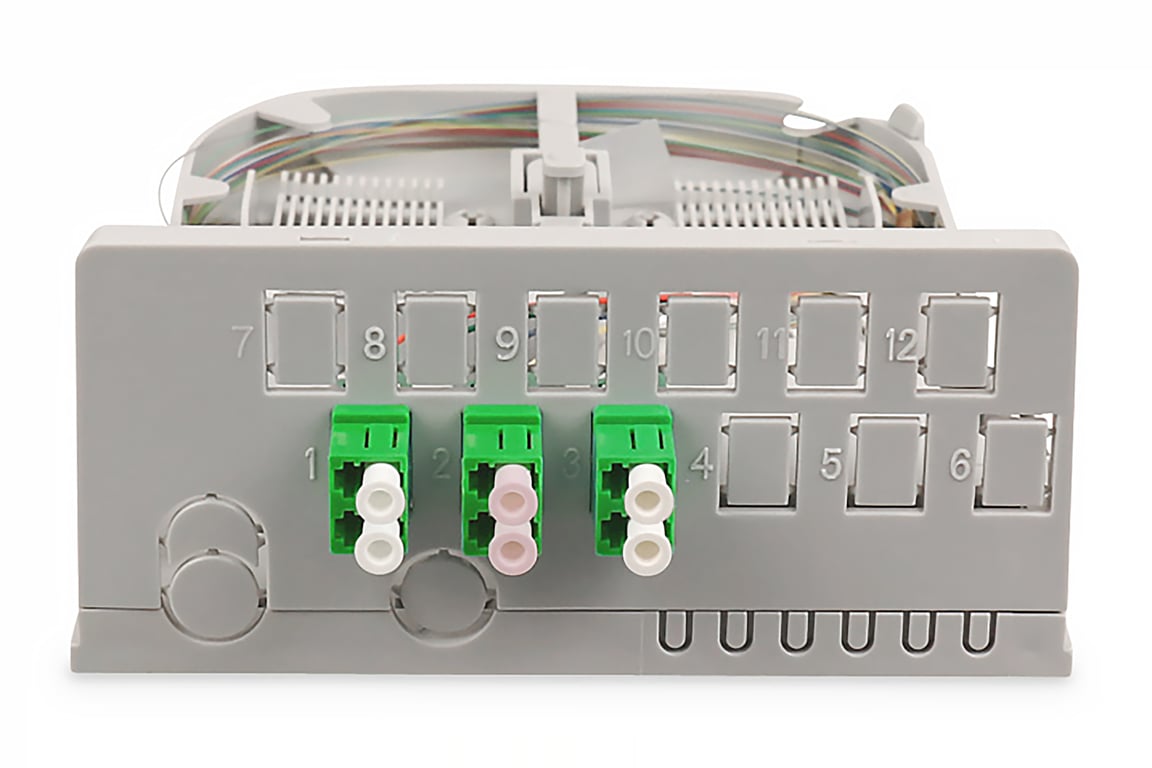

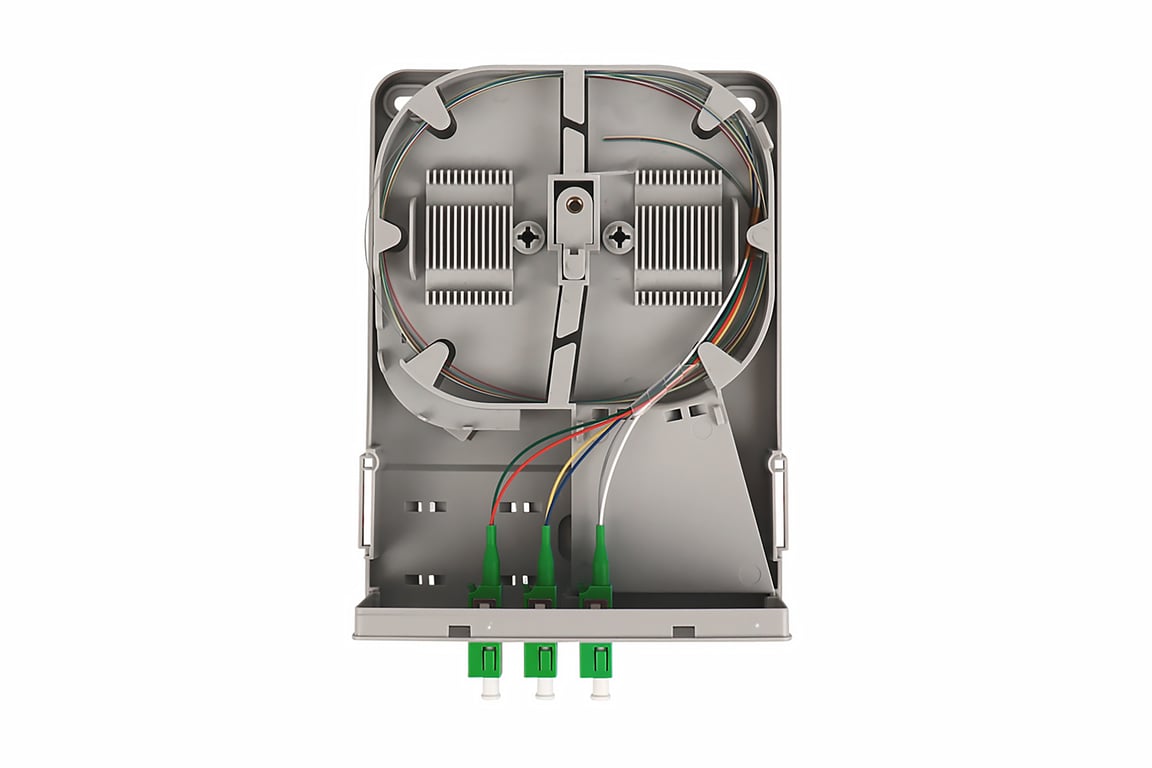

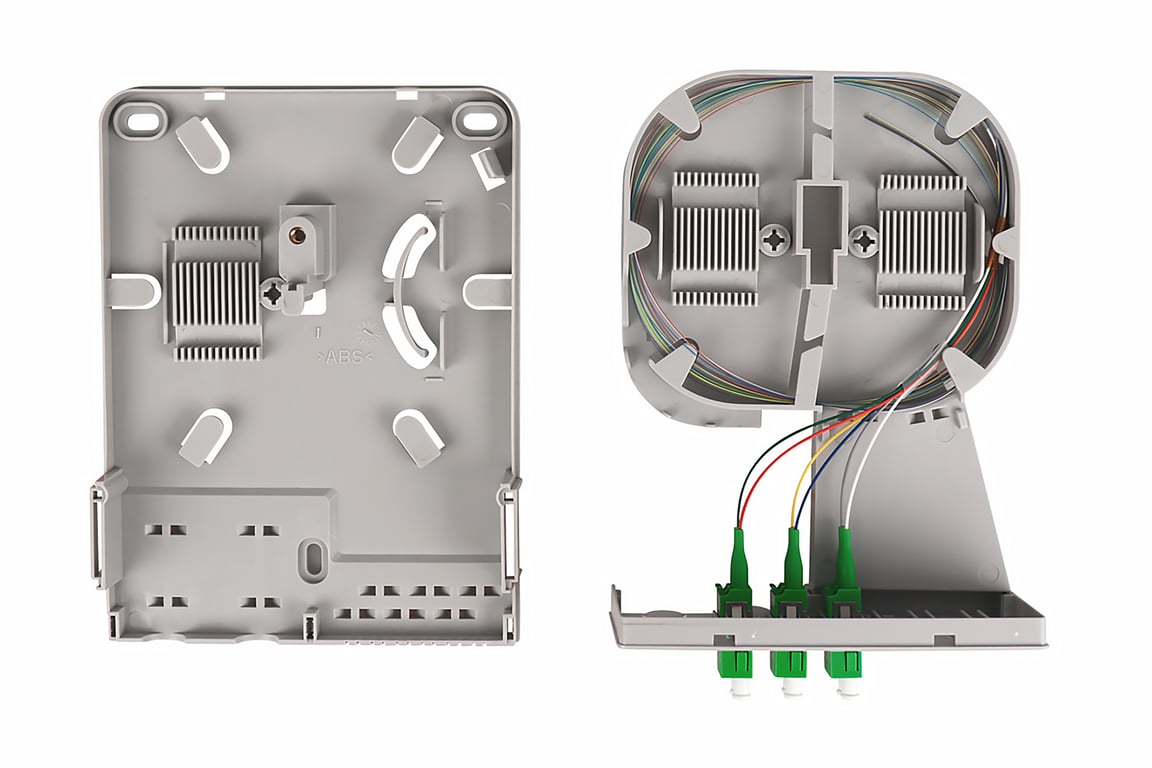

HÜP consists of a 3-part enclosure. The base plate is mounted in the desired location, ensuring unobstructed operation within the switchgear. Intelligent cable routing facilitates cable installation and securing. The base plate also features a PLC distributor mount and various cable entry options. Two cutouts on the base plate allow for the insertion of 7 mm or 12 mm microtubes. The head holder on the base plate provides space for a splice holder, which can be replaced with any splice holder or heat-shrink sleeve. The space on the base plate and the crimping holder can be used for a through-splicing configuration. The second mounting point includes a versatile splice cassette that holds up to 12 connectors and provides space for 24 fibers. The twelve slots can accommodate up to 12 LC duplex connectors, 12 SC simplex connectors, or 12 E-2000® connectors. The two head holders in the splice cassette are equipped with two clamp-on splice holders, each for twelve fibers. These can be replaced with standard splice holders or heat-shrink holders. The wall-mounted enclosure is secured with a long cover that prevents subscriber access. The cover can also be locked using a built-in cylinder lock. A device for sealing the splice box is located on the side.
- Extremely compact / variable HÜP
- Multifunctional motherboard
- Various cable entry options
HÜP consists of a 3-part enclosure. The base plate is mounted in the desired location, ensuring unobstructed operation within the switchgear. Intelligent cable routing facilitates cable installation and securing. The base plate also features a PLC distributor mount and various cable entry options. Two cutouts on the base plate allow for the insertion of 7 mm or 12 mm microtubes. The head holder on the base plate provides space for a splice holder, which can be replaced with any splice holder or heat-shrink sleeve. The space on the base plate and the crimping holder can be used for a through-splicing configuration. The second mounting point includes a versatile splice cassette that holds up to 12 connectors and provides space for 24 fibers. The twelve slots can accommodate up to 12 LC duplex connectors, 12 SC simplex connectors, or 12 E-2000® connectors. The two head holders in the splice cassette are equipped with two clamp-on splice holders, each for twelve fibers. These can be replaced with standard splice holders or heat-shrink holders. The wall-mounted enclosure is secured with a long cover that prevents subscriber access. The cover can also be locked using a built-in cylinder lock. A device for sealing the splice box is located on the side.
Specification
Structure
Case material:
The material the product's casing is made of.
Plastic
Product color:
Color, e.g., red, blue, green, black, white.
Gray
Weight and Dimensions
Product depth:
Distance from the front to the back of the item.
59 mm
Product height:
Product height.
256 mm
Product width:
Width measurement.
122 mm
Packaging data
Package capacity:
4620 cm³
