DIGITUS
Digitus 4x2 HDMI Matrix Switch, 4K / 60 Hz
Support for 4K 2K / 60 Hz (4:4:4)
Video bandwidth: 18 Gbps per channel
HDCP 2.2 / 1.4
HDMI 2.0

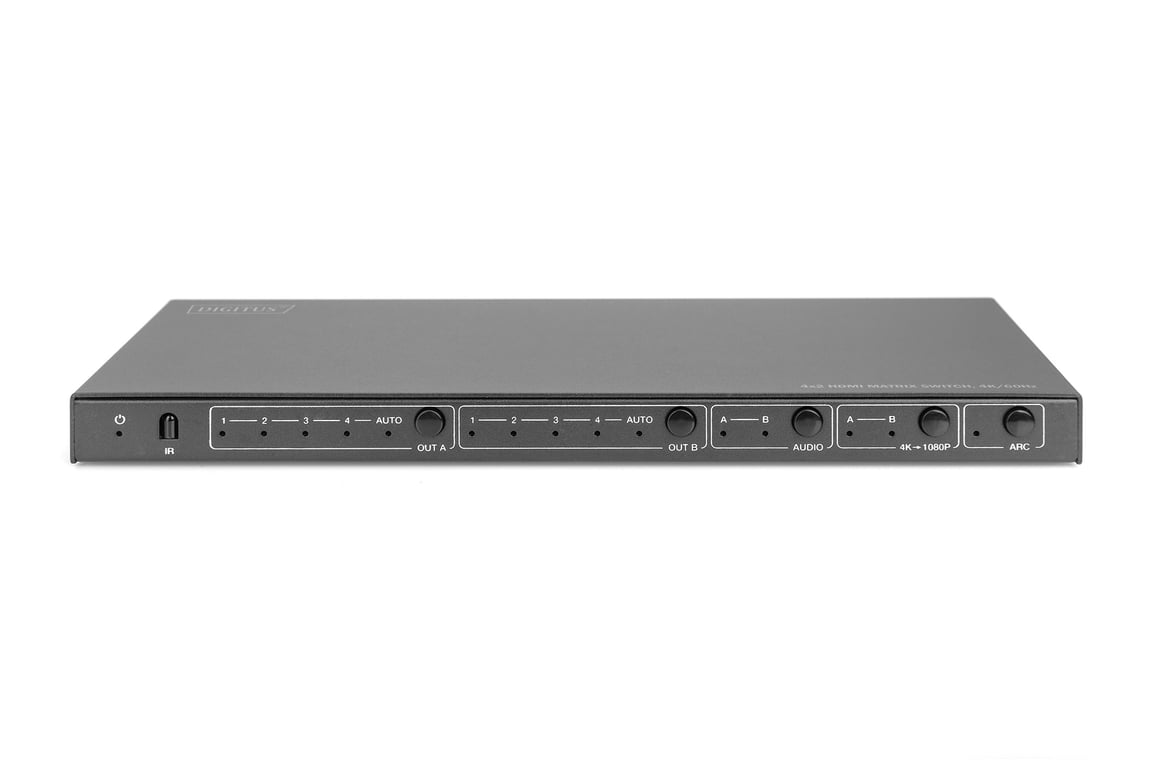

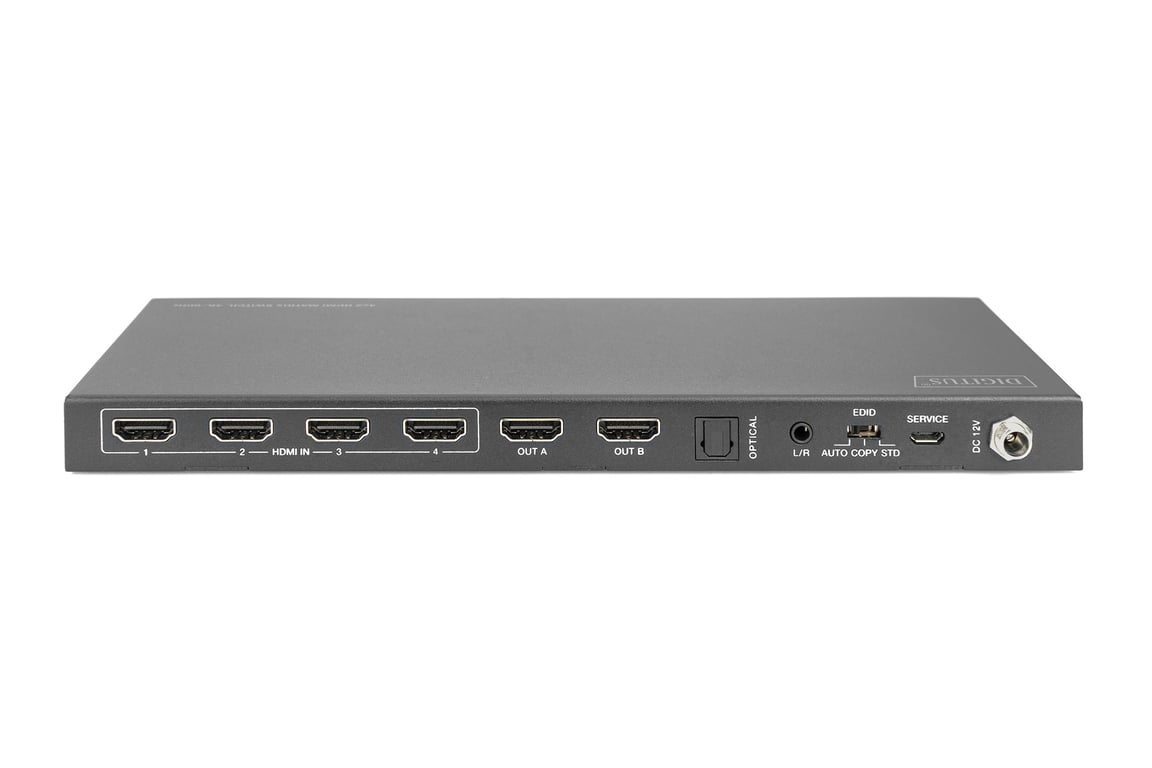

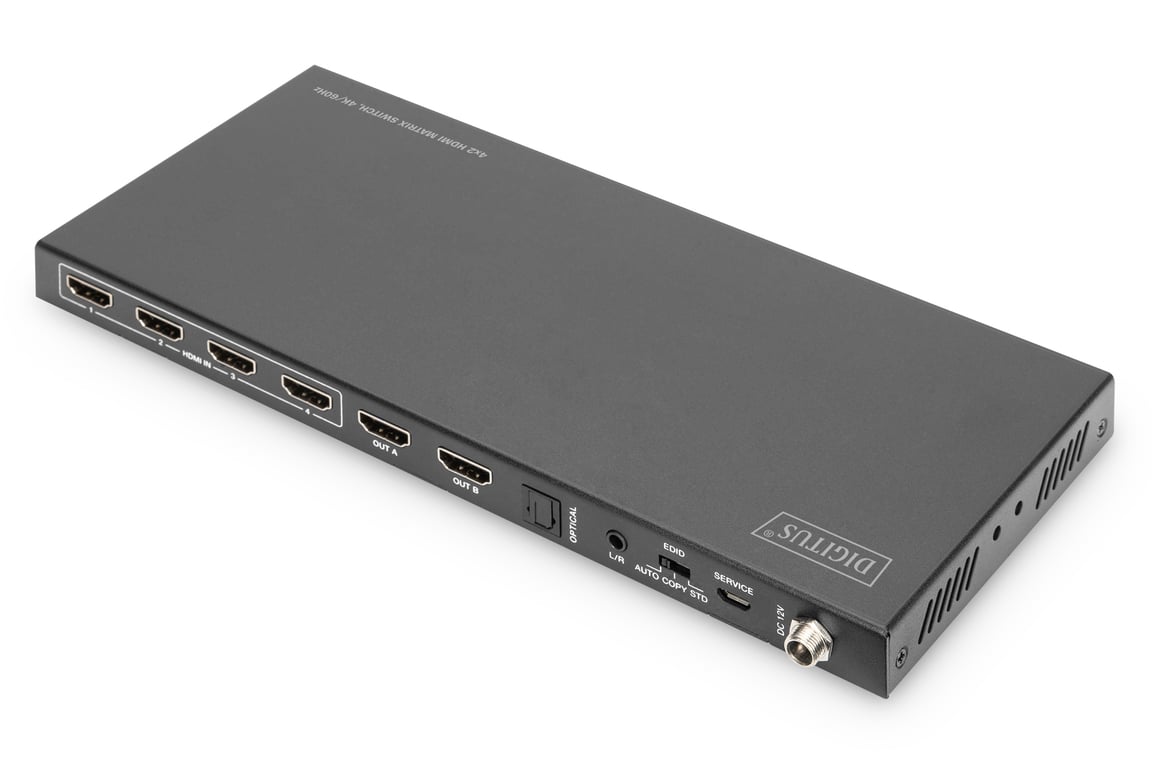

Digitus 4x2 HDMI Matrix Switch, 4K / 60 Hz
You can easily switch between up to 4 HDMI sources and 2 displays without the hassle of switching cables, and stream your multimedia content independently in 4K UHD resolution to up to 2 displays
- Support for 4K 2K / 60 Hz (4:4:4)
- Video bandwidth: 18 Gbps
- HDCP 2.2 / 1.4
- HDMI 2.0
- EDID Management
- Support for ARC (Audio Return Channel) technology
- Support for downscaling 4K content for display on Full HD (1080p) screens
- Support for Dolby Vision, HDR10+, and HLG
- Audio signal extraction function (connect an audio output device via an optical or analog connector)
Digitus® HDMI 4x Matrix Switch, 4K / 60 Hz, distributes multimedia content from up to 4 HDMI sources to up to 2 recording devices (e.g., HDD recorder) or playback devices (TV, monitor, projector, etc.), simultaneously and independently of one another. You can easily switch between HDMI sources and output devices using the remote control—independently of one another and without the hassle of switching cables. With 4K UHD support, you can play your multimedia content in ultra-sharp resolution. The ideal, all-in-one solution for HDMI signal distribution, whether for professional or commercial applications.
- Support for 4K 2K / 60 Hz (4:4:4)
- Video bandwidth: 18 Gbps
- HDCP 2.2 / 1.4
- HDMI 2.0
- EDID Management
- Support for ARC (Audio Return Channel) technology
- Support for downscaling 4K content for display on Full HD (1080p) screens
- Support for Dolby Vision, HDR10+, and HLG
- Audio signal extraction function (connect an audio output device via an optical or analog connector)
Digitus® HDMI 4x Matrix Switch, 4K / 60 Hz, distributes multimedia content from up to 4 HDMI sources to up to 2 recording devices (e.g., HDD recorder) or playback devices (TV, monitor, projector, etc.), simultaneously and independently of one another. You can easily switch between HDMI sources and output devices using the remote control—independently of one another and without the hassle of switching cables. With 4K UHD support, you can play your multimedia content in ultra-sharp resolution. The ideal, all-in-one solution for HDMI signal distribution, whether for professional or commercial applications.
Specification
Features
Operating voltage:
12 V
Maximum resolution (HDMI):
3840 x 2160 px
Case color:
The color of the case, which is a rigid cover that protects the device inside.
Black
Extended Display Identification Data (EDID):
Yes
EDID Management:
Yes
Bandwidth:
18 Gbit/s
Processor
Max. resolution:
Maximum number of pixels in an image. This is usually specified as width x height; for example, "1024 x 768" means a width of 1024 pixels and a height of 768 pixels.
3840 x 2160 px
Ports and Interfaces
Number of HDMI input ports:
4
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of protection against the copying of digital audio and video content during its transmission
Yes
HDCP version:
1.4/2.2
Headphone outputs:
Number of headphone jacks/ports.
1
Supported USB type:
Type of USB port built into the device.
Micro-USB
Number of HDMI output ports:
2
Headphone jack:
How to connect headphones to a device, e.g., wirelessly or using a cable with the appropriate connector.
3.5 mm
HDMI version:
2.0
Digital, optical, and audio inputs:
A port on the device used for inputting digital data. The signal is input via an optical cable with a TOSLINK connector.
1
DC output jack:
Connecting the device to a power source.
Yes
Structure
Built-in display:
The display is part of the device, so no additional hardware needs to be connected.
No
Case material:
The material the product's casing is made of.
Metal
Power
Output current:
1000 mA
Maximum power consumption:
The maximum amount of power the device consumes.
3.8 W
Ergonomics
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
620 g
Product depth:
Distance from the front to the back of the item.
105 mm
Product height:
Product height.
20 mm
Product width:
Width measurement.
251 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
1.09 kg
Package capacity:
3,750.02 cm³
Package width:
The distance from one side of the package to the other.
309 mm
Package depth:
Distance from the beginning to the end of the package.
164 mm
Package height:
Distance from the top to the bottom of the package.
67.3 mm
Package type:
Product packaging type, e.g., box.
Box
Package Contents
User Manual:
Yes
Mounting brackets included:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–40 °C
Logistics data
Country of origin:
Country where the product was manufactured.
China
Harmonized System (HS) code:
85299097
Other features
Number of USB ports:
1
