Digitus USB-C Docking Station, 7-port
Links:
1x USB-C port (3.2 Gen 2) – connection to a host PC
1x HDMI (2.0) output - Max. Resolution: UHD 4K/60Hz
2x USB-A 3.2 Gen 2 ports - data transfer 10 Gbit/s and the loading function: 1x 7,5W (5V/1,5A), 1x 4,5W (5V/0,9A)
Add useful accessories

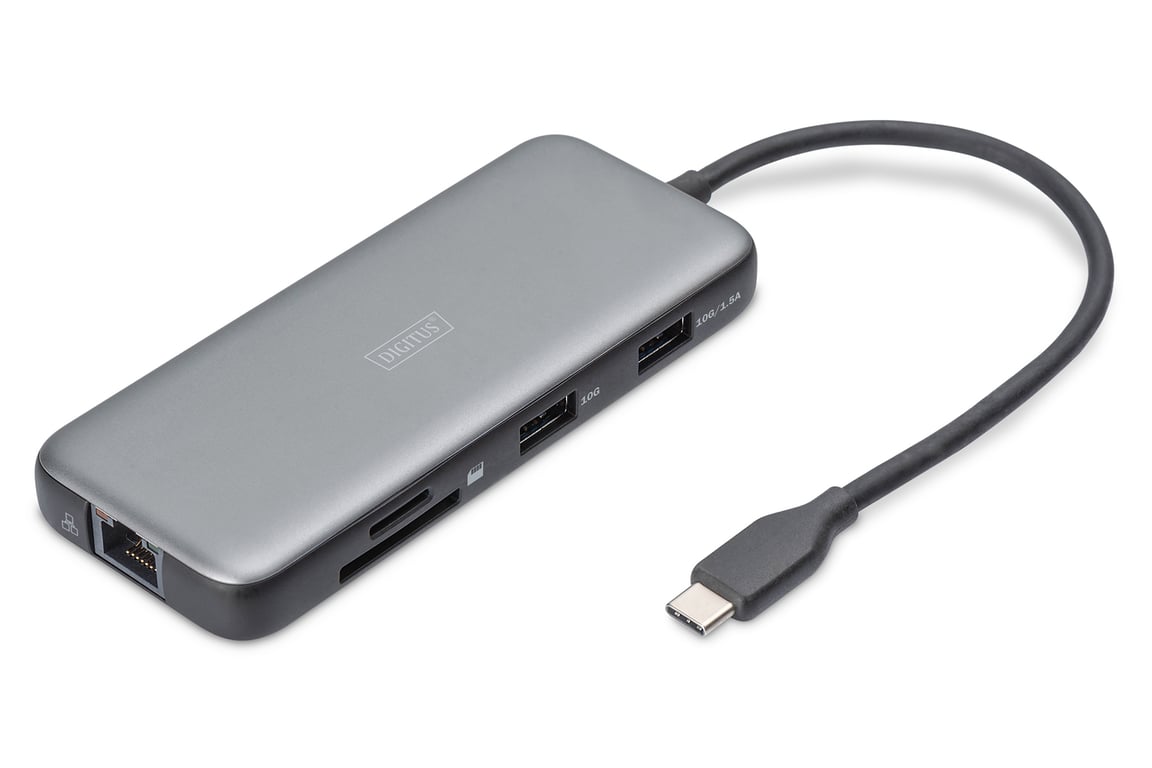

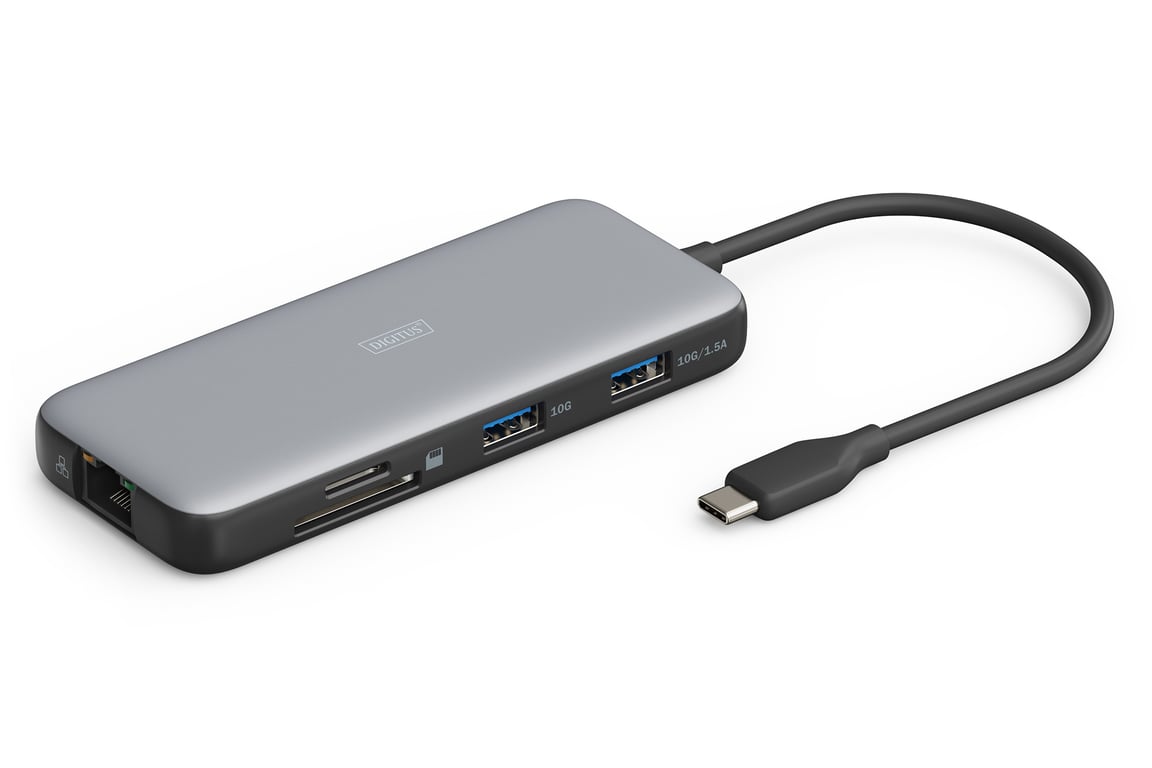

Digitus USB-C Docking Station, 7-port
Expand your laptop with 7 additional ports—take advantage of the versatility of multiple connection options and design your workspace more efficiently

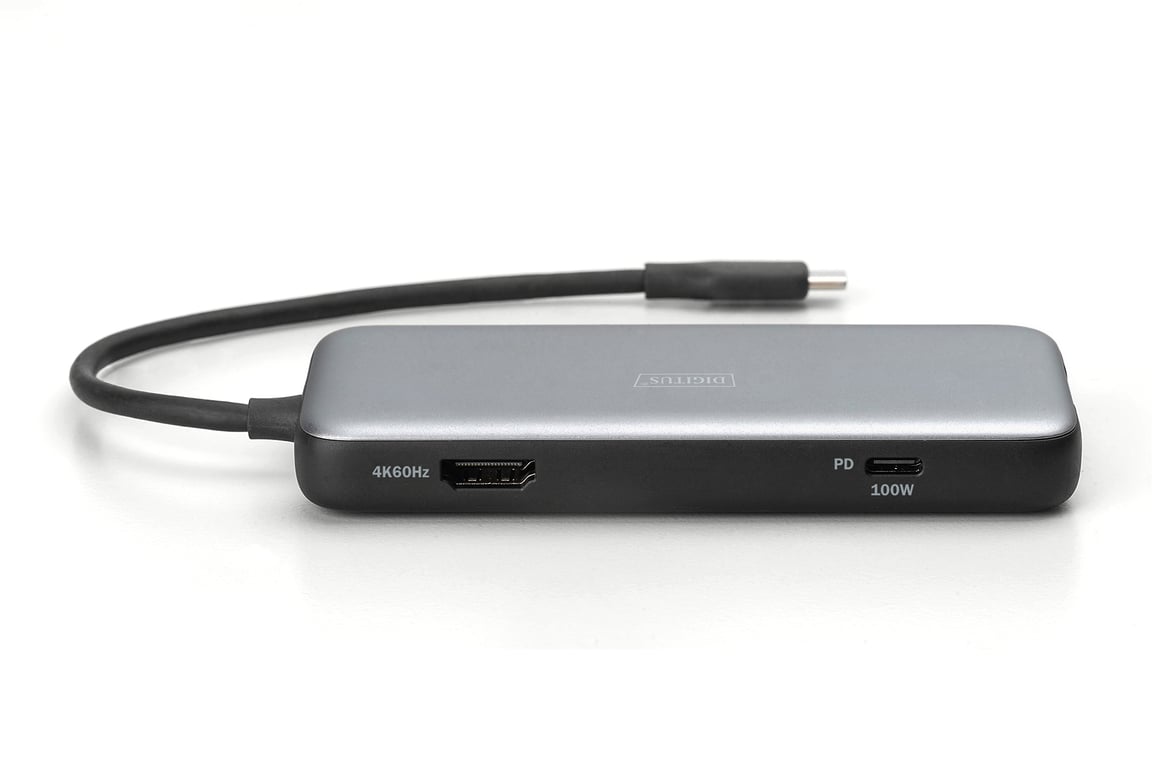

- 1x port HDMI (4K/60Hz) - the ability to expand the workstation with an additional external monitor

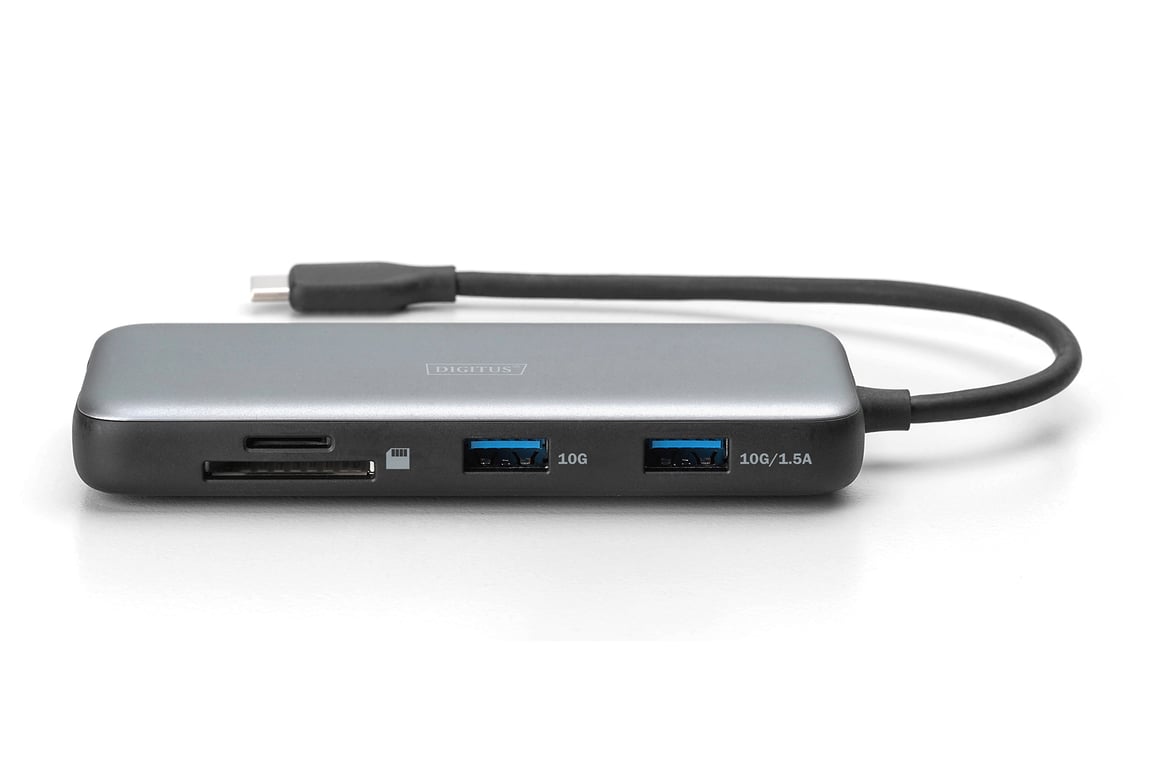

- 2x port USB-A 3.2 Gen 2 (10 Gbit/s) for ultra-fast data transfer—one port with an additional charging function (1,5 A) for mobile devices

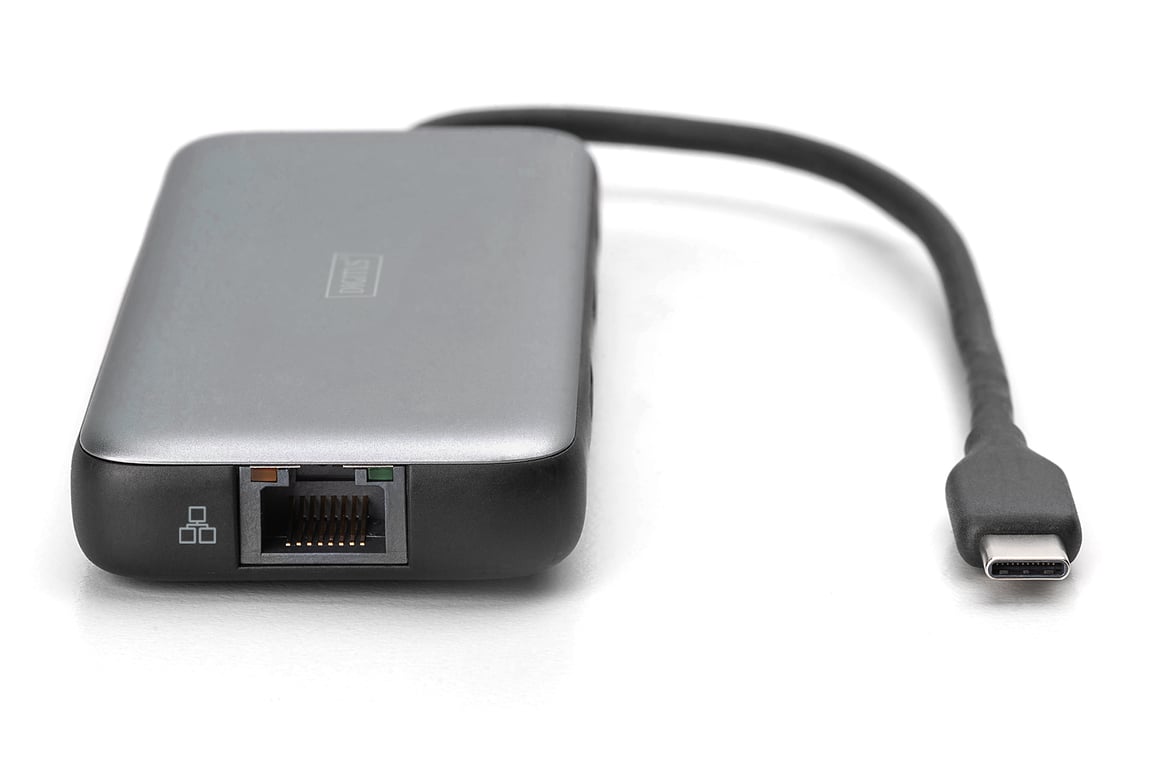

- 1x Gigabit Ethernet port (RJ45) - connect your laptop to the network using a cable
- 2x card readers (SD/MicroSD) - transfer speed 104 MBps
- 1x USB-C Power Delivery (3.0) port for charging a laptop
- Supports PD 3.0 Fast Role Swap (FRS)—the connection between the docking station and the laptop is not interrupted when the charger is disconnected.
- Integrated USB-C connection cable (20 cm) - flexible connection to the main computer
- Aluminum top cover
- Supports DP 1.4 Alt Mode, backward compatible with DP 1.2 Alt Mode (DisplayPort Alternate Mode)
- Supports HDCP 2.2, HDCP 1.4, HDCP 1.3
- HDR10+ support
Our 7-port docking station is the perfect solution for expanding and optimizing your workstation. With an HDMI port for an additional external monitor, two high-speed USB-A 3.2 Gen 2 ports (10 Gbit/s) — one of which supports mobile device charging — a Gigabit Ethernet port (RJ45) for a reliable network connection, and two high-speed (SD/MicroSD) with high transfer speeds, offering versatile connectivity. It allows you to charge a laptop via the USB-C Power Delivery port and features an elegant and sturdy design with an aluminum top cover. The docking station supports DP 1.4 Alt Mode and is backward compatible with DP 1.2 Alt Mode. It also supports HDCP 2.2, 1.4, 1.3, and HDR10+, ensuring an optimal multimedia experience.
- 1x port HDMI (4K/60Hz) - the ability to expand the workstation with an additional external monitor
- 2x port USB-A 3.2 Gen 2 (10 Gbit/s) for ultra-fast data transfer—one port with an additional charging function (1,5 A) for mobile devices
- 1x Gigabit Ethernet port (RJ45) - connect your laptop to the network using a cable
- 2x card readers (SD/MicroSD) - transfer speed 104 MBps
- 1x USB-C Power Delivery (3.0) port for charging a laptop
- Supports PD 3.0 Fast Role Swap (FRS)—the connection between the docking station and the laptop is not interrupted when the charger is disconnected.
- Integrated USB-C connection cable (20 cm) - flexible connection to the main computer
- Aluminum top cover
- Supports DP 1.4 Alt Mode, backward compatible with DP 1.2 Alt Mode (DisplayPort Alternate Mode)
- Supports HDCP 2.2, HDCP 1.4, HDCP 1.3
- HDR10+ support
Our 7-port docking station is the perfect solution for expanding and optimizing your workstation. With an HDMI port for an additional external monitor, two high-speed USB-A 3.2 Gen 2 ports (10 Gbit/s) — one of which supports mobile device charging — a Gigabit Ethernet port (RJ45) for a reliable network connection, and two high-speed (SD/MicroSD) with high transfer speeds, offering versatile connectivity. It allows you to charge a laptop via the USB-C Power Delivery port and features an elegant and sturdy design with an aluminum top cover. The docking station supports DP 1.4 Alt Mode and is backward compatible with DP 1.2 Alt Mode. It also supports HDCP 2.2, 1.4, 1.3, and HDR10+, ensuring an optimal multimedia experience.
Specification
Display
HD Type:
Type of high-definition supported (e.g., Full HD, 4K Ultra HD).
4K Ultra HD
Maximum refresh rate:
60 Hz
Processor
Maximum digital resolution:
3840 x 2160 px
Data storage medium
Integrated card reader:
A card reader is a device that allows you to read and, in some cases, write data to and from a memory card.
Yes
Supported memory card types:
Types of memory cards that can be used with this device.
MicroSD (TransFlash), SD
Network
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10,100,1000 Mbit/s
Ports and Interfaces
Host interface:
Product Host Interface Description
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Number of DisplayPorts:
Number of DisplayPort ports. DisplayPort is a universal digital interface developed by VESA (Video Electronics Standards Association). The interface is used to connect a video source to a display, such as a computer, but it can also be used to transmit audio, USB data, and other data.
1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports:
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports:
2
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
Microphone:
The jack where the microphone is plugged in.
No
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
DisplayPort Alternate Mode via USB Type-C:
Yes
Features
Case material:
The material the product's casing is made of.
Aluminum, Plastic
Maximum USB power:
100 W
Plug & Play support:
Indicates whether a given product supports the "plug & play" feature. Plug & play refers to a type of device or software that can be used immediately after being connected, as opposed to devices or software that require configuration.
Yes
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of protection against the digital copying of audio and video content during transmission
Yes
HDCP version:
1.4/2.2
High Dynamic Range (HDR) support:
Yes
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Yes
Computer system
Other supported operating systems:
ChromeOS
Structure
Product color:
Color, e.g., red, blue, green, black, white.
Black, Gray
Performance
LEDs:
Yes
USB Power Delivery version:
3.0
System Requirements
Supported mobile operating systems:
Operating systems, such as Android and iOS, that can be used with this device.
Android, iOS
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Yes
Power
Power Type:
Type of energy source.
USB
Power connector:
USB Type-C
USB Power:
Yes
Weight and Dimensions
Product height:
Product height.
15,5 mm
Product width:
Width measurement.
50 mm
Product depth:
Distance from the front to the back of the item.
120 mm
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
109 g
Packaging data
USB cable length:
0,2 m
Package Contents
Quantity per package:
1 szt.
Quick Start Guide:
Instructions, available both online and in print, that allow for quick installation and use of the product.
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0 - 40 °C
Other features
Data transfer speed:
The speed at which data can be transmitted to MC, expressed in units per second, may vary depending on the network configuration.
10 Gbit/s
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
