DIGITUS
Digitus System UPS OnLine, 1000 VA/1000 W
Online Dual Conversion System (VFI-SS-111)

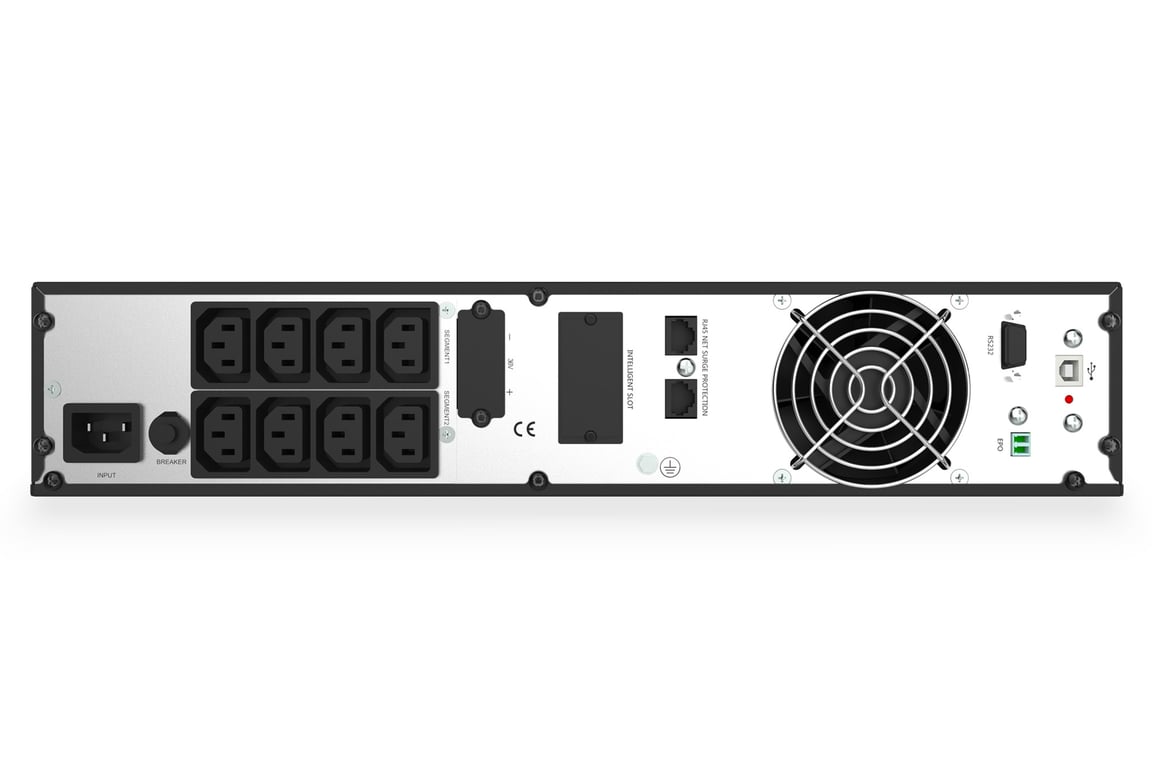

Input: IEC60320 C14 socket, 208/220/230/240 Vac
Output: 8 x IEC60320 C13, max. 10 A per outlet
Nominal system power: 1000 VA / 1000 W, power factor 1.0
Digitus System UPS OnLine, 1000 VA/1000 W
The OnLine UPS is the ideal backup solution that meets high power requirements and ensures high reliability in a variety of industrial applications.
- High power factor (1.0); higher active power allows for connecting more loads, which saves space and reduces costs.
- High performance in online mode; higher performance means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
- A user-friendly LCD screen provides insight into the UPS’s status, making installation, configuration, and operation easier.

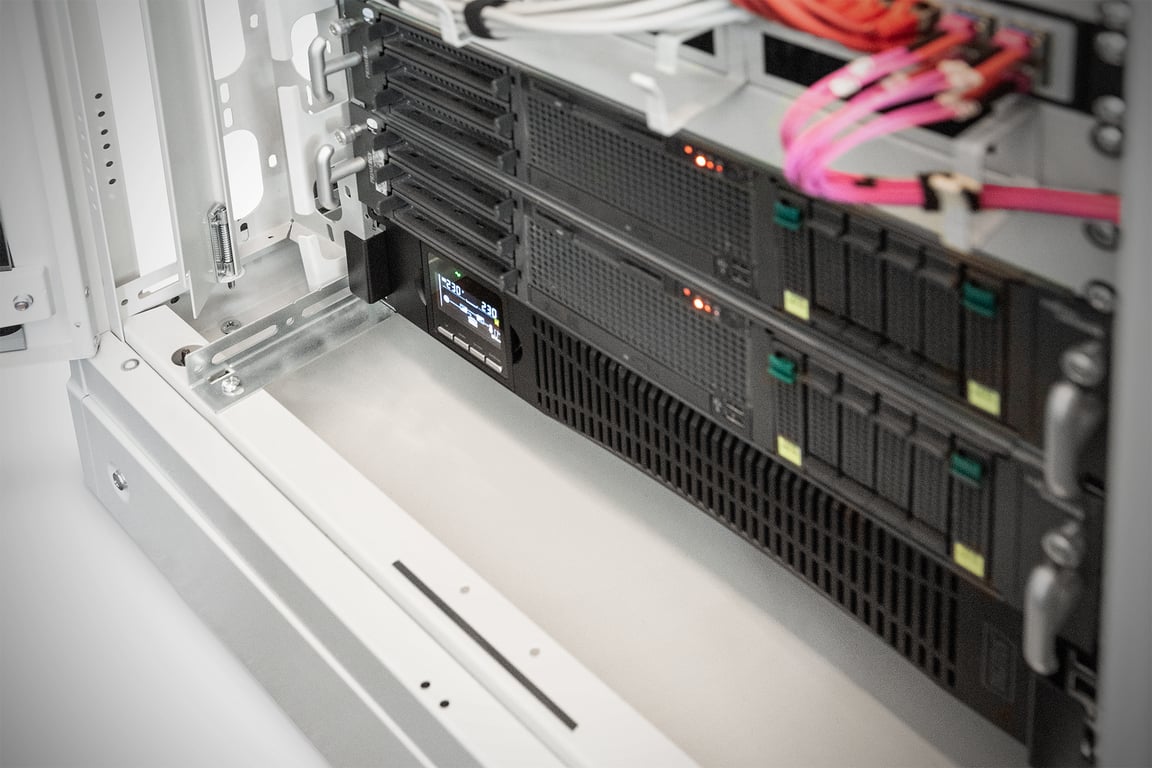

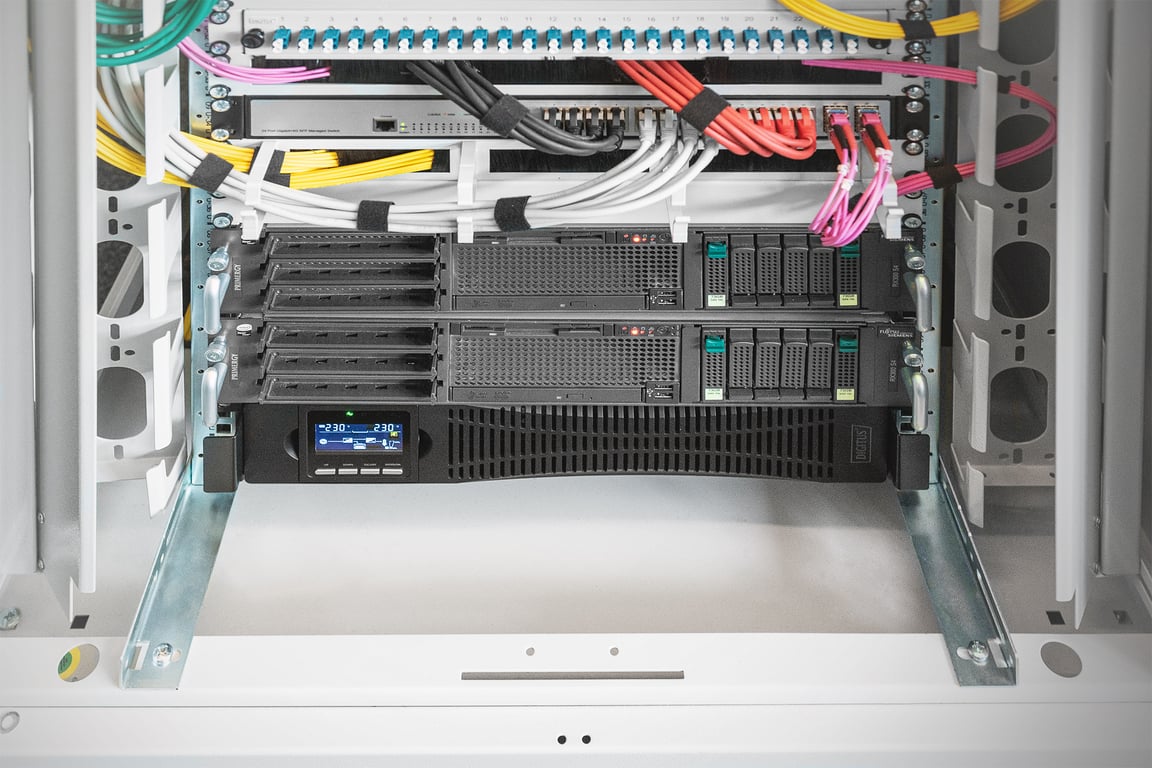

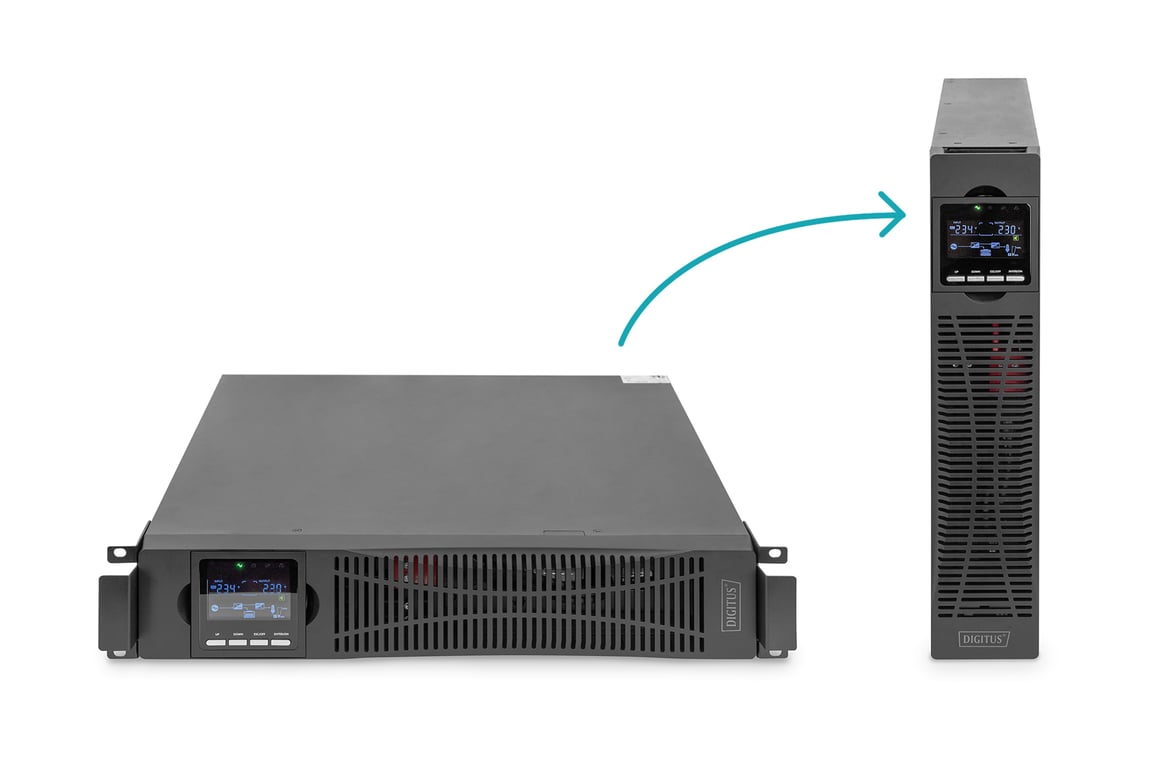

- The compact rack/tower design optimizes installation space in a rack cabinet and allows for flexible installation.
- Minimize device downtime with replaceable battery modules that can be swapped out during operation.
- External battery modules allow for extended runtime.
- A large number of outlets (8 x C13) ensuring optimal power distribution to devices.
- Various communication interfaces (RS232/USB, parallel port, SNMP port) enable remote monitoring of the system.
- Automatic battery self-tests and fan speed control extend the service life of components.
- The REPO (Remote Emergency Power Off) function shuts down the UPS in the event of an emergency. In the event of an emergency, the REPO switch turns off the rectifier and inverter and immediately cuts off power to the load. The UPS stops charging.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers top-class protection against power outages and continuous power generation in a compact and flexible system. This single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when longer uninterrupted power supply is required. A user-friendly LCD display and network management capabilities, including configuration, make this system easy to install and maintain. With market-leading efficiency and power factor unity, the UPS meets the critical requirements of your applications.
- High power factor (1.0); higher active power allows for connecting more loads, which saves space and reduces costs.
- High performance in online mode; higher performance means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
- A user-friendly LCD screen provides insight into the UPS’s status, making installation, configuration, and operation easier.
- The compact rack/tower design optimizes installation space in a rack cabinet and allows for flexible installation.
- Minimize device downtime with replaceable battery modules that can be swapped out during operation.
- External battery modules allow for extended runtime.
- A large number of outlets (8 x C13) ensuring optimal power distribution to devices.
- Various communication interfaces (RS232/USB, parallel port, SNMP port) enable remote monitoring of the system.
- Automatic battery self-tests and fan speed control extend the service life of components.
- The REPO (Remote Emergency Power Off) function shuts down the UPS in the event of an emergency. In the event of an emergency, the REPO switch turns off the rectifier and inverter and immediately cuts off power to the load. The UPS stops charging.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers top-class protection against power outages and continuous power generation in a compact and flexible system. This single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when longer uninterrupted power supply is required. A user-friendly LCD display and network management capabilities, including configuration, make this system easy to install and maintain. With market-leading efficiency and power factor unity, the UPS meets the critical requirements of your applications.
Specification
Features
UPS Topology:
The two main UPS topologies are Double-Conversion True Online and Standby/Eco. Many quality-related factors must be considered when selecting the optimal UPS for the job, such as how well it handles voltage disturbances.
Double conversion (online)
Maximum configurable power:
Maximum power output of the device.
1.5 kVA
Input operating voltage (minimum):
Minimum voltage required for the device to operate properly.
208 V
Input operating voltage (maximum):
Maximum input voltage.
240 V
Performance:
93%
Performance (ECO mode):
98%
ECO Mode:
Yes
Actual power:
Power generated by the device.
1000 W
Power factor:
1
Display
Display type:
Display (screen) type, e.g., LCD.
LCD
Ports and Interfaces
AC output types:
Type of electrical outlet.
C13 panel
Plugin:
A plug is a device with 2 or 3 pins that connects to an electrical outlet to establish an electrical connection.
C14 panel
Number of network ports:
The number of ports on the device used to connect it to a power source.
8 x network jacks
Serial interface:
Yes
SCSI interface:
RS-232
USB port:
The device has a port into which a USB cable can be plugged.
Yes
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
1
Port RS-232:
Number of RS-232 ports. The RS-232 serial port was once a standard feature of personal computers, used for modems, printers, mice, uninterruptible power supplies, and other peripheral devices. Today, this port has largely been replaced by USB and other ports.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
2
Emergency Power Off (EPO) connector:
Yes
Structure
Layout:
Description of the product’s external features.
Rackmount/Tower
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
Number of batteries:
The number of batteries that can be used with this device.
2
Maximum current:
The maximum possible current, which is the ratio of the electric charge flowing through a given area to the time taken for the charge to flow.
10 A
Battery voltage:
Battery voltage (V).
12 V
Battery capacity:
The amount of electrical charge a battery can deliver at a given voltage. A small battery has a lower capacity than a large battery of the same design, even though they have the same open-circuit voltage. Capacity is measured in ampere-hours (Ah).
9 Ah
Weight and Dimensions
Size:
Product dimensions.
48.3 cm (19")
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
11.3 kg
Product depth:
Distance from the front to the back of the item.
325 mm
Product height:
Product height.
86.5 mm
Product width:
Width measurement.
440 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
14.3 kg
Package capacity:
52,355.4 cm³
Package width:
The distance from one side of the package to the other.
467 mm
Package depth:
Distance from the beginning to the end of the package.
555 mm
Package height:
Distance from the top to the bottom of the package.
200 mm
Package Contents
Cables:
RS-232, USB cable
User Manual:
Yes
Hook Installation Kit:
Yes
Battery
Battery Technology:
The type of battery used by the device, e.g., nickel-cadmium (NiCD) rechargeable battery.
Lead-acid (VRLA)
Battery charging time (90%):
4 h
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–40 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-25 to 55 °C
Relative humidity range:
20 - 90%
Permissible operating altitude (above sea level):
0 - 1500 m
Logistics data
Country of origin:
Country where the product was manufactured.
China
Mask with serial number:
85044085
