HIKVISION

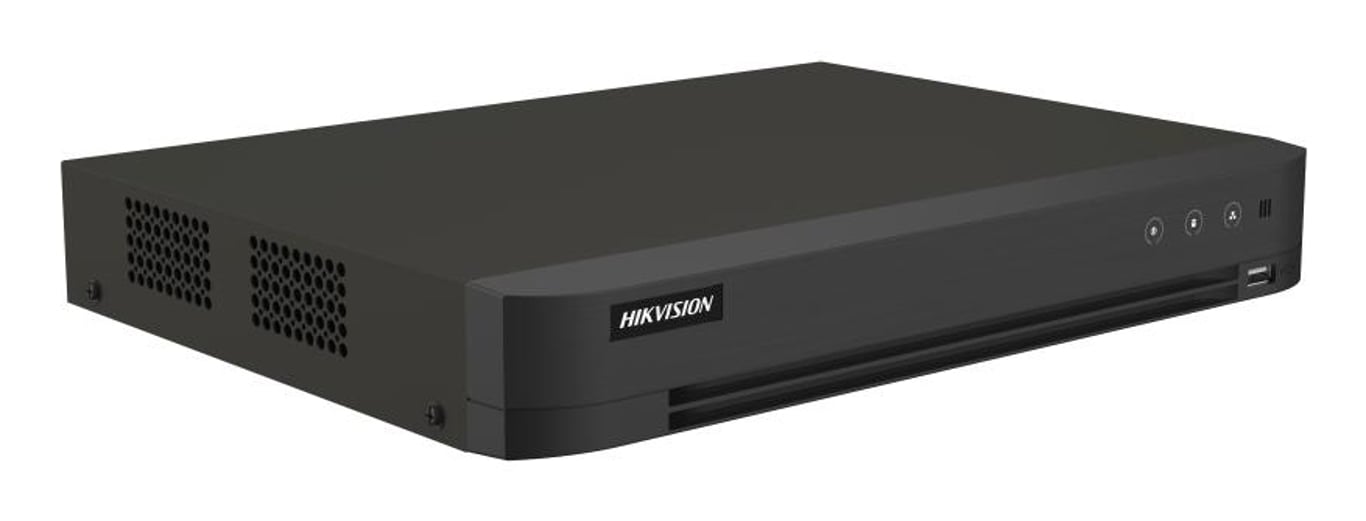

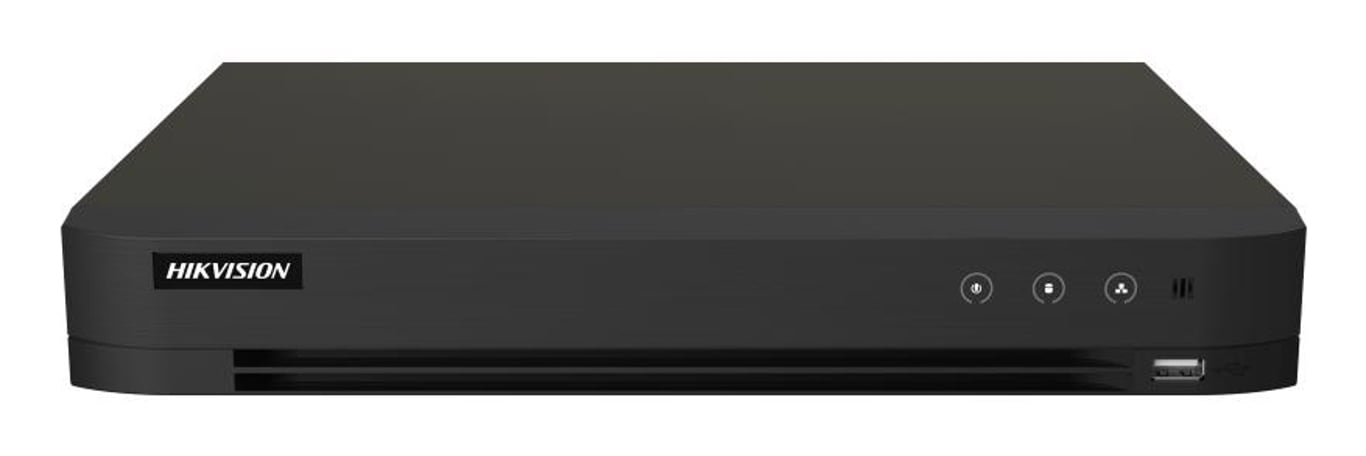

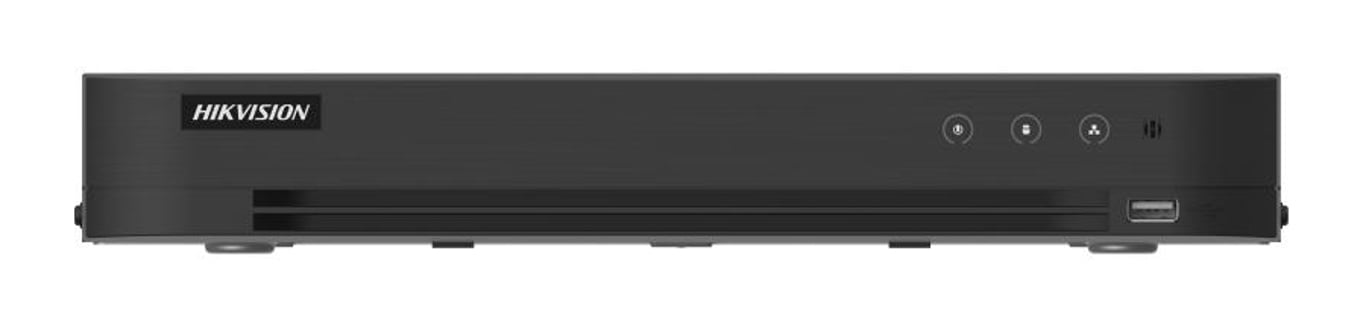

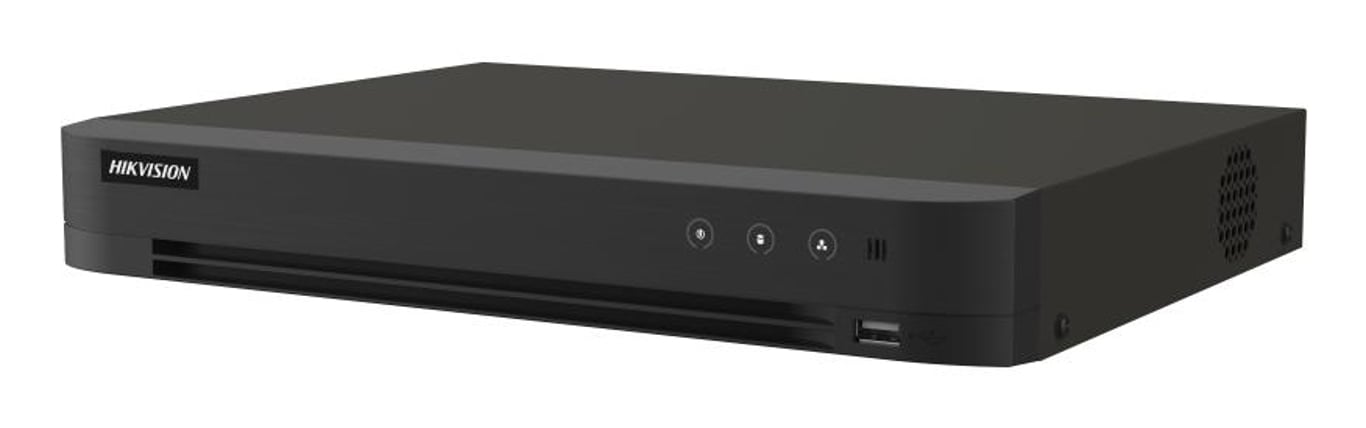

Hikvision Pro Series iDS-7216HQHI-M1/XT Black
3840 x 2160 px
Video motion detector
Wired LAN
12 TB
Specification
Audio
Audio input channels:
A channel is an electrical circuit used to transmit audio signals. It allows the signal to be transmitted to another device.
16 channels.
Audio streaming:
Yes
Audio output channels:
An audio output channel is an electrical circuit that serves as a path for the signal generated by a device. A device may have several audio output channels.
Version 1.0.
Audio system:
A system for playing music or speech.
2-way
Security
Video motion detector:
Yes
Network
Supported network protocols:
Network protocols tested and compatible with this product
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Number of users:
Number of people who can use the product.
128 users
Ethernet interface type:
Fast Ethernet, Gigabit Ethernet
Video
Maximum video resolution:
Maximum video resolution. Resolution is a measure of the level of detail in an image.
3840 x 2160 px
Compression formats:
H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Video streaming:
Yes
Hard drive
Max. HDD capacity:
12 TB
Supported HDD Interfaces:
The type of interface used with the hard drive, e.g., Parallel ATA (PATA), Serial ATA (SATA), SCSI.
SATA
Multimedia
Supported audio formats:
Audio file formats supported by the device or program, e.g., MP3, MP4.
G.711u

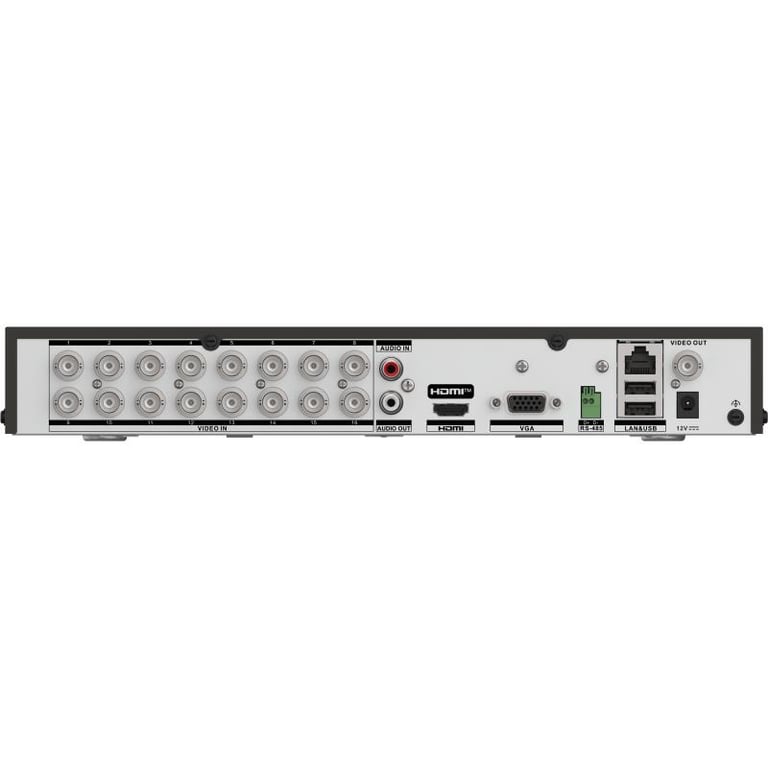

Ports and Interfaces
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Number of HDMI outputs:
HDMI output port.
1
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
1
VGA (D-Sub) outputs:
1
BNC outputs:
1
BNC inputs:
BNC connectors.
16
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:
2
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Line-level inputs (RCA):
1
RCA outputs:
1
Performance
Video channel inputs:
The number of video input channels supported by the device.
16 channels.
Number of simultaneous playback channels:
16 channels.
Data transfer speed:
6000 Kbit/s
Support for two streams:
Yes
Total bandwidth:
256 Mbit/s
Audio transmission speed:
64 Kbit/s
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
24 W
DC voltage:
12 V
Direct current (max):
2 A
Memory controllers
Number of supported HDDs:
Total number of hard drives that can be used with this device.
1
TV tuner
Analog Signal Format System:
Supported protocols for analog signal exchange.
NTSC, PAL
Indoor unit
Porty RS-485:
1
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
2 kg
Product depth:
Distance from the front to the back of the item.
240 mm
Product height:
Product height.
48 mm
Product width:
Width measurement.
320 mm
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-10 to 55 °C
Relative humidity range:
10 - 90%
