HIKVISION

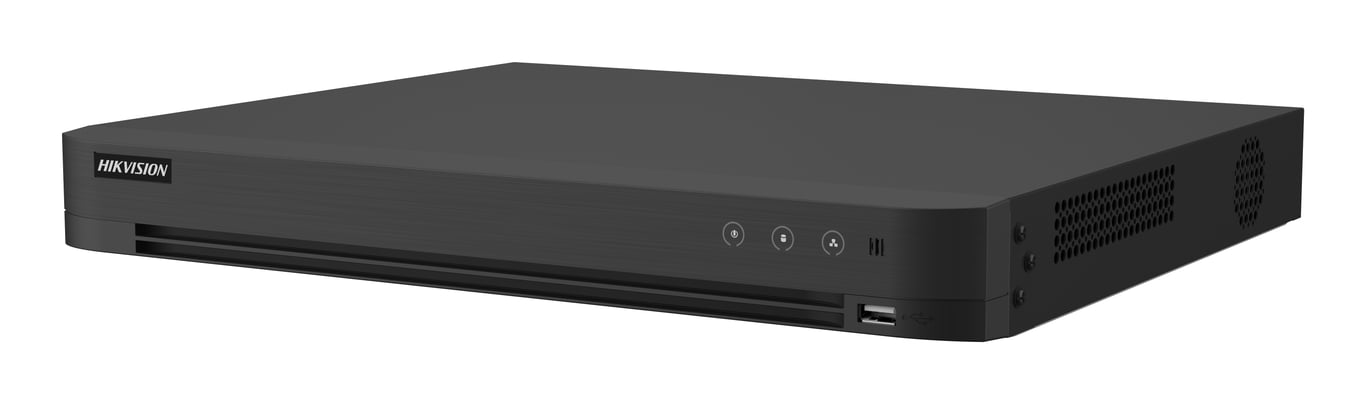

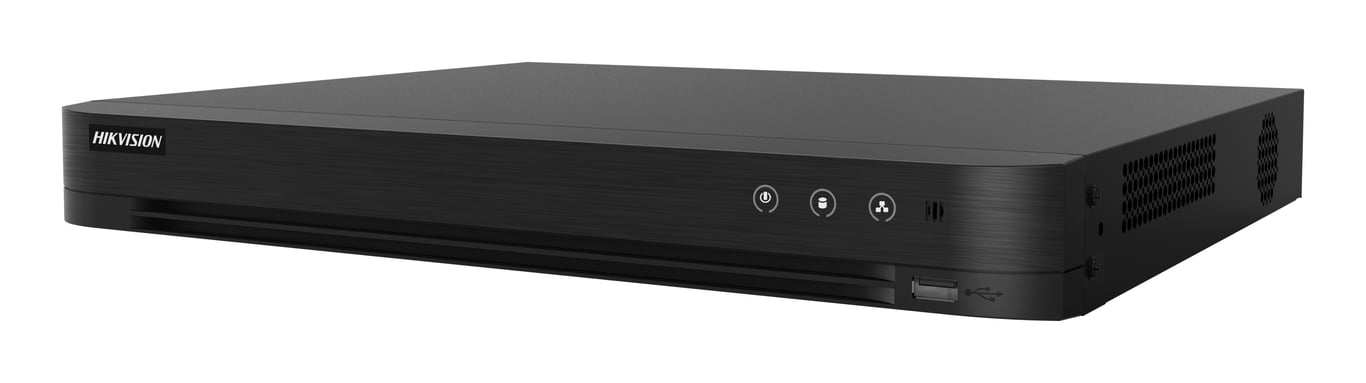

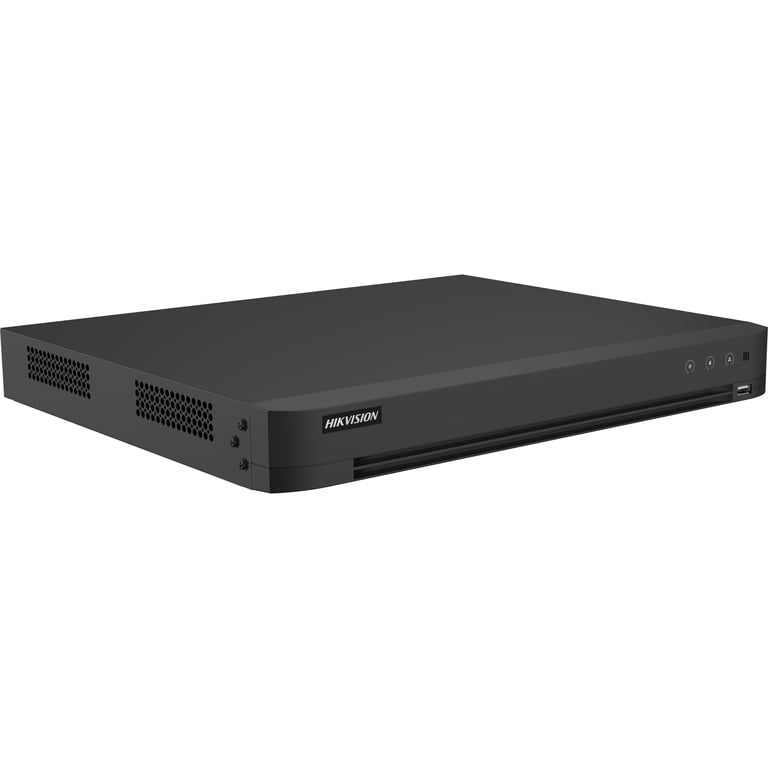

Hikvision Pro Series iDS-7216HQHI-M2/XT Black
3840 x 2160 px
30 fps
USB connection Wired LAN
12 TB
Specification
Audio
Audio input channels:
A channel is an electrical circuit used to transmit audio signals. It allows the signal to be transmitted to another device.
1 channel.
Audio streaming:
Yes
Audio output channels:
An audio output channel is an electrical circuit that serves as a path for the signal generated by a device. A device may have several audio output channels.
Version 1.0.
Features
Frame capacity:
Describes the rack capacity in units (U)
1U
Camera
Maximum frames per second:
Maximum frames per second. This is the rate at which successive static images appear on the screen. This term applies to cameras, video cameras, computer graphics software, and motion capture systems. The frequency is usually expressed in frames per second (fps) or in hertz (Hz) for progressive scan.
30 fps
Network
Supported network protocols:
Network protocols tested and compatible with this product
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP
Number of users:
Number of people who can use the product.
128 users
Ethernet interface type:
Fast Ethernet, Gigabit Ethernet
Video
Maximum video resolution:
Maximum video resolution. Resolution is a measure of the level of detail in an image.
3840 x 2160 px
Compression formats:
H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Video streaming:
Yes
Hard drive
Max. HDD capacity:
12 TB
Supported HDD Interfaces:
The type of interface used with the hard drive, e.g., Parallel ATA (PATA), Serial ATA (SATA), SCSI.
SATA
Multimedia
Supported audio formats:
Audio file formats supported by the device or program, e.g., MP3, MP4.
G.711 μ-law
Ports and Interfaces
Audio input:
The type of audio input required by the device.
1
Audio output:
The type of sound output produced by the device.
1
USB connection:
With a high-speed USB 2.0 connection, you can play MP3 files stored on a portable USB drive.
Yes
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
1
VGA (D-Sub) outputs:
1
BNC outputs:
1
BNC inputs:
BNC connectors.
16
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:
2
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Performance
Video channel inputs:
The number of video input channels supported by the device.
16 channels.
Number of simultaneous playback channels:
16 channels.
Data transfer speed:
6000 Kbit/s
Support for two streams:
Yes
Total bandwidth:
256 Mbit/s
Audio transmission speed:
64 Kbit/s
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
Power supply type:
Power supply (internal/external) used in the product. PFC = Power Factor Correction. CE = CE-marked and compliant. If multiple values (watts) are provided, this often refers to the low-wattage range as opposed to the high-wattage range. Many power supplies are used for redundancy. When an additional power supply is optional, this is indicated by listing the maximum number. Power supplies may be hot-plug or non-hot-plug.
DC
DC voltage:
12 V
Maximum power consumption:
The maximum amount of power the device consumes.
40 W
Direct current (max):
3.3 A
Memory controllers
Number of supported HDDs:
Total number of hard drives that can be used with this device.
2
TV tuner
Analog Signal Format System:
Supported protocols for analog signal exchange.
NTSC, PAL
Indoor unit
Porty RS-485:
1
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
2 kg
Product depth:
Distance from the front to the back of the item.
317 mm
Product height:
Product height.
52 mm
Product width:
Width measurement.
384 mm
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-10 to 55 °C
Relative humidity range:
10 - 90%
