HUAWEI EKIT

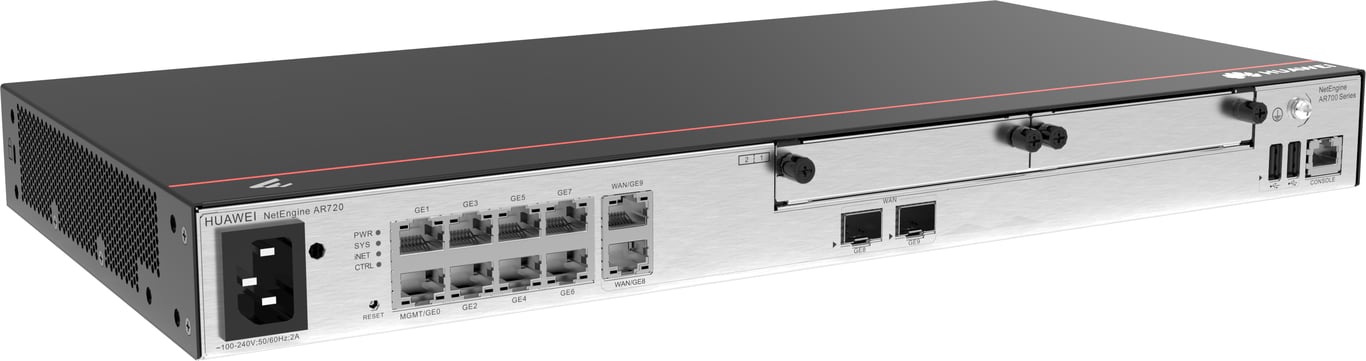

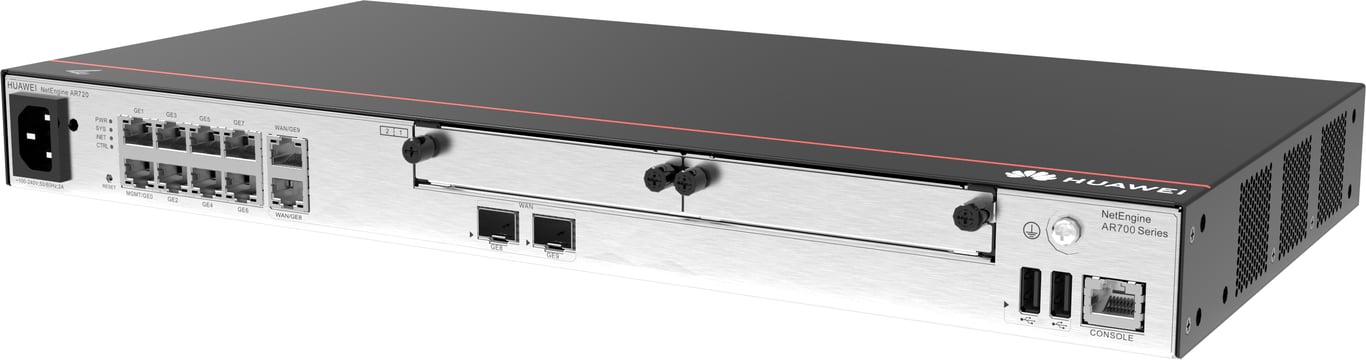

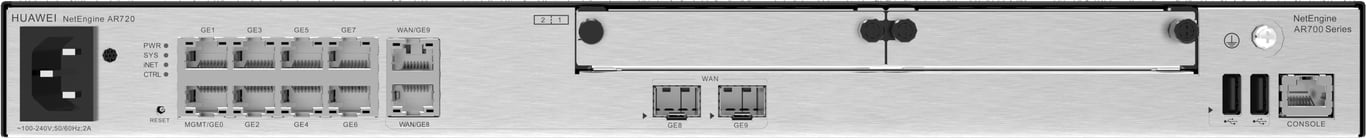

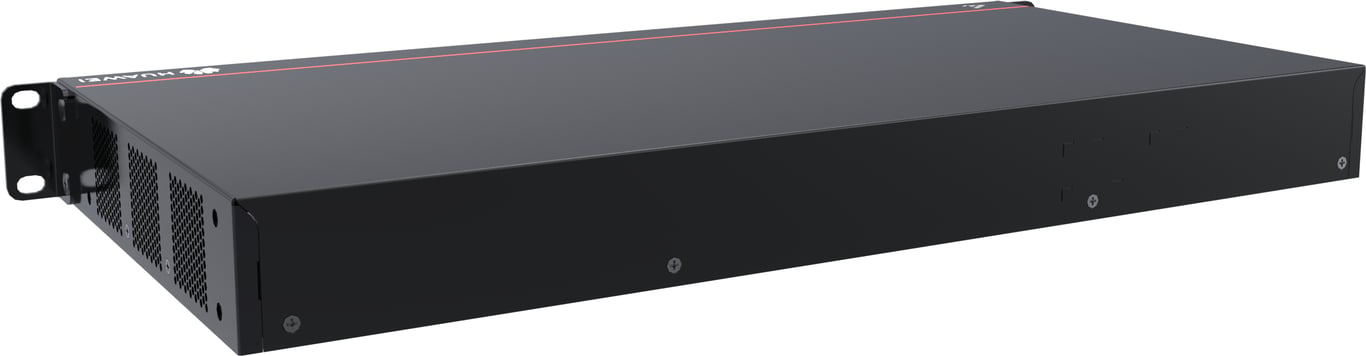

HUAWEI eKit AR700 Series AR720 Gigabit Ethernet Router, Gray
Ethernet WAN
IEEE 802.3, IEEE 802.1p, IEEE 802.1Q
Gigabit Ethernet
Management via the website
Specification
Data Transfer
Transmission speed:
25 Mpps
Multicast Features
Multicast Support:
Yes
Features
Cabling technology:
Type of cable technology performance; taking into account the fiber or cable type.
10/100/1000Base-T(X)
Input current:
2 A
Frame capacity:
Describes the rack capacity in units (U)
1U
Port forwarding:
Yes
DHCP client:
Whether the product uses DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Yes
DHCP server:
A server is a system that responds to requests from an entire computer network, providing support for it. DHCP servers use the Dynamic Host Configuration Protocol (DHCP), which is a standardized network protocol used by servers on an IP network to assign IP addresses to computers. The purpose of DHCP is to automate IP address configuration so that it can take place without the need for a network administrator’s involvement. IP addresses are assigned to a computer for a certain period of time, after which the computer must renew its IP address or obtain a new one.
Yes
Security
Firewall:
Yes
Preventing ARP Attacks:
Yes
Network Address Translation (NAT):
Yes
Access Control List (ACL):
Yes
Encryption / Security:
Encryption algorithms are used for authentication, key encryption, and radio link security. The supported encryption algorithms are those that can be used with this product.
WEP, WPA, WPA2
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.1p, IEEE 802.1Q
Rule-based routing:
Yes
Quality of Service (QoS):
Yes
Ethernet interface type:
Gigabit Ethernet
VLAN support:
A virtual local area network (VLAN) consists of several computers and switches. It is a computer network that is logically separated within another, larger physical LAN.
Yes
Processor
Embedded processor:
Whether or not a processor is built into the device.
Yes
Processor clock speed:
Processor speed. Manufacturers often express processor clock speed in GHz (1 GHz = 1000 MHz). Processor clock speed is the basic unit, expressed in cycles per second (hertz), at which a computer performs the most basic operations, such as adding two numbers. There are other factors, such as the size of the internal memory, that affect the computer’s actual response time.
1400 MHz
Management Features
Priority Mapping:
Yes
Management via the website:
Using a web application to manage specific tasks.
Yes
Traffic Shaping:
Yes
Ports and Interfaces
Number of SFP module slots:
2
USB version:
The Universal Serial Bus (USB) is a type of computer communication port developed in the 1990s to replace older serial and parallel ports. Each subsequent version—such as 1.1, 2.0, or 3.0—is faster than the previous one.
2.0
Number of WAN ports:
2
Ethernet WAN:
Yes
Number of slots in the Smart Interface Card (SIC):
2
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
8
Number of console ports:
1
Performance
Internal storage capacity:
Amount of storage, measured in megabytes, installed on the device's hard drive
4000 MB
Flash memory capacity:
1024 MB
Structure
Rack-mounting options:
A type of mounting that secures devices to shelves and stands.
Yes
Product color:
Color, e.g., red, blue, green, black, white.
Gray
Power
Power Type:
Type of energy source.
Alternating current
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
33 W
AC input voltage:
Electrical voltage.
100 - 240 V
AC input frequency:
50/60 Hz
Maximum power consumption:
The maximum amount of power the device consumes.
70 W
Ergonomics
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
3.2 kg
Product depth:
Distance from the front to the back of the item.
220.4 mm
Product height:
Product height.
44.4 mm
Product width:
Width measurement.
442 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
4.6 kg
Package width:
The distance from one side of the package to the other.
390 mm
Package depth:
Distance from the beginning to the end of the package.
570 mm
Package height:
Distance from the top to the bottom of the package.
90 mm
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–45 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-40 to 70 °C
Relative humidity range:
5 - 95%
Permissible operating altitude (above sea level):
0 - 5000 m
Other features
Number of USB ports:
2
