INTELLINET

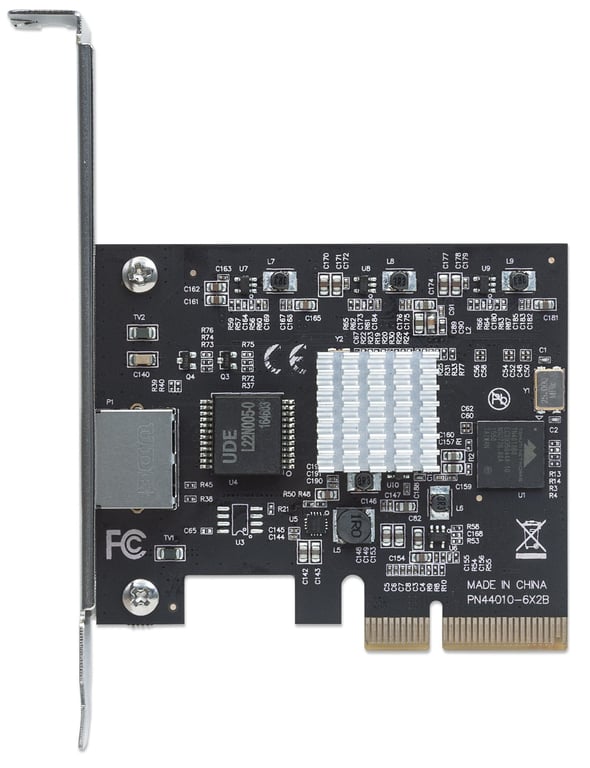

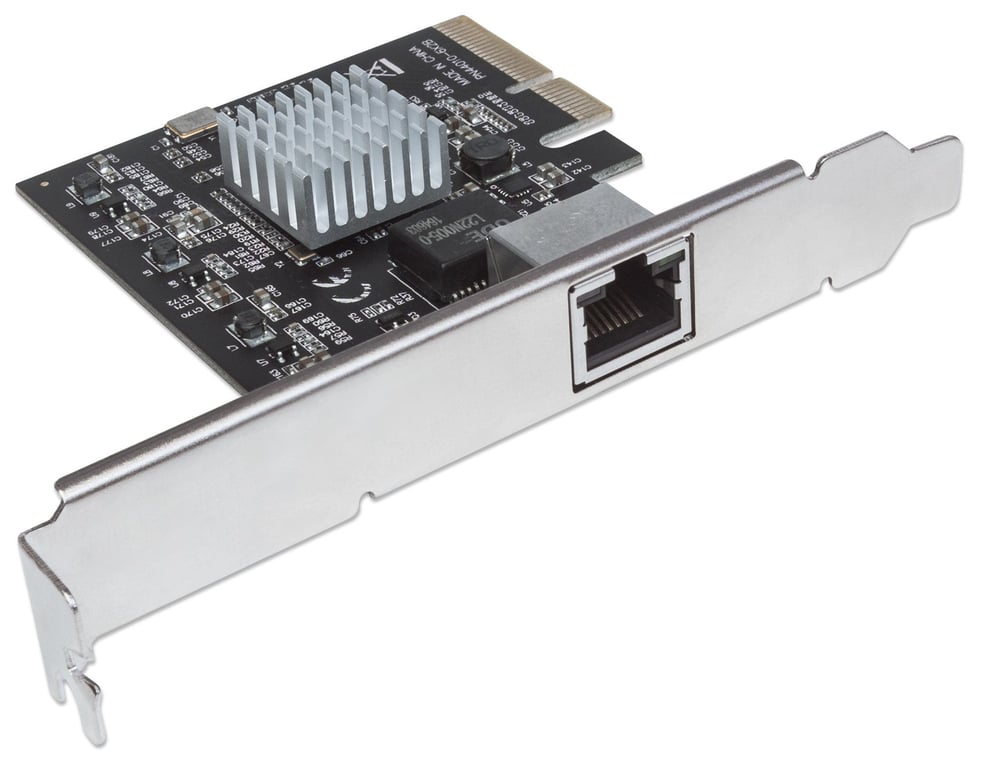

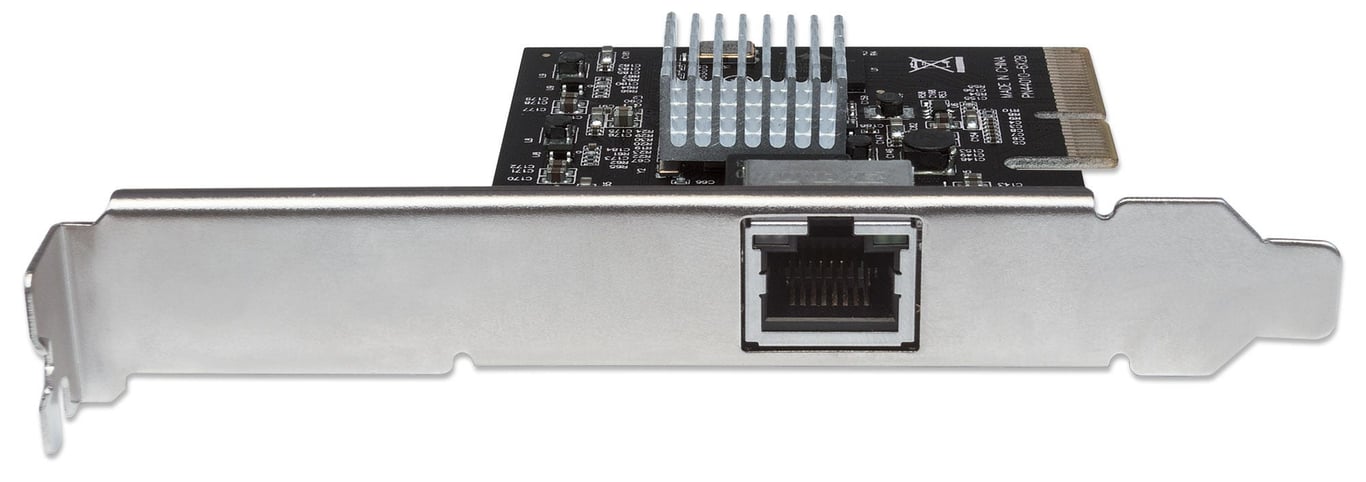

Intellinet 507950 Network Card, Internal Ethernet 10,000 Mbit/s
Enables a seamless connection between a server or workstation and the network
Bandwidth of up to 10 Gb/s using a Cat6a network cable
Bandwidth of up to 5 Gb/s when using a Cat6 network cable and up to 2.5 Gb/s when using a Cat5e cable
Fully compatible with 10GBase-T and NBASE-T™
Specification
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
10,000 Mbit/s
Cabling technology:
Type of cable technology performance; taking into account the fiber or cable type.
10GBase-T
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
Ethernet
Set of layouts:
Chipset for this configuration, expressed as the manufacturer’s name and the product’s proprietary name.
Tehuti TN4010
Certificates:
FCC B, CE
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000, 1,200, 2,500, 5,000, 10,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet interface type:
10 Gigabit Ethernet
Ports and Interfaces
Host interface:
Product Host Interface Description
PCI Express
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
PCI version:
2.0
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
Yes
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Supported server operating systems:
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Ergonomics
LEDs:
Function, Link, Speed
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
65.2 g
Product depth:
Distance from the front to the back of the item.
122 mm
Product height:
Product height.
81 mm
Product width:
Width measurement.
21 mm
Package Contents
Quick Start Guide:
Instructions, available both online and in print, that allow for quick installation and use of the product.
Yes
Low-profile rail:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–50 °C
Relative humidity range:
10 - 90%
Logistics data
Harmonized System (HS) code:
85176990
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
