INTELLINET
Intellinet 508322 1310 nm Network Converter, Single, Black
One 10/100 RJ45 port supporting a maximum distance of 100 m
One single-mode 100Base-FX SC fiber-optic port supporting a maximum distance of 20 km
Metal enclosure rated IP40, designed to withstand harsh industrial conditions

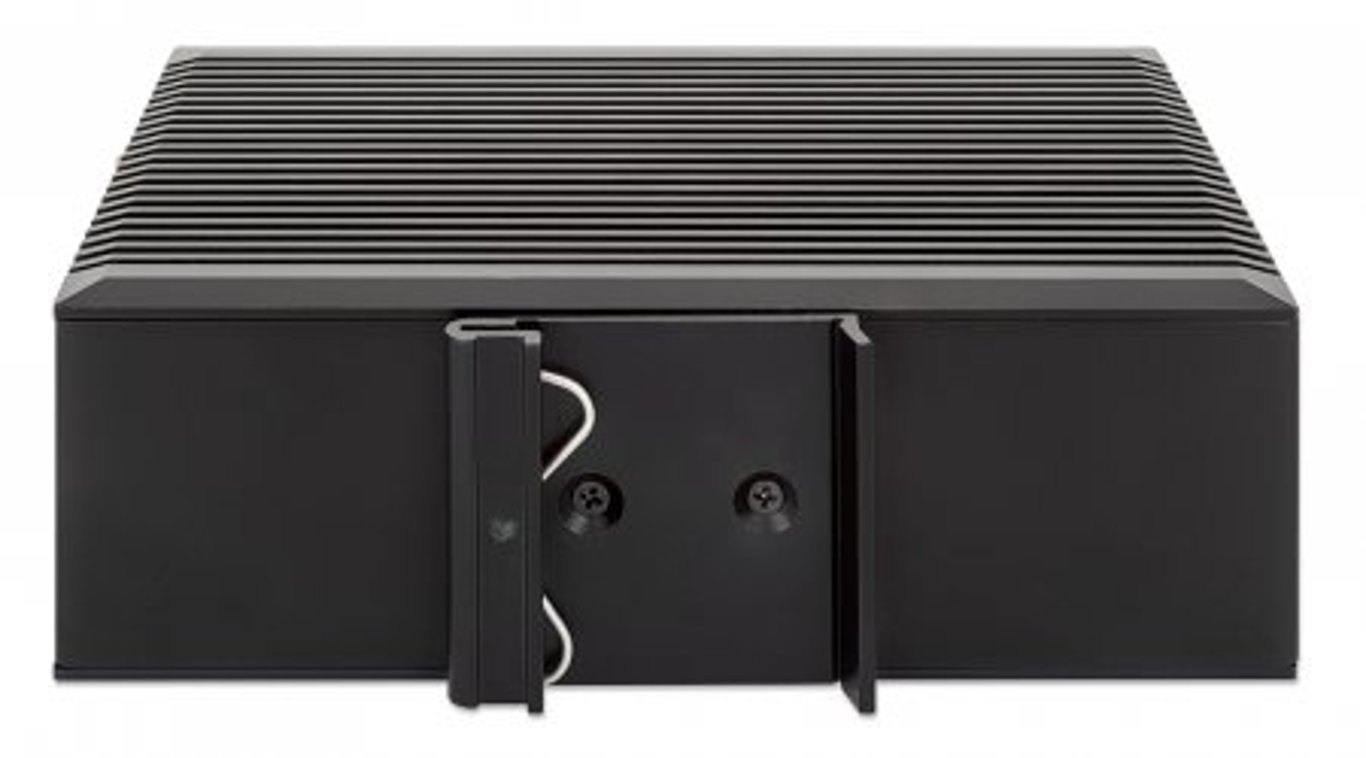

Can be mounted on a DIN rail
Specification
Data Transfer
Compatible with Jumbo Frames:
Yes
Features
Voltage:
The voltage required to power the device.
12 - 58 V
Wavelength:
The shortest distance between two repeating segments of a wave. Wavelength determines a wave’s characteristics; for example, red light has a different wavelength than blue light.
1310 nm
Structure of a single-mode optical fiber:
Single
Certificates:
FCC Class B, CE, RoHS
Network
Supported network protocols:
Network protocols tested and compatible with this product
UTP/STP
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10,100 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3u
Supported cable types:
Cat5e
Ethernet interface type:
Fast Ethernet
Ports and Interfaces
Terminal port blocking:
Yes
Performance
Supported fiber optic cable diameters:
8/125.8.3/125.8.7/125.10/125 µm
Maximum transfer distance:
The maximum distance over which data can be transmitted.
20,000 m
Tx power (minimum):
-9 dBmW
Tx power (maximum):
-3 dBmW
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Case material:
The material the product's casing is made of.
Metal
Product color:
Color, e.g., red, blue, green, black, white.
Black
Ergonomics
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
600 g
Product depth:
Distance from the front to the back of the item.
143 mm
Product height:
Product height.
48 mm
Product width:
Width measurement.
104 mm
Package Contents
User Manual:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-40 to 75 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-40 to 85 °C
Relative humidity range:
5 - 90%
Logistics data
Harmonized System (HS) code:
85176990
