INTELLINET
Intellinet 508544 850 nm Multifunction Network Converter
Wired
550 m 850 nm
Number of Ethernet LAN (RJ-45) ports: 1
Multifunctional Number of ports: 2 SC 50/125, 62.5/125 µm
Specification
Data Transfer
Compatible with Jumbo Frames:
Yes
Jumbo Frames Extension:
9,2
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Wavelength:
The shortest distance between two repeating segments of a wave. Wavelength determines a wave’s characteristics; for example, red light has a different wavelength than blue light.
850 nm
Structure of a single-mode optical fiber:
Multifunctional
Certificates:
FCC Class B, CE, RoHS, UKCA, NDAA
Network
Supported network protocols:
Network protocols tested and compatible with this product
UTP/STP
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Supported cable types:
Cat5e
Quality of Service (QoS):
Yes
Ethernet interface type:
Fast Ethernet, Gigabit Ethernet
Full-duplex transmission:
Two-way transmission is a connection in which information can be sent and received in both directions. The transmitter and receiver can switch roles or perform both functions simultaneously.
Full, Half-Duplex
Auto-Negotiation:
Yes
VLAN support:
A virtual local area network (VLAN) consists of several computers and switches. It is a computer network that is logically separated within another, larger physical LAN.
Yes
Link Failure Reporting (LFP):
Yes
Ports and Interfaces
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of ports:
Number of cable sockets.
2
Performance
Fiber-optic connector:
A fiber optic connector that allows for faster connection and disconnection than splicing. The connectors automatically engage and align the fiber cores so that light can pass through them. Better connectors lose very little light due to fiber reflection. In total, approximately 100 types of optical fibers have been manufactured.
SC
Supported fiber optic cable diameters:
50/125, 62.5/125 µm
Maximum transfer distance:
The maximum distance over which data can be transmitted.
550 m
Tx power (minimum):
-9 dBmW
Tx power (maximum):
-3 dBmW
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Case material:
The material the product's casing is made of.
Metal
Power

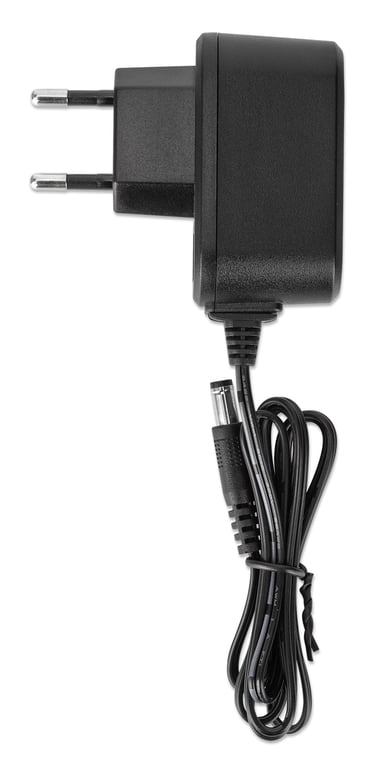

External power adapter:
Yes
Ergonomics

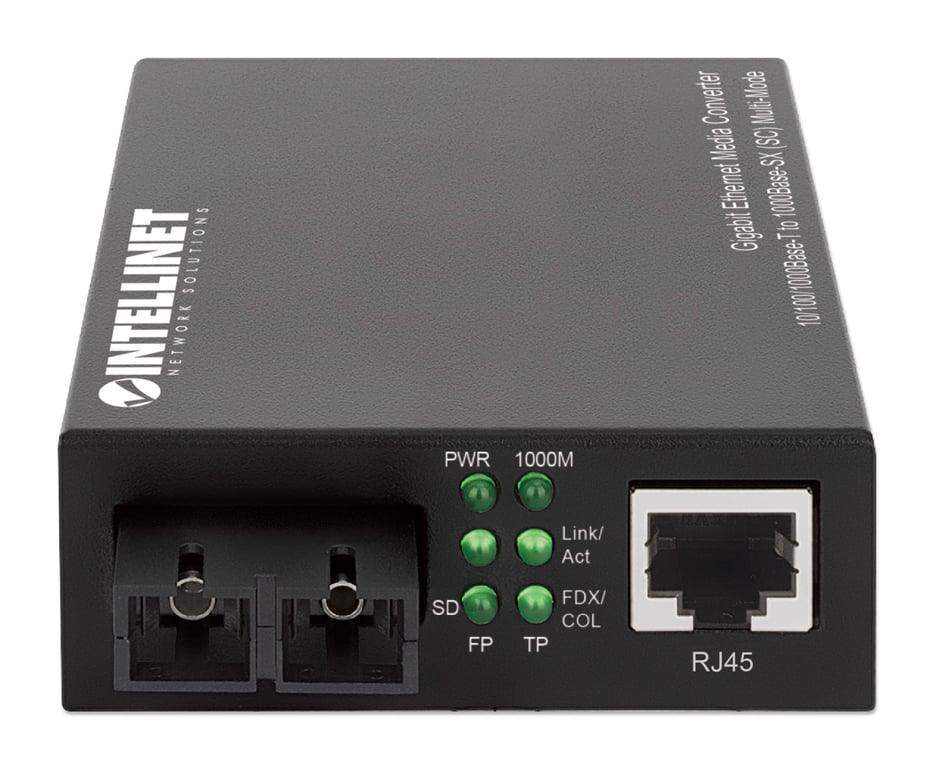

LEDs:
LAN, Link, Power, Signal Strength
Weight and Dimensions
Product depth:
Distance from the front to the back of the item.
70 mm
Product height:
Product height.
26 mm
Product width:
Width measurement.
94 mm
Packaging data
AC power adapter:
Yes
Quick Installation Guide:
Yes
Package Contents
User Manual:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-10 to 55 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-40 to 70 °C
Relative humidity range:
5 - 90%
Technical Details
Warranty Period:
3 years
