INTELLINET

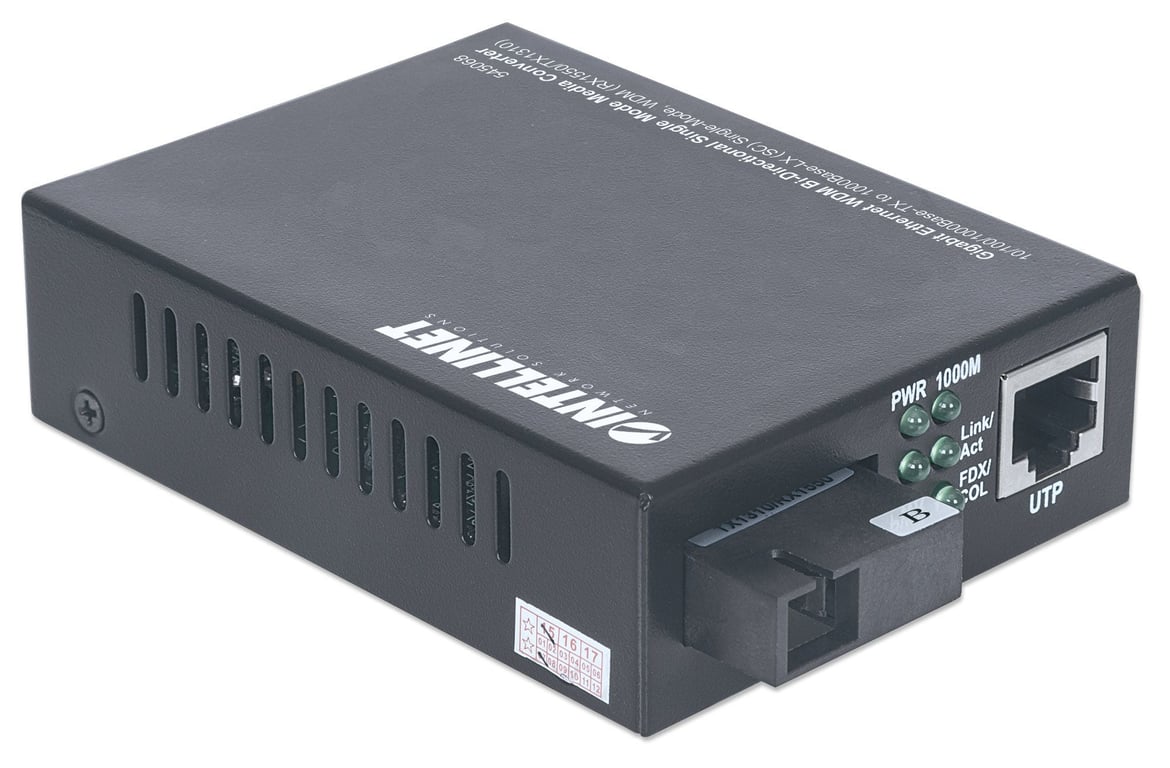

Intellinet 545068 1000 Mbit/s Network Converter, Single, Black
A single-mode SC optical port with dual-wavelength support enables connections up to 20 km
For use with the WDM Gigabit Single-Mode Bidirectional Media Converter, model 545075
Data transfer rate: 10/100/1000 Mb/s
WDM technology—transmitting data for transmitted and received signals over the same optical fiber at different wavelengths
Specification
Fiber Optic
Fiber Ethernet Cabling Technology:
1000BASE‑LX
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
1000 Mbit/s
Operating voltage:
5 V
Output current:
1.2 A
Structure of a single-mode optical fiber:
Single
Certificates:
FCC Class A, CE
Network
Output Interface Converter:
A converter transforms one form of a signal into another; for example, an A/D converter converts an analog signal into a digital one. The converter’s input interface is where the converter connects to an external device.
10Base-T, 100Base-TX, 1000Base-TX
Input Interface Converter:
1000Base-LX
Copper Ethernet Cabling Technology:
10BASE-T, 100BASE-TX, 1000BASE-TX
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Supported cable types:
Cat5
Automatic MDI/MDI-X:
MDI (Medium Dependent Interface) describes the interface (both physical and electrical) in a computer network. The Auto-MDIX interface automatically selects between MDI and MDI-X, allowing for connection using either a straight-through or crossover cable, regardless of whether the computers are connected directly or via a hub or switch.
Yes
Ethernet interface type:
Gigabit Ethernet
Full-duplex transmission:
Two-way transmission is a connection in which information can be sent and received in both directions. The transmitter and receiver can switch roles or perform both functions simultaneously.
Full
Ports and Interfaces
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of ports:
Number of cable sockets.
1
DC output jack:
Connecting the device to a power source.
Yes
Performance
Fiber-optic connector:
A fiber optic connector that allows for faster connection and disconnection than splicing. The connectors automatically engage and align the fiber cores so that light can pass through them. Better connectors lose very little light due to fiber reflection. In total, approximately 100 types of optical fibers have been manufactured.
SC
Supported fiber optic cable diameters:
8.3/125, 8.7/125, 8/125, 10/125 µm
Maximum transfer distance:
The maximum distance over which data can be transmitted.
20,000 m
Tx power (minimum):
-8 dBmW
Tx power (maximum):
-3 dBmW
Sensitivity:
A measure of a device’s response to slight changes or signals.
-22 dBmW
Wavelength-division multiplexing (WDM):
Yes
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
100,000 h
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Case material:
The material the product's casing is made of.
Metal
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
External power adapter:
Yes
Maximum power consumption:
The maximum amount of power the device consumes.
5 W
Ergonomics
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
180 g
Product depth:
Distance from the front to the back of the item.
105 mm
Product height:
Product height.
25 mm
Product width:
Width measurement.
69 mm
Packaging data
AC power adapter:
Yes
Package Contents
User Manual:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–50 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 to 70 °C
Relative humidity range:
10 - 80%
Logistics data
Harmonized System (HS) code:
85176990
