LANCOM SYSTEMS

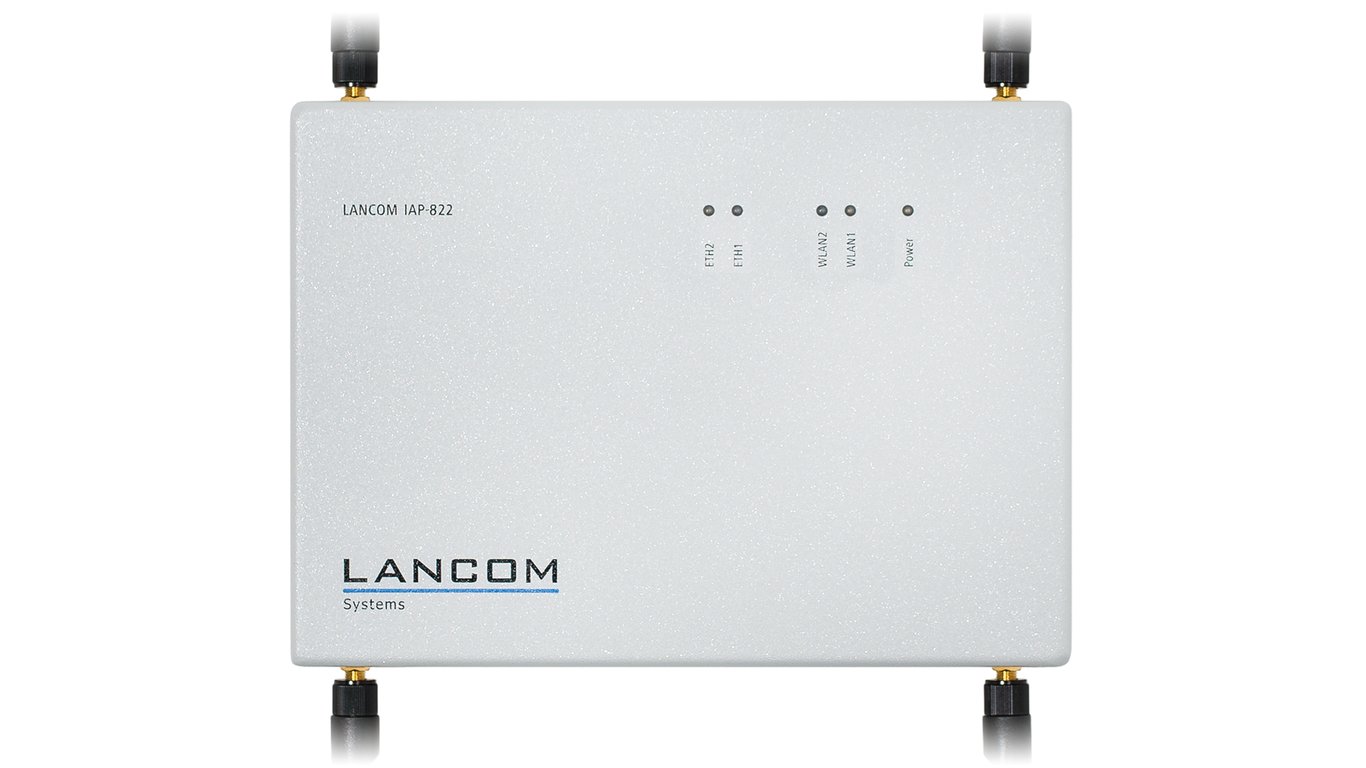

LANCOM IAP-822 1000 Mbit/s Gray PoE Support
2.4 GHz
5 GHz 867 Mbit/s
Maximum data transfer rate: 1000 Mbit/s
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11u, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Specification
Protocols
Management Protocols:
SSL, SSH, HTTPS, SNMP, Telnet, TFTP, SNMP, HTTP
Route Selection Protocol:
RIP-1, RIP-2
Mouse
Frequency band:
A small portion of the radio frequency spectrum, covering channels designated for specific purposes, such as FM radio and cellular networks for connecting to cell phones.
2.4 - 2.4835, 5.15 - 5.7 GHz
Features
2.4 GHz:
Yes
5 GHz:
Yes
6 GHz:
No
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
1000 Mbit/s
Maximum data transfer rate (5 GHz):
867 Mbit/s
Data throughput:
250 Mbit/s
Automatic channel selection:
Yes
Fast roaming:
Yes
Operating modes:
Access Point (AP), Bridge, Client
Maximum Relevance Coefficient (MRC):
Yes
Maximum Likelihood Detection (MLD):
Yes
Dynamic Frequency Selection (DFS):
Yes
DHCP client:
Whether the product uses DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Yes
DHCP server:
A server is a system that responds to requests from an entire computer network, providing support for it. DHCP servers use the Dynamic Host Configuration Protocol (DHCP), which is a standardized network protocol used by servers on an IP network to assign IP addresses to computers. The purpose of DHCP is to automate IP address configuration so that it can take place without the need for a network administrator’s involvement. IP addresses are assigned to a computer for a certain period of time, after which the computer must renew its IP address or obtain a new one.
Yes
Fibre Channel Protocols:
IPv4:
DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC, RTP, SNMP, SNMPv3, TFTP, TACACS+
IPv6:
NDP, SLAAC, DHCPv6, ICMPv6, DHCPv6, DNS, HTTP, HTTPS, PPPoE, RADIUS, SMTP, NTP, BGP
Maximum external scope:
The maximum distance over which the signal can be transmitted when using the device outdoors.
150 m
Maximum internal range (room):
The maximum distance over which the signal can be transmitted when using the device indoors.
30 m
Certificates:
EN 60950-1, EN 301 489-1, EN 301 489-17
EN 301 893
EN 300 328
Security
Access Control List (ACL):
Yes
IGMP snooping:
Yes
Encryption / Security:
Encryption algorithms are used for authentication, key encryption, and radio link security. The supported encryption algorithms are those that can be used with this product.
802.1x RADIUS, AES, EAP-AKA, EAP-FAST, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, HTTPS, MSCHAPv2, PEAP, SSH, SSL/TLS, WEP, WPA, WPA2
Wireless Distribution System (WDS):
Yes
Wireless Intrusion Detection System (WIDS):
Yes
Remote Authentication Dial-In User Service (RADIUS):
Yes
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11u, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Antenna type:
Antenna type, e.g., indoor, outdoor.
External
Quality of Service (QoS):
Yes
Rate limit:
Yes
Syslog:
Yes
Wi-Fi Multimedia (WMM) / (WME):
Yes
MIMO:
Yes
VLAN support:
A virtual local area network (VLAN) consists of several computers and switches. It is a computer network that is logically separated within another, larger physical LAN.
Yes
Recipient sensitivity:
5 GHz: -80 dBm @ 54 Mbit/s, IEEE 802.11an/ac: -75 dBm @ (MCS7, 20/40 MHz), -71 dBm @ (MCS9, 20/40 MHz), -68 dBm @ (MCS9, 80 MHz)
2.4 GHz: -80 dBm @ 54 Mbit/s, IEEE 802.11n: -77 dBm @ (MCS7, 20 MHz), -75 dBm @ (MCS7, 40 MHz)
Management Features
Management via the website:
Using a web application to manage specific tasks.
Yes
Reset button:
Yes
Device software updates:
Yes
Ports and Interfaces
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
2
DC output jack:
Connecting the device to a power source.
Yes
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Placement:
A location where a product can be placed, such as the floor or a wall.
Wall
Case material:
The material the product's casing is made of.
Metal
Product color:
Color, e.g., red, blue, green, black, white.
Gray
Power
PoE Support:
The device supports Power over Ethernet (PoE), a technology that transmits electrical power via Ethernet cables to network-connected peripheral devices. This allows both data and electrical power to be transmitted to devices such as wireless access points or IP cameras via a single cable.
Yes
Maximum power consumption:
The maximum amount of power the device consumes.
12.95 W
Ergonomics
LEDs:
Yes
Weight and Dimensions
Product depth:
Distance from the front to the back of the item.
152 mm
Product height:
Product height.
33 mm
Product width:
Width measurement.
210 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
2.35 kg
Package width:
The distance from one side of the package to the other.
385 mm
Package depth:
Distance from the beginning to the end of the package.
288 mm
Package height:
Distance from the top to the bottom of the package.
94 mm
Package Contents
Quantity per package:
1 item
Quick Start Guide:
Instructions, available both online and in print, that allow for quick installation and use of the product.
Yes
Cables:
LAN (RJ-45)
Installation kit:
Yes
Antenna
Antenna connector type:
How to connect the antenna to the device, e.g., using a coaxial cable.
SMA
Number of APIs:
The number of ports that allow the device to be connected to external devices.
4
Durability
IP Protection Rating:
The IP code indicates the degree of protection provided by an electrical apparatus or device against the ingress of external factors. It is published by the International Electrotechnical Commission. The IP code is a system for designating the degree of protection provided by enclosures against access to hazardous parts, the ingress of foreign solid objects, and the ingress of water, as well as a system for providing additional information related to such protection.
IP50
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-20 to 50 °C
Logistics data
Country of origin:
Country where the product was manufactured.
Germany
Harmonized System (HS) code:
85176990
Other features
Customs product code (TARIC):
85176200
Physical Security Measures:
Terminal Access Controller Access-Control System Plus (TACACS+), Password Authentication Protocol (PAP)
