LENOVO

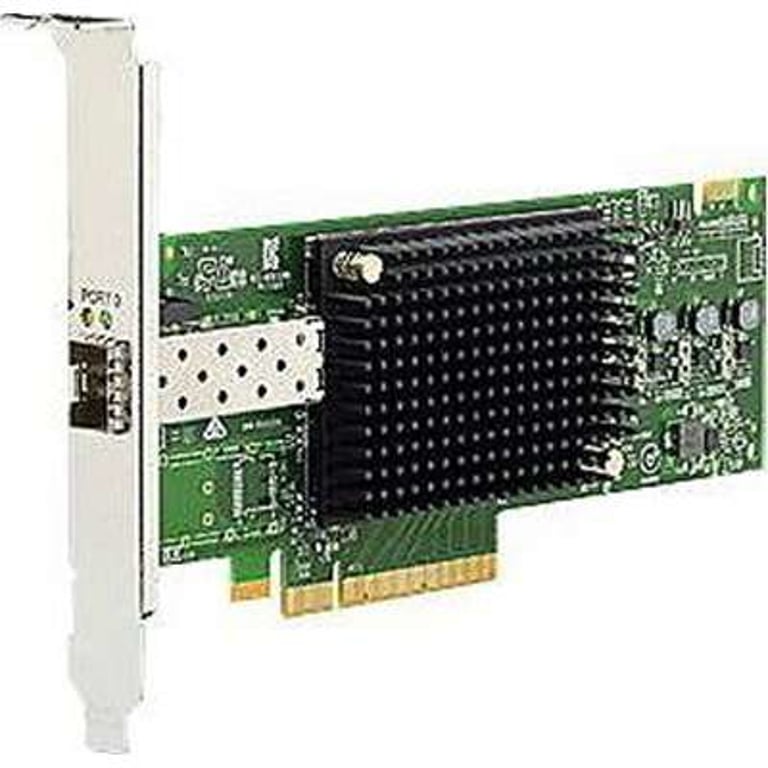

Lenovo 01CV830 Network Card, Internal, Fiber, 16,000 Mbit/s
Wired
PCIe 3.0 Fiber
16,000 Mbit/s
Internal Use: Server
Specification
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
16,000 Mbit/s
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
Thread
Purpose:
Indicates an item of which a given product may be an instance.
Server
Support for on-the-fly integration:
Opis funkcji wsparcia hot-plug dla produktu
Yes
Frame capacity:
Describes the rack capacity in units (U)
2U
Maximum range of operation:
Maximum distance at which the device can be controlled.
150 m
Hot-swap:
Yes
Certificates:
AS/NZS CISPR22:2009+A1, Class A
Australian EMC Framework (RCM)
cUR recognized to CSA 22.2, No. 60950-1-07
EN55022:2010, Class A
EN55024:2010
EN55032:2012
EU (CE Mark)
FCC Rules, Part 15, Class A
Industry Canada, ICES-003, Class A
Japan VCCI, Class A
Korea MSIP, Class A
RoHS Compliant (Directive 2011/65/EU)
TÜV certified to EN 60950-1+A11+A1+A12+A2
Taiwan BSMI, Class A
UL recognized to UL 60950-1, 2nd Edition
Management Features
Management via the website:
Using a web application to manage specific tasks.
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
PCIe
PCI version:
3.0
Number of ports:
Number of cable sockets.
1
Performance
Fiber-optic connector:
A fiber optic connector that allows for faster connection and disconnection than splicing. The connectors automatically engage and align the fiber cores so that light can pass through them. Higher-quality connectors lose very little light due to fiber reflection. In total, approximately 100 types of optical fibers have been manufactured.
FC, SFP+
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
10,000,000 h
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
Yes
Rack-mounting options:
A type of mounting that secures devices to shelves and stands.
Yes
Product color:
Color, e.g., red, blue, green, black, white.
Black, Green, Silver
System Requirements
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Red Hat Enterprise Linux 6.0, Red Hat Enterprise Linux 7.0, SUSE Linux 11, SUSE Linux 12.0
Supported server operating systems:
Windows Server 2012, Windows Server 2012 R2
Other supported operating systems:
VMware vSphere ESXi
Ergonomics
LEDs:
Yes
Weight and Dimensions
Product depth:
Distance from the front to the back of the item.
168 mm
Product height:
Product height.
69 mm
Phone features
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes
Packaging data
Package type:
Product packaging type, e.g., box.
Box
Package Contents
Quantity per package:
1 item
Mounting brackets included:
Yes
Low-profile rail:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–55 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 to 85 °C
Relative humidity range:
5 - 95%
Logistics data
Harmonized System (HS) code:
85176990
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Other features
PCI-SIG* SR-IOV compliant:
Yes
Supported Products:
Other products that can be used with this device.
System x3500 M5 Type 5464
System x3550 M5 Type 5463
System x3550 M5 Type 8869
System x3650 M5 Type 5462
System x3650 M5 Type 8871
System x3750 M4 Type 8753
System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
