LEVELONE

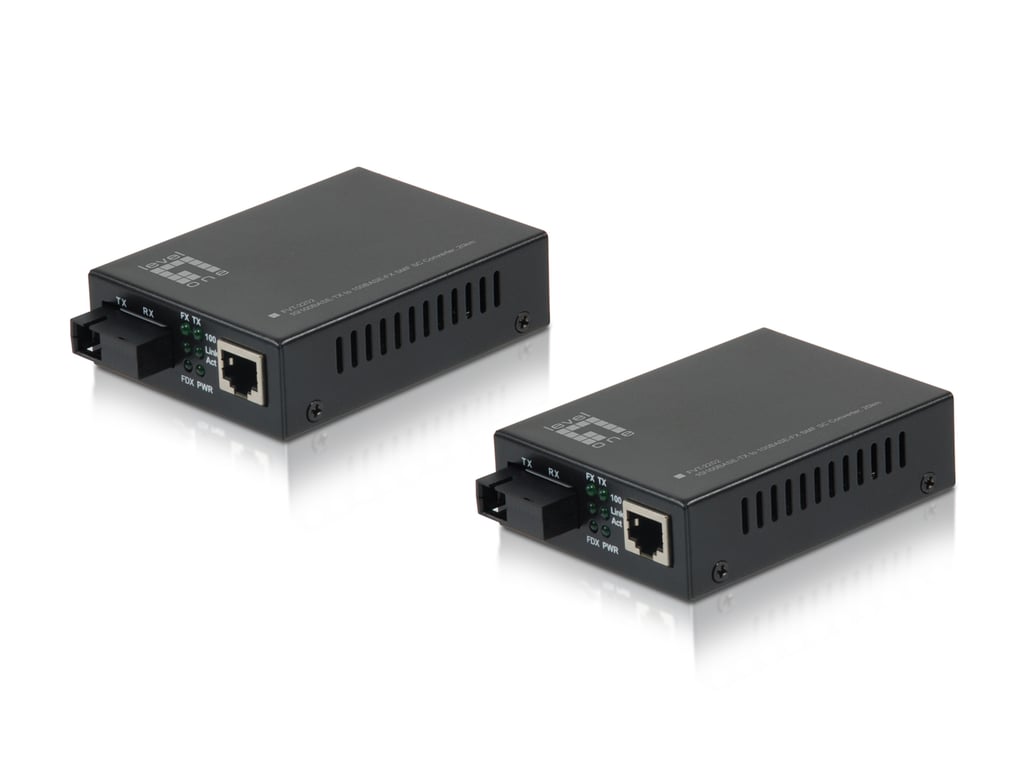

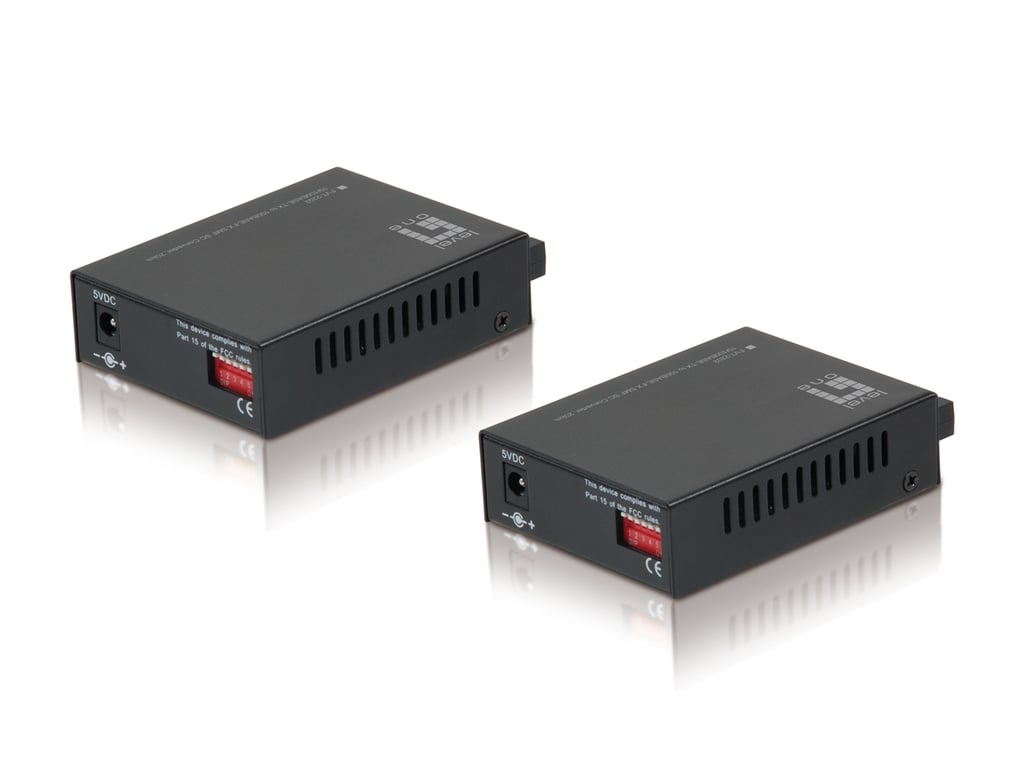

LevelOne FVT-2202 100 Mbit/s Network Converter, Black
Wired
100 Mbit/s 20,000 m
10BASE-T, 100BASE-TX
100BASE-FX
Add useful accessories
Specification
Fiber Optic
Fiber Ethernet Cabling Technology:
100BASE-FX
Data Transfer
Store-and-forward:
Yes
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
100 Mbit/s
Voltage:
The voltage required to power the device.
5 V
Input current:
1 A
Certificates:
CE, FCC
Network
Copper Ethernet Cabling Technology:
10BASE-T, 100BASE-TX
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10,100 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Supported cable types:
Cat5
Support for LLCF (Link Loss Carry Forward):
Yes
Support for LLR (Link Loss Return):
Yes
Flow control support:
Yes
Automatic MDI/MDI-X:
MDI (Medium Dependent Interface) describes the interface (both physical and electrical) in a computer network. The Auto-MDIX interface automatically selects between MDI and MDI-X, allowing for connection using either a straight-through or crossover cable, regardless of whether the computers are connected directly or via a hub or switch.
Yes
Ethernet interface type:
Fast Ethernet
Full-duplex transmission:
Two-way transmission is a connection in which information can be sent and received in both directions. The transmitter and receiver can switch roles or perform both functions simultaneously.
Full, Half-Duplex
Auto-Negotiation:
Yes
Ports and Interfaces
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of ports:
Number of cable sockets.
1
Performance
Fiber-optic connector:
A fiber optic connector that allows for faster connection and disconnection than splicing. The connectors automatically engage and align the fiber cores so that light can pass through them. Higher-quality connectors lose very little light due to fiber reflection. In total, approximately 100 types of optical fibers have been manufactured.
SX
Supported fiber optic cable diameters:
8.3/125.9/125.10/125 µm
Maximum transfer distance:
The maximum distance over which data can be transmitted.
20,000 m
Wavelength-division multiplexing (WDM):
Yes
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Black
Ergonomics
LEDs:
Function, Link, Power
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
420 g
Product depth:
Distance from the front to the back of the item.
70 mm
Product height:
Product height.
25 mm
Product width:
Width measurement.
94 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
914 g
Quick Installation Guide:
Yes
Package width:
The distance from one side of the package to the other.
235 mm
Package depth:
Distance from the beginning to the end of the package.
125 mm
Package height:
Distance from the top to the bottom of the package.
55 mm
Package type:
Product packaging type, e.g., box.
Blister
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-40 to 75 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-10 to 55 °C
Relative humidity range:
5 - 90%
Logistics data
Width of the collection box (external):
480 mm
Length of the main (outer) box:
360 mm
Height of the reference box (external):
390 mm
Country of origin:
Country where the product was manufactured.
China
Harmonized System (HS) code:
85176990
Gross weight of the main (outer) case:
16.2 kg
Products in the main (outer) box:
36 items
