LEVELONE

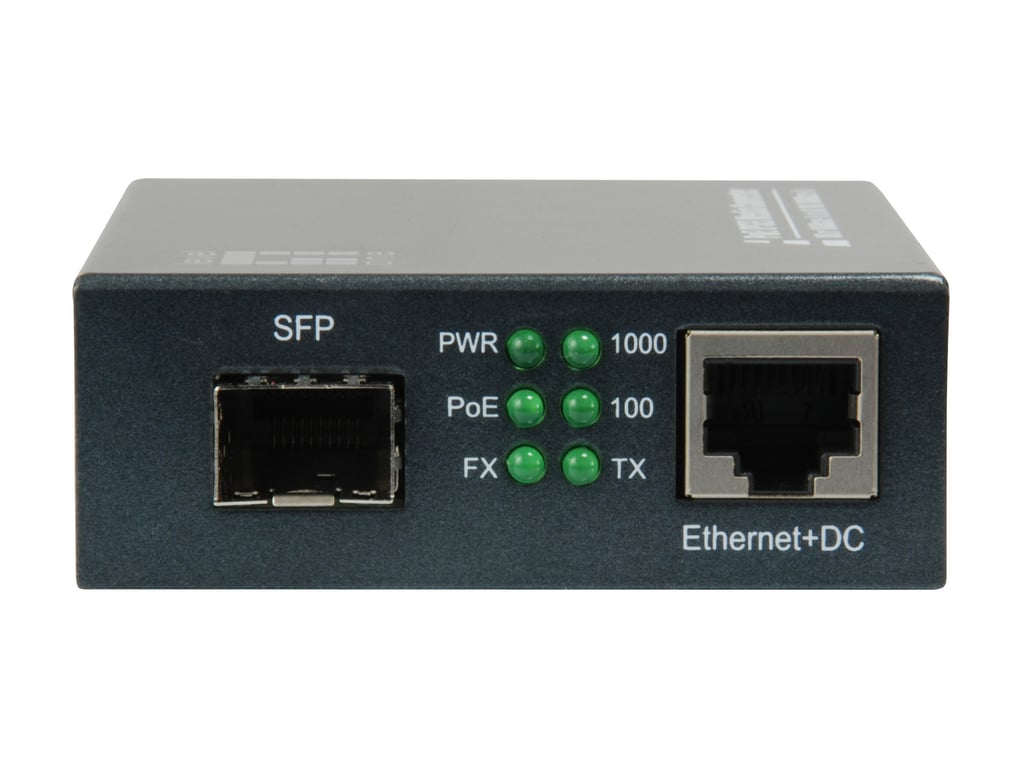

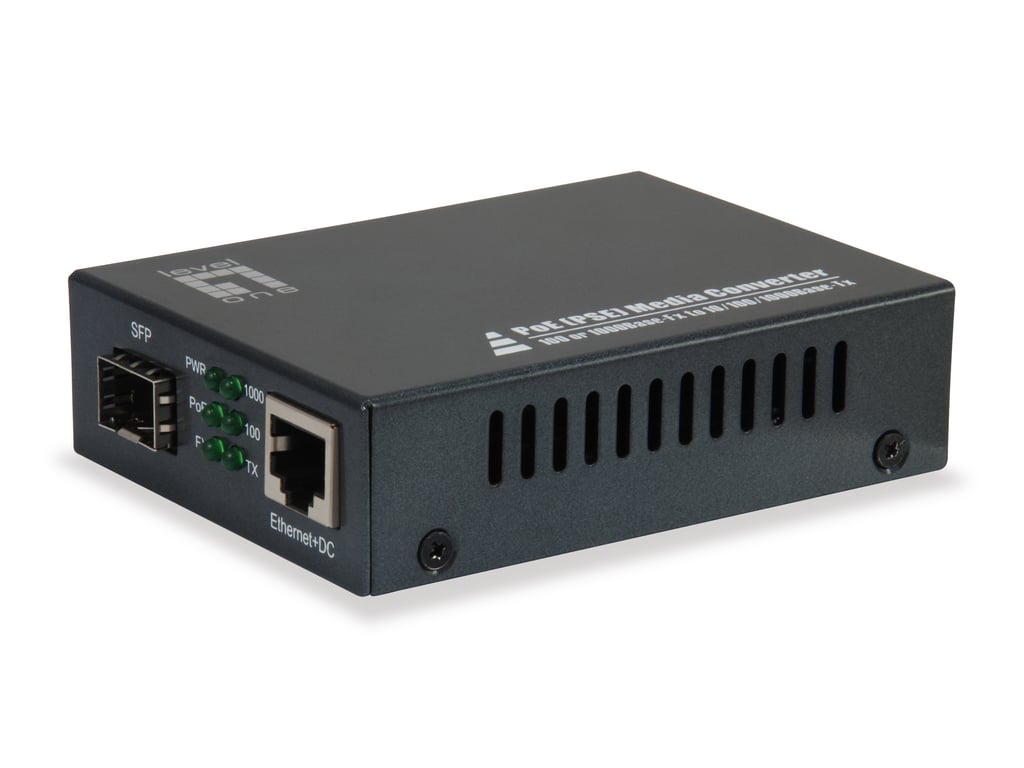

LevelOne GVT-2012 1000 Mbit/s Network Converter, Black
Wired
1000 Mbit/s
10BASE-T, 100BASE-TX, 1000BASE-T
1000BASE‑LX, 1000BASE‑SX
Add useful accessories
Specification
Fiber Optic
Fiber Ethernet Cabling Technology:
1000BASE‑LX, 1000BASE‑SX
Data Transfer
Store-and-forward:
Yes
Compatible with Jumbo Frames:
Yes
Jumbo Frames Extension:
9000
Power over Ethernet (PoE)
Number of Power over Ethernet Plus (PoE+) ports:
1
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
1000 Mbit/s
Voltage:
The voltage required to power the device.
48 - 57 V
Input current:
1 A
Operating voltage:
48 V
Certificates:
CE, RoHS
Network
Output Interface Converter:
A converter transforms one form of a signal into another; for example, an A/D converter converts an analog signal into a digital one. The converter’s input interface is where the converter connects to an external device.
10Base-T, 100Base-TX, 1000Base-T
Input Interface Converter:
1000Base-LX, 1000Base-SX
Copper Ethernet Cabling Technology:
10BASE-T, 100BASE-TX, 1000BASE-T
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Automatic MDI/MDI-X:
MDI (Medium Dependent Interface) describes the interface (both physical and electrical) in a computer network. The Auto-MDIX interface automatically selects between MDI and MDI-X, allowing for connection using either a straight-through or crossover cable, regardless of whether the computers are connected directly or via a hub or switch.
Yes
Ethernet interface type:
Gigabit Ethernet
Full-duplex transmission:
Two-way transmission is a connection in which information can be sent and received in both directions. The transmitter and receiver can switch roles or perform both functions simultaneously.
Full, Half-Duplex
Auto-Negotiation:
Yes
Ports and Interfaces
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of ports:
Number of cable sockets.
1

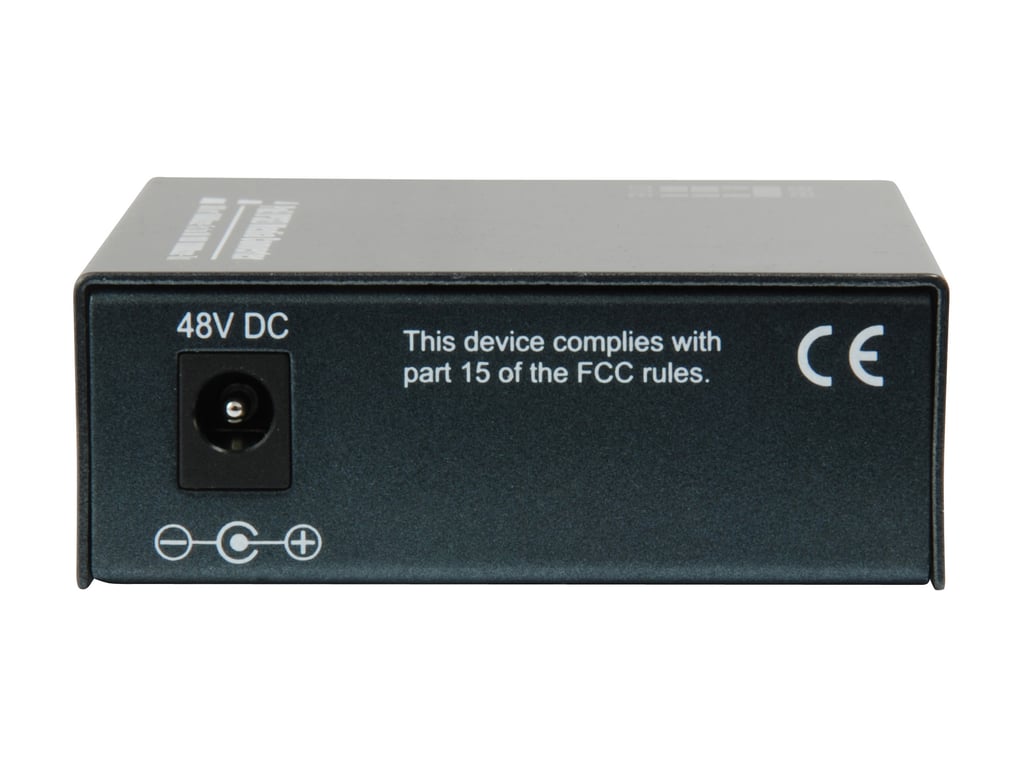

DC output jack:
Connecting the device to a power source.
Yes
Performance

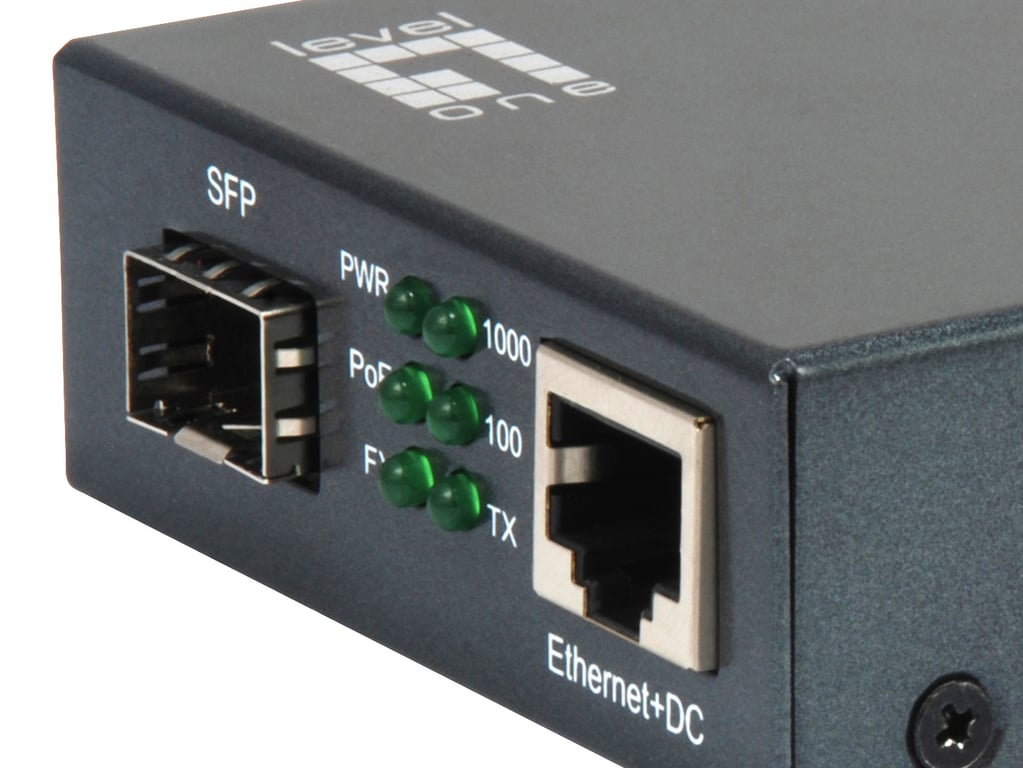

Fiber-optic connector:
A fiber optic connector that allows for faster connection and disconnection than splicing. The connectors automatically engage and align the fiber cores so that light can pass through them. Higher-quality connectors lose very little light due to fiber reflection. In total, approximately 100 types of optical fibers have been manufactured.
SFP
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
30,000 h
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
PoE Support:
The device supports Power over Ethernet (PoE), a technology that transmits electrical power via Ethernet cables to network-connected peripheral devices. This allows both data and electrical power to be transmitted to devices such as wireless access points or IP cameras via a single cable.
Yes
Ergonomics
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
200 g
Product depth:
Distance from the front to the back of the item.
94 mm
Product height:
Product height.
26 mm
Product width:
Width measurement.
70 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
500 g
Quick Installation Guide:
Yes
Package width:
The distance from one side of the package to the other.
230 mm
Package depth:
Distance from the beginning to the end of the package.
195 mm
Package height:
Distance from the top to the bottom of the package.
70 mm
Package type:
Product packaging type, e.g., box.
Box
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-10 to 60 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-40 to 85 °C
Relative humidity range:
5 - 90%
Logistics data
Width of the collection box (external):
420 mm
Length of the main (outer) box:
440 mm
Height of the reference box (external):
367 mm
Country of origin:
Country where the product was manufactured.
China
Harmonized System (HS) code:
85176990
Gross weight of the main (outer) case:
13 kg
Products in the main (outer) box:
20 items
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
