LEVELONE

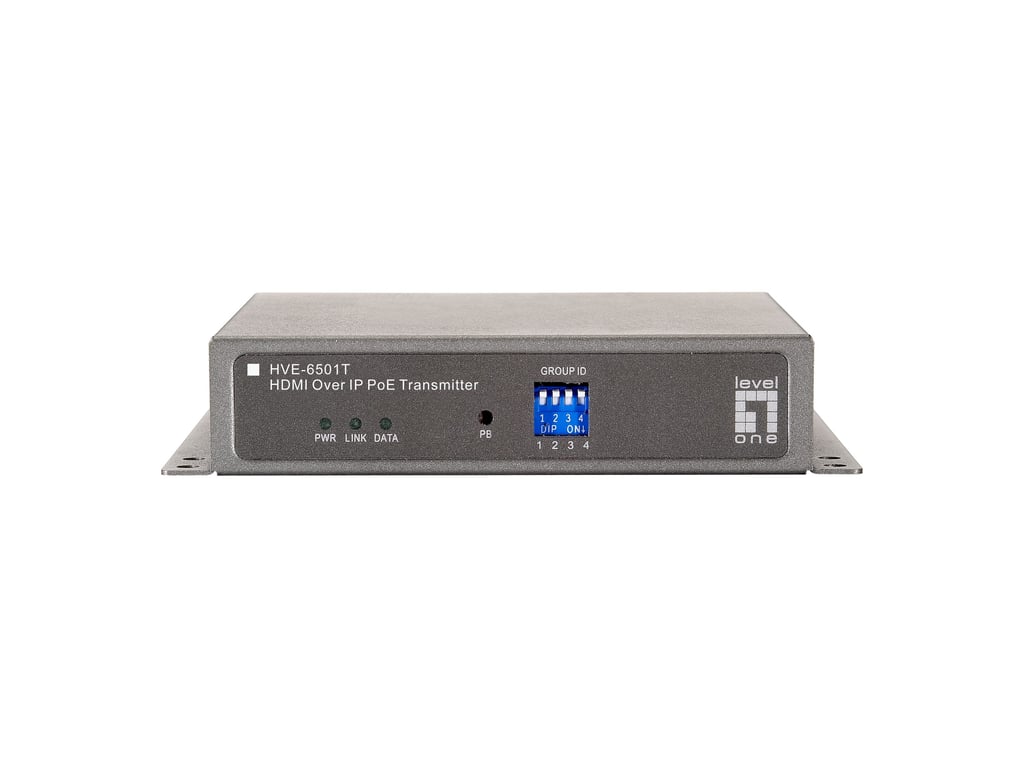

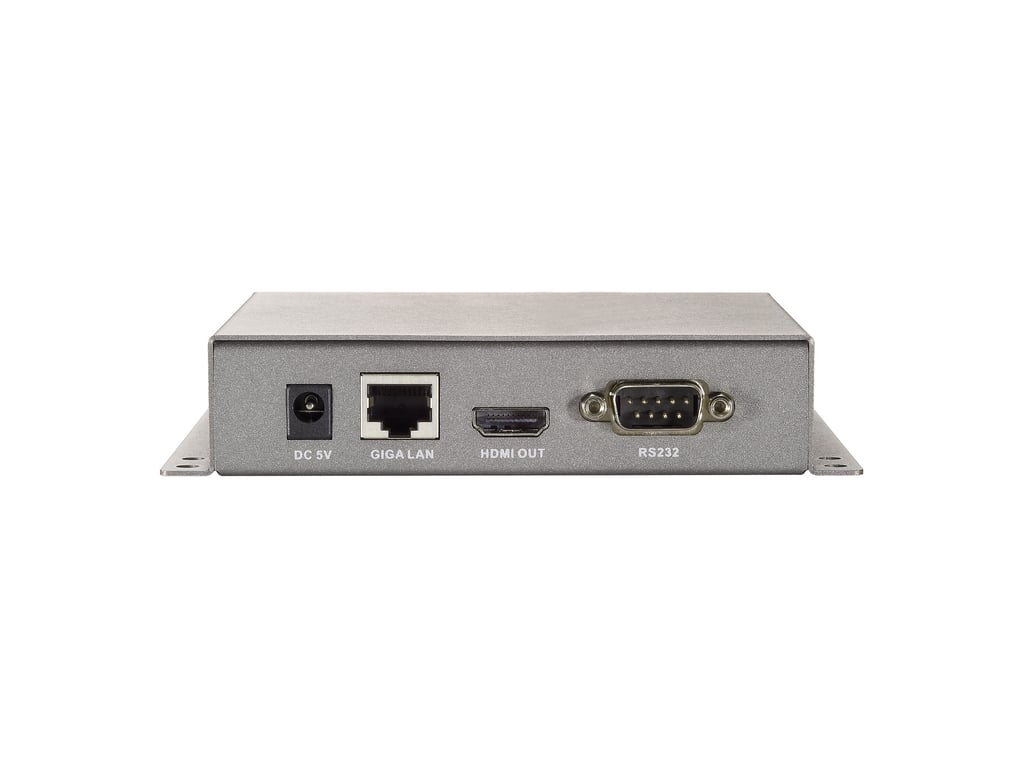

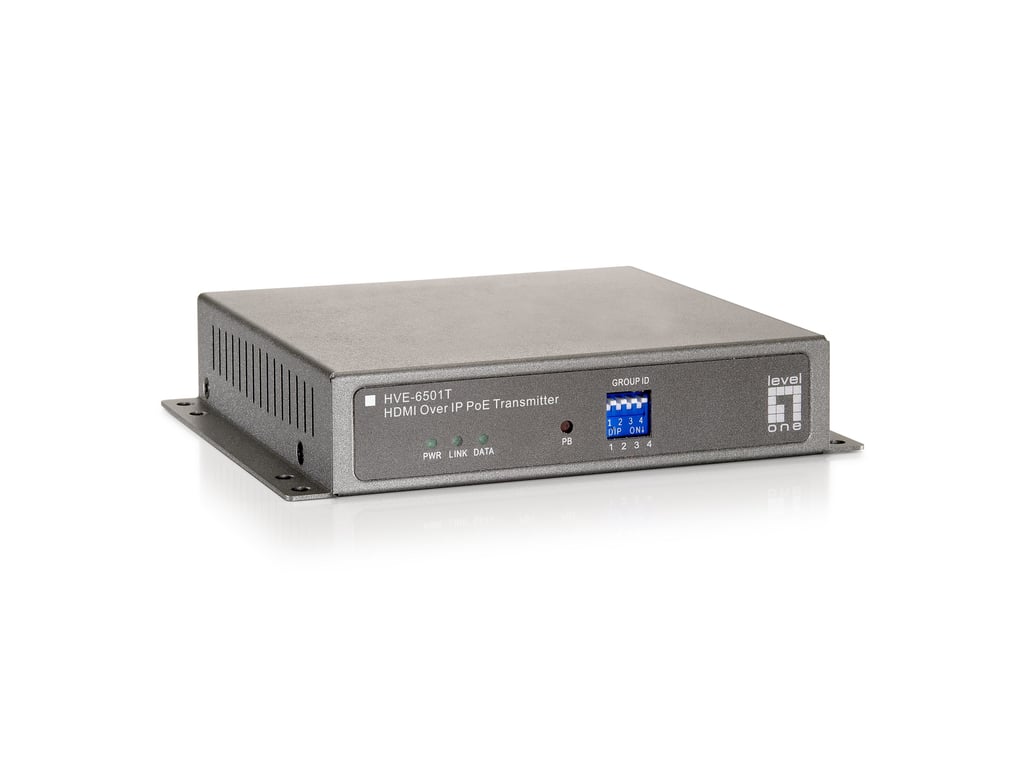

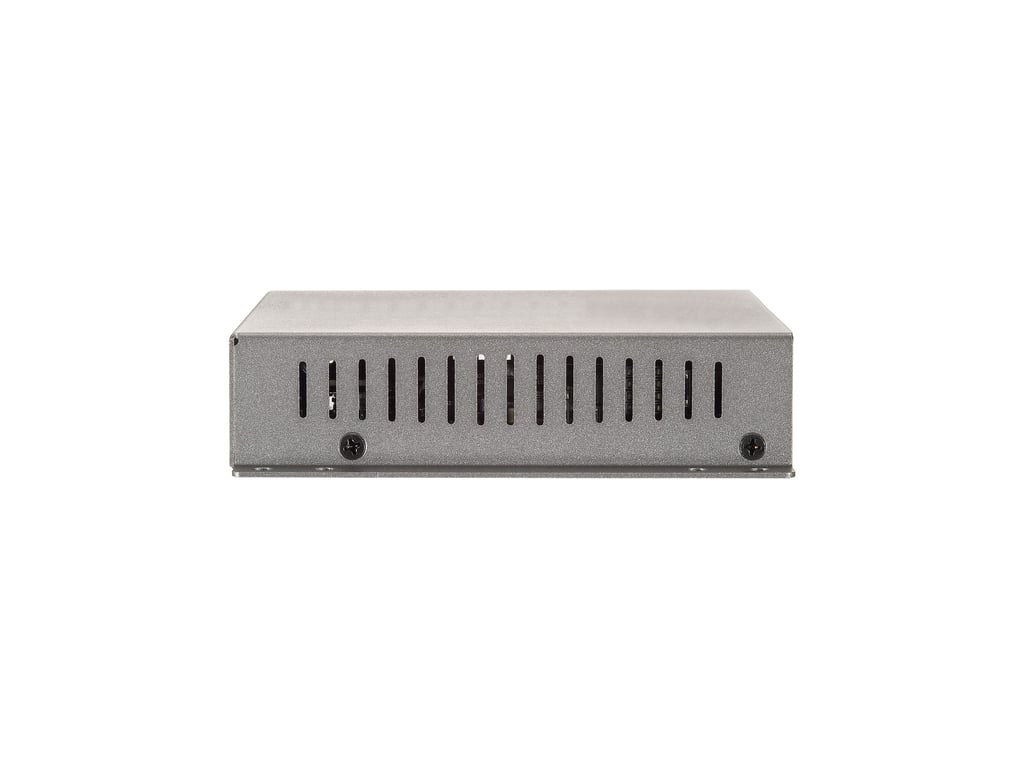

LevelOne HVE-6501T AV Extender AV Transmitter Gray
AV Transmitter 1920 x 1080 px Gray
HDCP
DC output jack
LevelOne HVE-6501T AV Extender AV Transmitter Gray
Flexible and scalable HDMI 1080p high-quality video broadcasting via Gigabit Ethernet LAN
Multicasting and broadcasting architecture, allowing for the addition of more displays without increasing LAN bandwidth load
Supports HDTV resolutions up to 1080p.
Transmits an HDMI signal over a single CAT5e/6/7 cable.
HDMI 1.3b and HDCP compliant
Support Point-to-Point, Point-to-Many, and Many-to-Many network configurations
Dual power input: 802.3af-compliant PoE & DC 5V
Up to 16 transmitters and more than 200 receivers are possible in a single system
Multicasting group with a Gigabit Ethernet switch via 802.1Q VLAN and IGMP
Built-in DIP switch to change Group ID and Utility for remotely
Multicast group with a Gigabit Ethernet switch (requires 802.1Q VLAN and IGMP functionality)
RS-232 Control Pass-Thru to control HDMI display from transmitter side
Plug-and-play installation, free utility bundle for advanced settings
Multicasting and broadcasting architecture, allowing for the addition of more displays without increasing LAN bandwidth load
Supports HDTV resolutions up to 1080p.
Transmits an HDMI signal over a single CAT5e/6/7 cable.
HDMI 1.3b and HDCP compliant
Support Point-to-Point, Point-to-Many, and Many-to-Many network configurations
Dual power input: 802.3af-compliant PoE & DC 5V
Up to 16 transmitters and more than 200 receivers are possible in a single system
Multicasting group with a Gigabit Ethernet switch via 802.1Q VLAN and IGMP
Built-in DIP switch to change Group ID and Utility for remotely
Multicast group with a Gigabit Ethernet switch (requires 802.1Q VLAN and IGMP functionality)
RS-232 Control Pass-Thru to control HDMI display from transmitter side
Plug-and-play installation, free utility bundle for advanced settings
Specification
Features
Model:
Device features.
AV Transmitter
Bypass HDCP and EDID:
Yes
Certificates:
CE, FCC
Network
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af
Supported cable types:
Cat5e, Cat6, Cat7
Video
Supported video modes:
Video modes supported by the device.
720p, 1080p
Processor
Max. resolution:
Maximum number of pixels in an image. This is usually specified in the format width x height; for example, "1024 x 768" means a width of 1024 pixels and a height of 768 pixels.
1920 x 1080 px
Ports and Interfaces
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of protection against the digital copying of audio and video content during transmission
Yes
RJ-45 outputs:
1
SCSI interface:
RS-232
Serial communication ports:
The number of serial ports on a computer or peripheral device. A serial port is a physical interface for serial communication through which data is transmitted. The term usually refers to hardware compliant with the RS-232 standard, designed to connect to a modem or similar communication device. In modern computers and peripheral devices, serial ports have largely been replaced by USB ports and other interfaces.
1
HDMI in:
HDMI input port.
1
HDMI version:
1.3
DC output jack:
Connecting the device to a power source.
Yes
Structure
Product color:
Color, e.g., red, blue, green, black, white.
Gray
Power
Operating voltage:
Specifies the range of available operating voltages
5 V
PoE Support:
The device supports Power over Ethernet (PoE), a technology that transmits electrical power via Ethernet cables to network-connected peripheral devices. This allows both data and electrical power to be transmitted to devices such as wireless access points or IP cameras via a single cable.
Yes
Electricity:
1 A
Ergonomics
LEDs:
Data Transfer, Link, Power Supply
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
800 g
Transmitter dimensions (WxDxH):
140 x 114 x 28 mm
Transmitter weight:
800 g
Product depth:
Distance from the front to the back of the item.
140 mm
Product height:
Product height.
28 mm
Product width:
Width measurement.
114 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
740 g
Package width:
The distance from one side of the package to the other.
148 mm
Package depth:
Distance from the beginning to the end of the package.
240 mm
Package height:
Distance from the top to the bottom of the package.
80 mm
Package Contents
Quick Start Guide:
Instructions, available both online and in print, that allow for quick installation and use of the product.
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–50 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-10 to 80 °C
Relative humidity range:
10 - 85%
Permissible relative humidity:
5 - 95%
Logistics data
Country of origin:
Country where the product was manufactured.
Taiwan
Technical Details
Audio support:
Yes
