LEVELONE

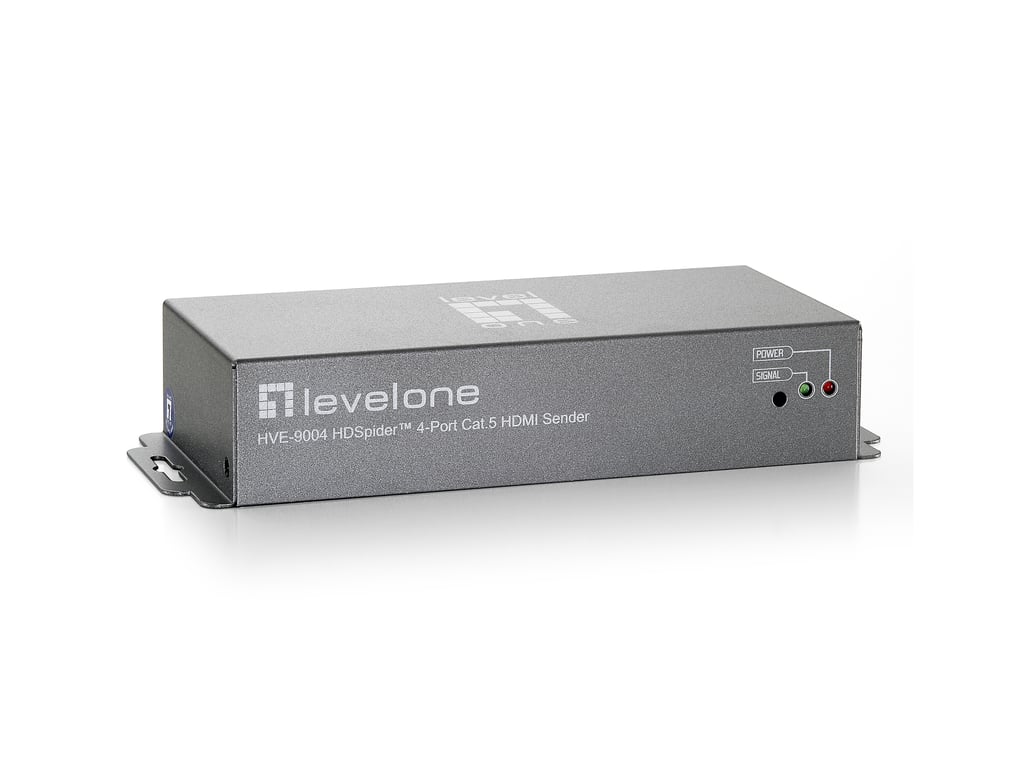

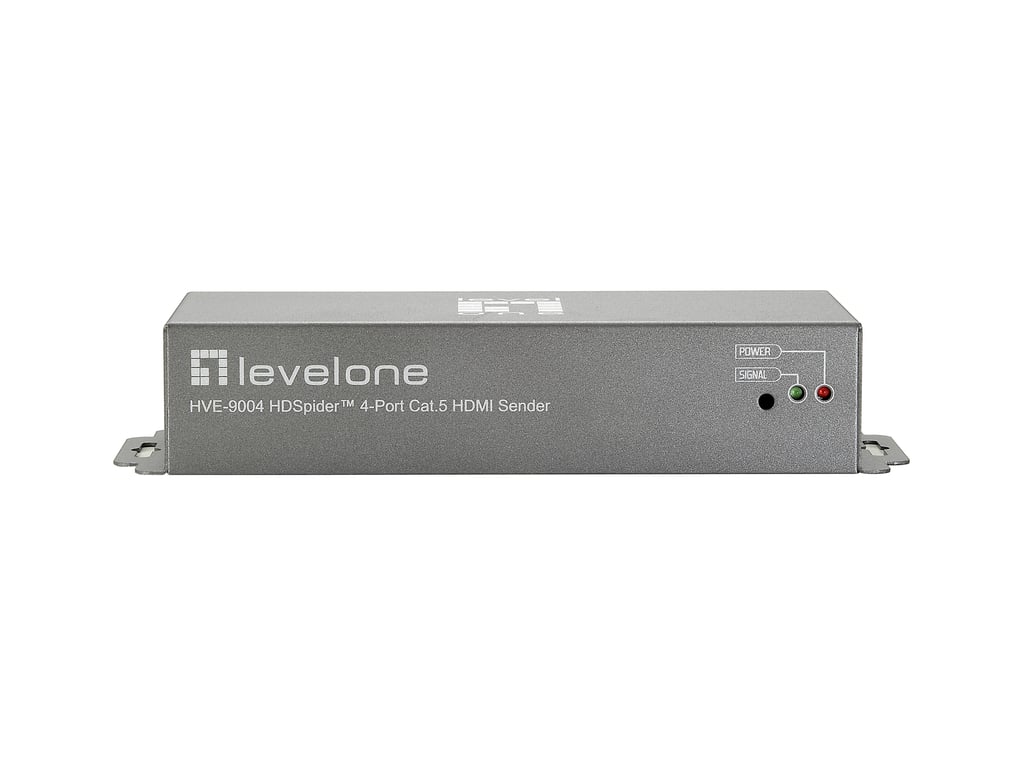

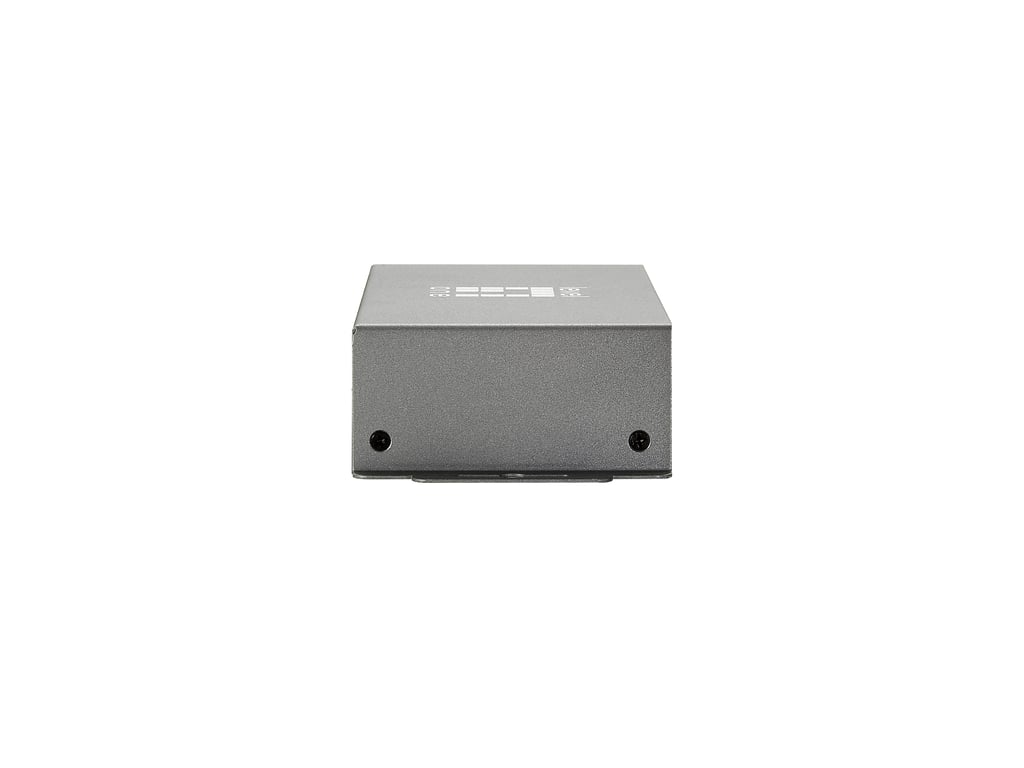

LevelOne HVE-9004 AV Extender AV Transmitter Gray
AV Transmitter 1920 x 1080 px Gray
Maximum transmission distance: 60 m
HDCP
DC output jack
LevelOne HVE-9004 AV Extender AV Transmitter Gray

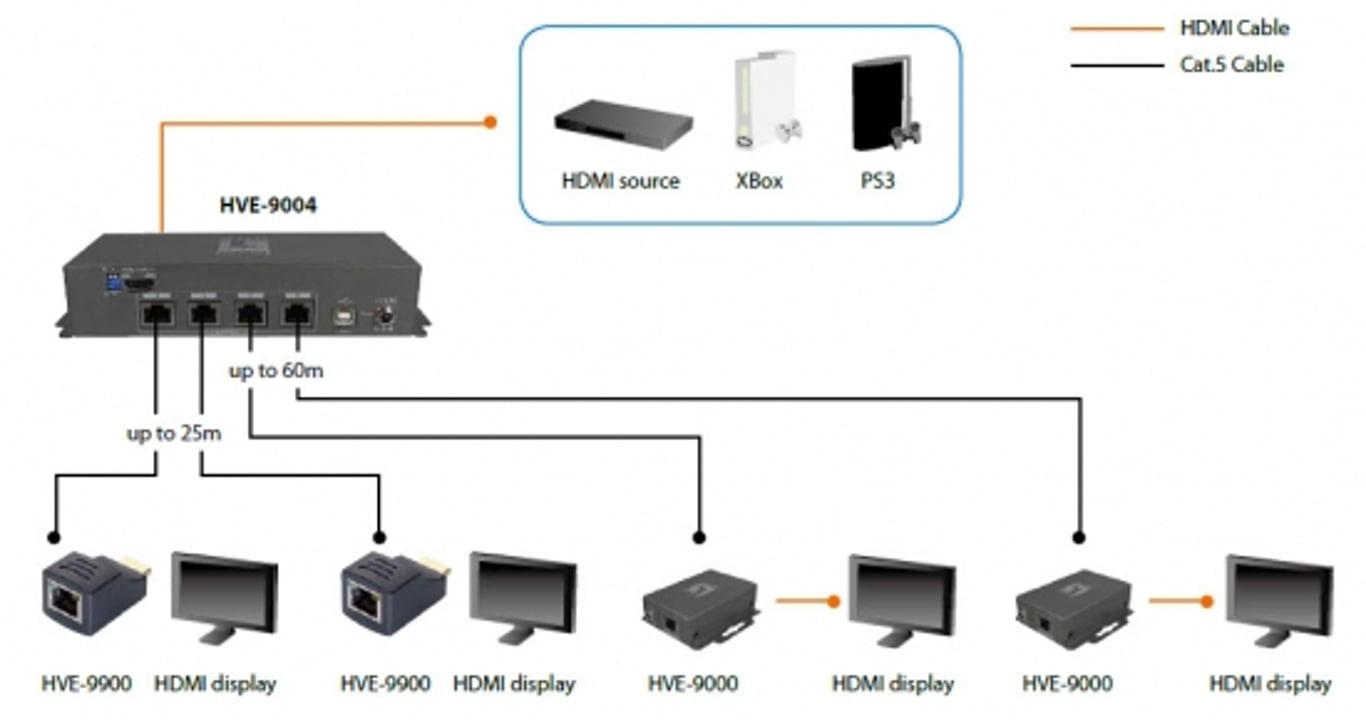

Works with Cat.5, Cat.5e, and Cat.6 Ethernet cable
Transmission distance of up to 60 meters for 1080i or 40 meters for 1080p
Minimize the cable skew using 8-level adjustable equalization knob
Provides higher speed—6.75 Gbps
HDMI Deep Color enables displays with more natural and vivid colors
HDMI 1.3c compliant
Transmission distance of up to 60 meters for 1080i or 40 meters for 1080p
Minimize the cable skew using 8-level adjustable equalization knob
Provides higher speed—6.75 Gbps
HDMI Deep Color enables displays with more natural and vivid colors
HDMI 1.3c compliant
Specification
Audio
Audio system:
A system for playing music or speech.
Omnichannel
Features
Model:
Device features.
AV Transmitter
Bandwidth:
The bandwidth between the highest and lowest frequencies. It is usually expressed in hertz (Hz). The key point is that any band of a given width can carry the same amount of information, regardless of its location in the frequency spectrum. For example, a 3-kHz bandwidth can carry a telephone conversation regardless of whether it is single-band (as in POTS telephone lines) or has a higher frequency.
225 MHz
Bandwidth:
6.75 Gbit/s
Network
Supported cable types:
Cat5, Cat5e, Cat6
Video
Supported video modes:
Video modes supported by the device.
720p, 1080i, 1080p
Processor
Max. resolution:
Maximum number of pixels in an image. This is usually specified as width x height; for example, "1024 x 768" means a width of 1024 pixels and a height of 768 pixels.
1920 x 1080 px

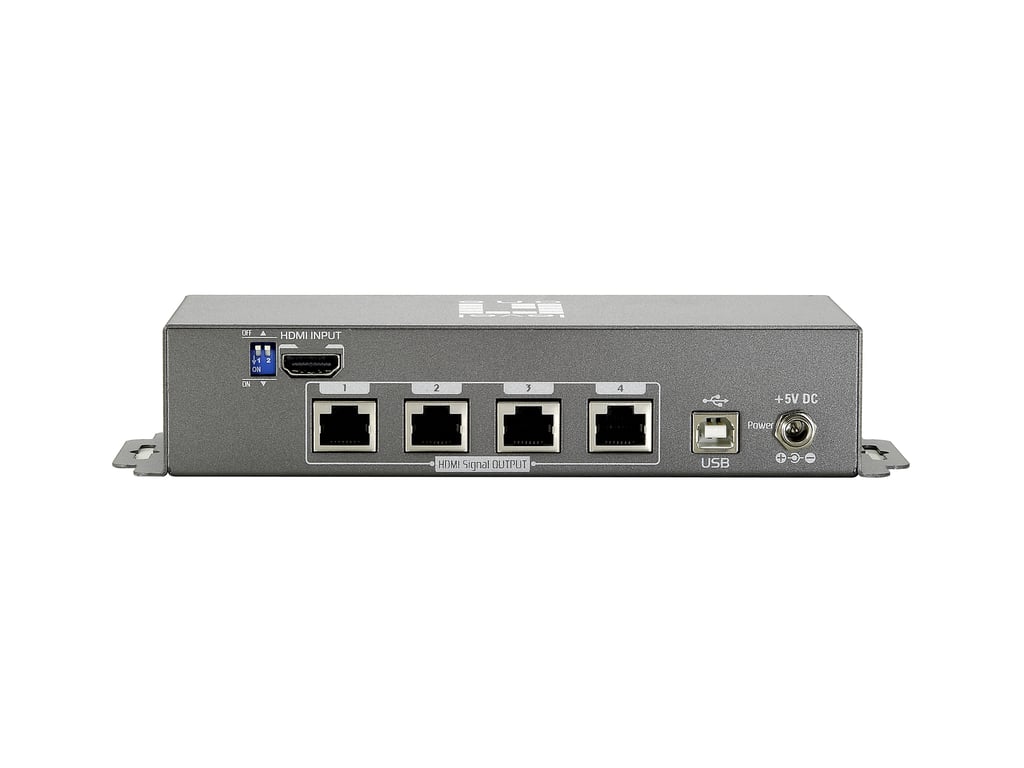

Ports and Interfaces
HDCP:
High-bandwidth Digital Content Protection (HDCP) is a form of protection against the copying of digital audio and video content during its transmission
Yes
RJ-45 outputs:
4
Supported USB type:
Type of USB port built into the device.
USB Type B
HDMI in:
HDMI input port.
1
HDMI version:
1.3c
DC output jack:
Connecting the device to a power source.
Yes
Performance
Maximum transfer distance:
The maximum distance over which data can be transmitted.
60 m
Structure
Product color:
Color, e.g., red, blue, green, black, white.
Gray
Power
External power adapter:
Yes
Operating voltage:
Specifies the range of available operating voltages
5 V
Electricity:
4 A
Maximum power consumption:
The maximum amount of power the device consumes.
10 W
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, without including the weight of accessories and/or supplies.
550 g
Product depth:
Distance from the front to the back of the item.
215 mm
Product height:
Product height.
40 mm
Product width:
Width measurement.
85 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
990 g
Package width:
The distance from one side of the package to the other.
200 mm
Package depth:
Distance from the beginning to the end of the package.
330 mm
Package height:
Distance from the top to the bottom of the package.
95 mm
Package Contents
User Manual:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–40 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 to 60 °C
Relative humidity range:
20 - 90%
Other features
Product dimensions (WxDxH):
Product dimensions (Width x Depth x Height) expressed in millimeters.
85 x 215 x 40 mm
Number of USB ports:
1
