LEVELONE

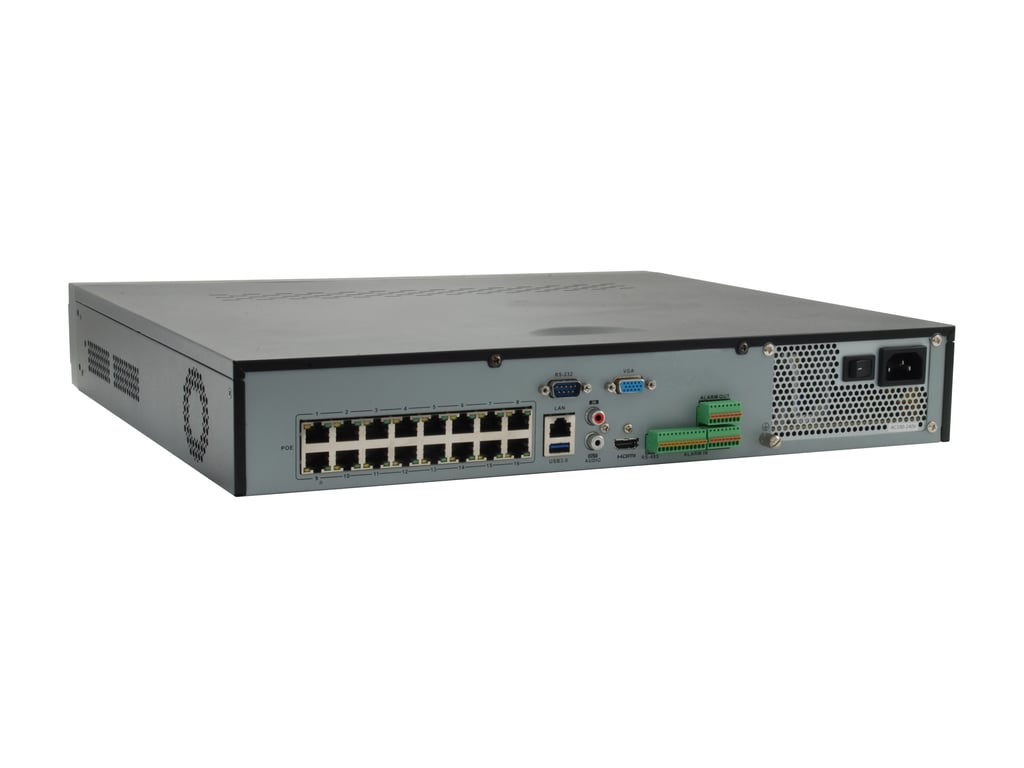

LevelOne NVR-0437 Network Video Recorder (NVR) Black
Video channel inputs: 32 channels
Number of users: 128 users
Maximum storage capacity: 24 TB HDD interface: SATA
Number of Ethernet LAN (RJ-45) ports: 18 PoE support
Add useful accessories
Specification
Power over Ethernet (PoE)

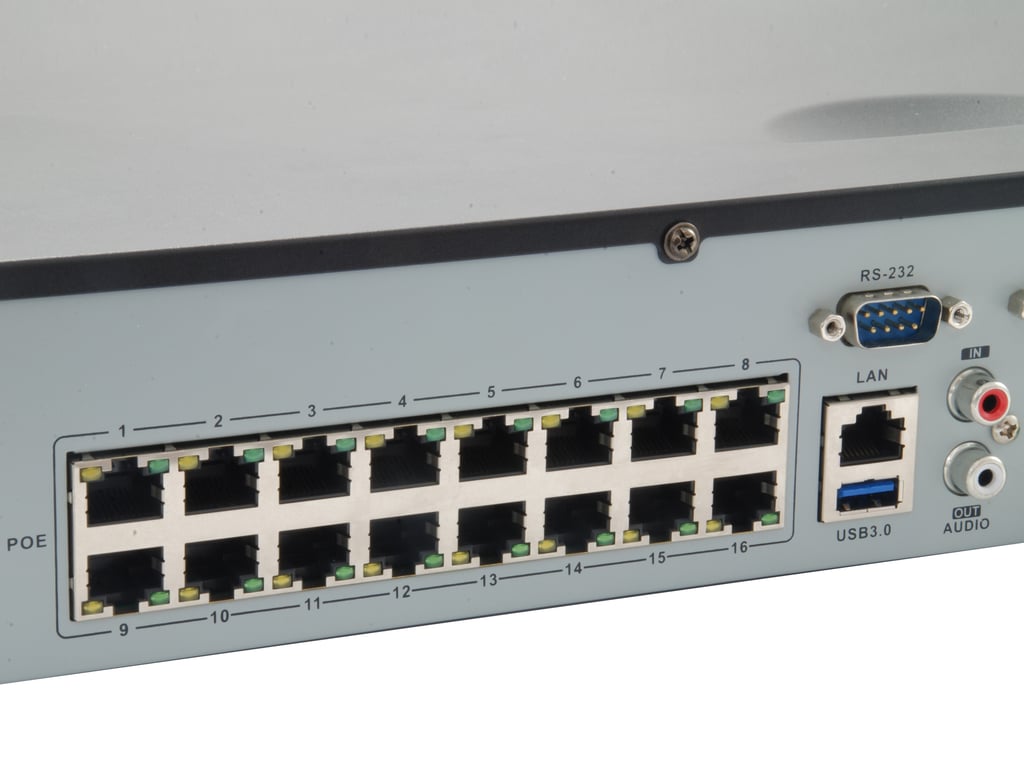

Number of Fast Ethernet (PoE) ports:
16
Features
Data throughput:
160 Mbit/s
HDD capacity:
Maximum hard drive capacity in gigabytes (1 GB = 1 billion bytes)
0 GB
HDD size:
The amount of data that can be stored on a hard drive.
3.5"
Certificates:
CE, FCC, uL
Security
Alarm input channels:
4
Alarm output channels:
16
Data storage medium
Maximum storage capacity:
The maximum amount of data that can be stored on the device.
24 TB
Network
Supported network protocols:
Network protocols tested and compatible with this product
TCP, UDP, IPv4, IPv6, HTTP, HTTPS, SMTP, NTP, SNTP
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af
Supported browsers:
List of supported browsers for this product.
Internet Explorer 9 or later
Number of users:
Number of people who can use the product.
128 users
Hard drive
HDD Interface:
The way a hard drive is connected to the rest of the computer via a bus, such as ATA or SCSI.
SATA
Multimedia
Supported video file formats:
Video formats supported by the device.
H.264, H.264+
Ports and Interfaces
RS232 interface:
Yes
HDMI output:
The device features an HDMI output.
Yes
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
2
VGA (D-Sub) outputs:
1
RCA audio connectors:
1
RCA audio outputs:
1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
18
Performance
Supported mobile operating systems:
Operating systems, such as Android and iOS, that can be used with this device.
Android, iOS
Video channel inputs:
The number of video input channels supported by the device.
32 channels.
PTZ:
Yes
PTZ Modes:
Specific point, Order of settings
Structure
Built-in switch:
A button that turns the device on or off when pressed.
Yes
Product color:
Color, e.g., red, blue, green, black, white.
Black
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
20 W
AC input voltage:
Electrical voltage.
100 - 240 V
PoE Support:
The device supports Power over Ethernet (PoE), a technology that transmits electrical power via Ethernet cables to network-connected peripheral devices. This allows both data and electrical power to be transmitted to devices such as wireless access points or IP cameras via a single cable.
Yes
Software
Installed operating system:
The type of operating system installed on the device, e.g., iOS for Apple products, Android for other mobile devices.
Embedded Linux
Ergonomics

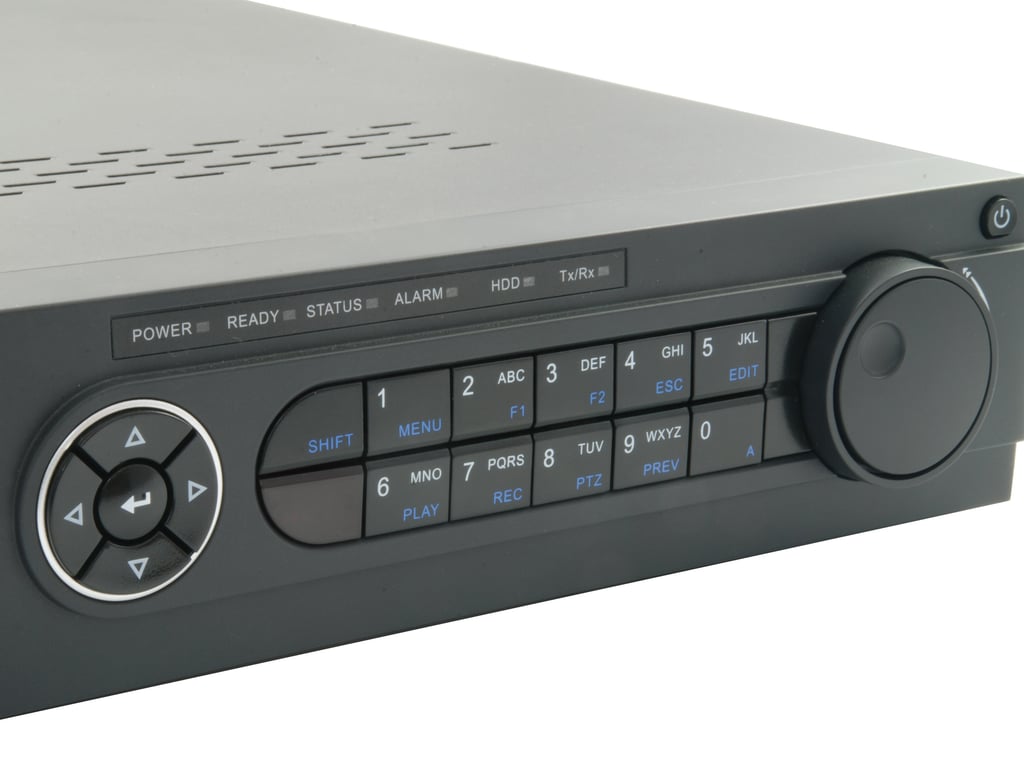

LEDs:
Alarm, HDD, Power, Ready, Reset
Memory controllers
Number of supported HDDs:
Total number of hard drives that can be used with this device.
4
Indoor unit
Porty RS-485:
1
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
3 kg
Product depth:
Distance from the front to the back of the item.
440 mm
Product height:
Product height.
69 mm
Product width:
Width measurement.
390 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
4.2 kg
Package width:
The distance from one side of the package to the other.
180 mm
Package depth:
Distance from the beginning to the end of the package.
510 mm
Package height:
Distance from the top to the bottom of the package.
520 mm
Package type:
Product packaging type, e.g., box.
Box
Package Contents
Cables:
AC power, LAN (RJ-45)
CD Manual:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-10 to 55 °C
Relative humidity range:
10 - 90%
Logistics data
Width of the collection box (external):
180 mm
Length of the main (outer) box:
510 mm
Height of the reference box (external):
520 mm
Country of origin:
Country where the product was manufactured.
China
Gross weight of the main (outer) case:
4.2 kg
Products in the main (outer) box:
1 item
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
