LEVELONE

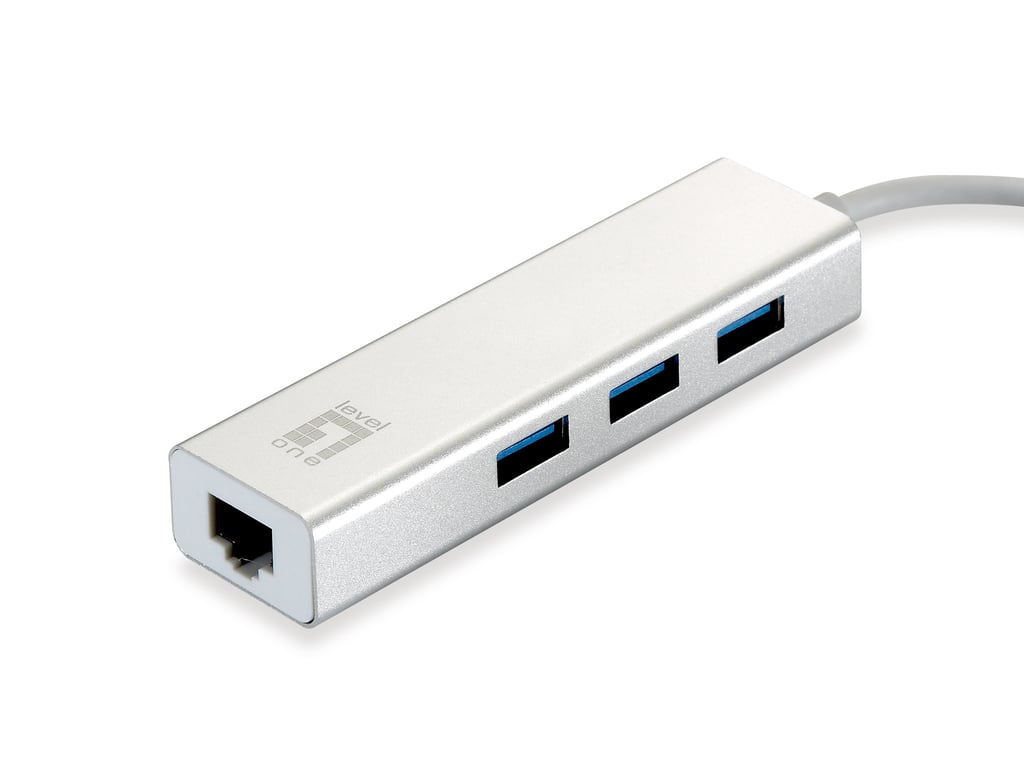

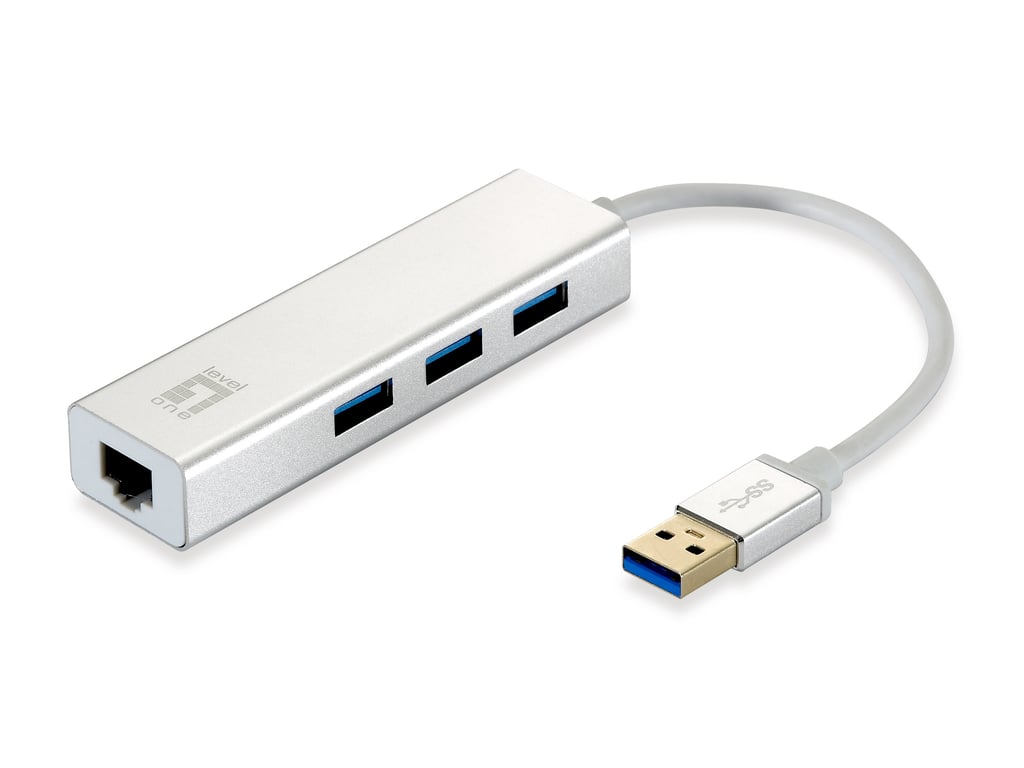

LevelOne USB-0503 1000 Mbit/s Ethernet network card
Wired
USB 3.2 Gen 1 (3.1 Gen 1) Ethernet
Gigabit Ethernet 1000 Mbit/s 10/100/1000BaseT(X)
Add useful accessories
Specification
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
1000 Mbit/s
Cabling technology:
Type of cable technology performance; taking into account the fiber or cable type.
10/100/1000BaseT(X)
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
Ethernet
Input current:
0.9 A
Operating voltage:
5 V
Hot-swap:
Yes
Certificates:
CE
Network
Copper Ethernet Cabling Technology:
10BASE-T, 100BASE-TX, 1000BASE-T
Supported network protocols:
Network protocols tested and compatible with this product
IPv4/IPv6
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Funkcja Wake-On-LAN:
Yes
Flow control support:
Yes
Ethernet interface type:
Gigabit Ethernet
Ports and Interfaces
Host interface:
Product Host Interface Description
USB
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes

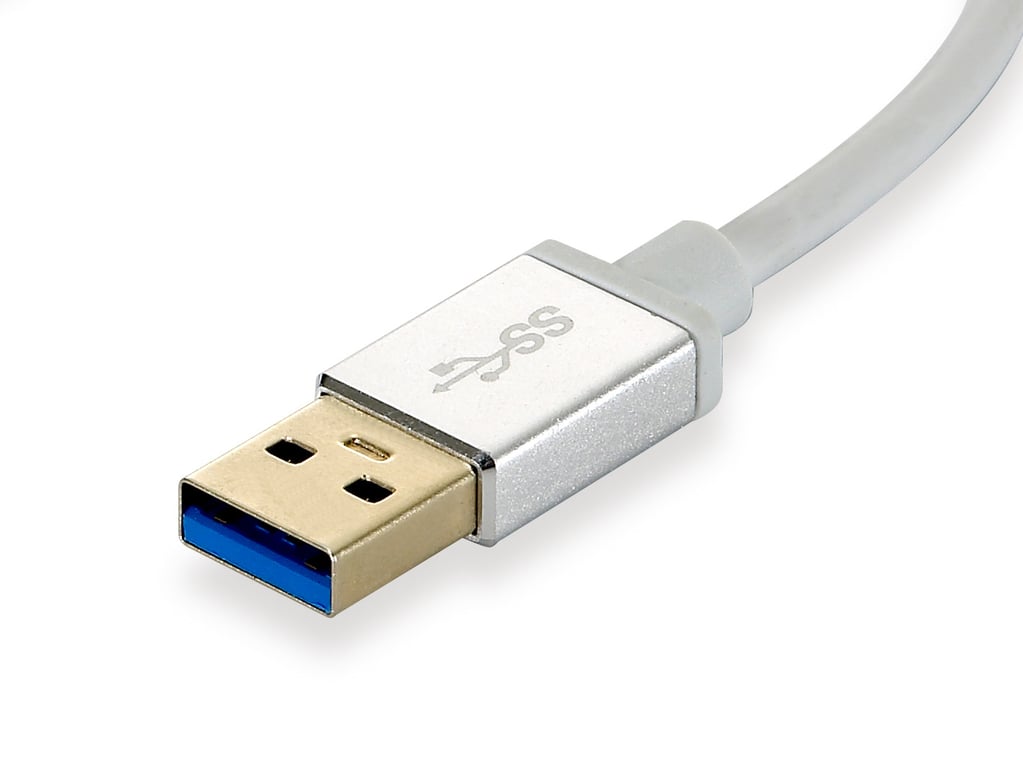

USB version:
The Universal Serial Bus (USB) is a type of computer communication port developed in the 1990s to replace older serial and parallel ports. Each subsequent version—such as 1.1, 2.0, or 3.0—is faster than the previous one.
3.2 Gen 1 (3.1 Gen 1)

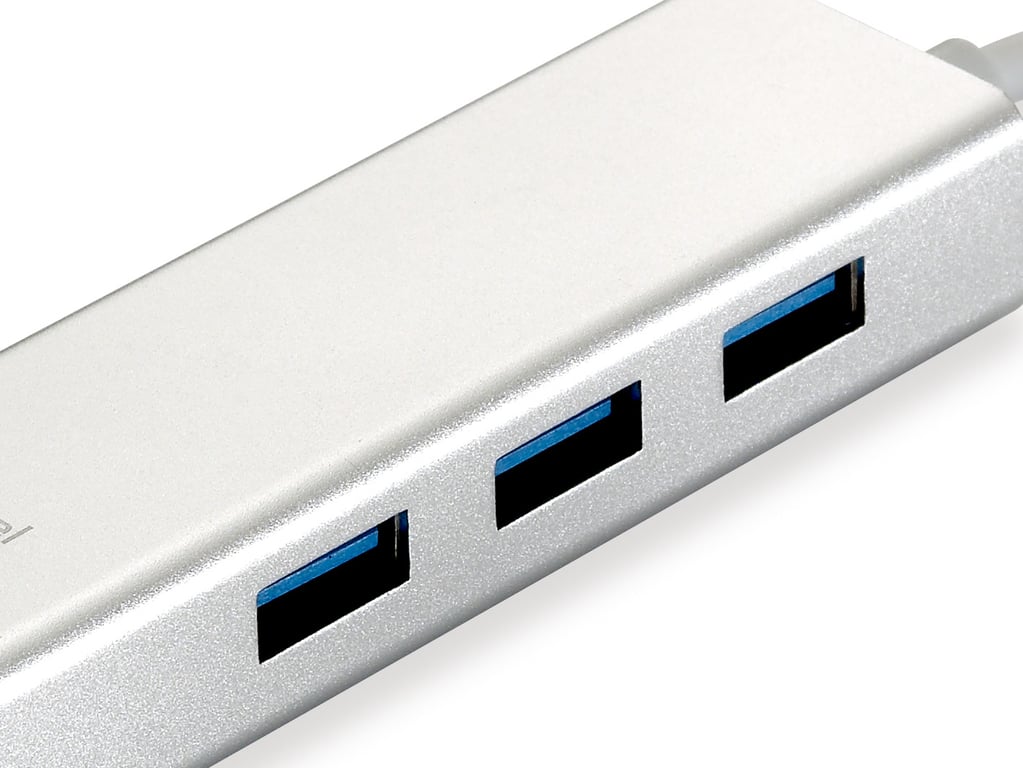

Number of USB 3.2 Gen 1 (3.1 Gen 1) ports:
3

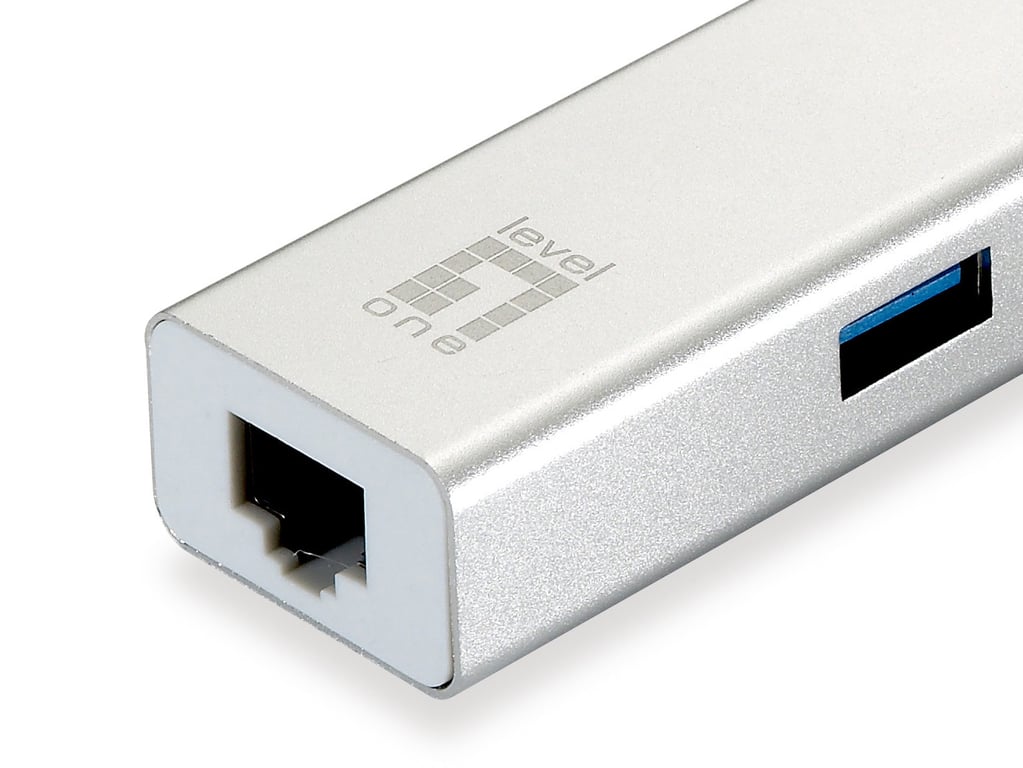

Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Performance
USB-powered:
A device that can be powered via a USB cable.
Yes
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Silver, White
System Requirements
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ergonomics
Plug & Play support:
Indicates whether a given product supports the "plug & play" feature. Plug & play refers to a type of device or software that can be used immediately after being connected, as opposed to devices or software that require configuration.
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
42 g
Product depth:
Distance from the front to the back of the item.
16 mm
Product height:
Product height.
95 mm
Product width:
Width measurement.
27 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
60 g
Quick Installation Guide:
Yes
Package width:
The distance from one side of the package to the other.
90 mm
Package depth:
Distance from the beginning to the end of the package.
21 mm
Package height:
Distance from the top to the bottom of the package.
165 mm
Package type:
Product packaging type, e.g., box.
Box
Phone features
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–40 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-5 to 80 °C
Relative humidity range:
0 - 85%
Permissible relative humidity:
0 - 85%
Logistics data
Width of the collection box (external):
33.5 mm
Length of the main (outer) box:
20 mm
Height of the reference box (external):
44 mm
Country of origin:
Country where the product was manufactured.
China
Gross weight of the main (outer) case:
5.5 kg
Products in the main (outer) box:
80 items
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Other features
Number of USB ports:
3
