MICROSEMI

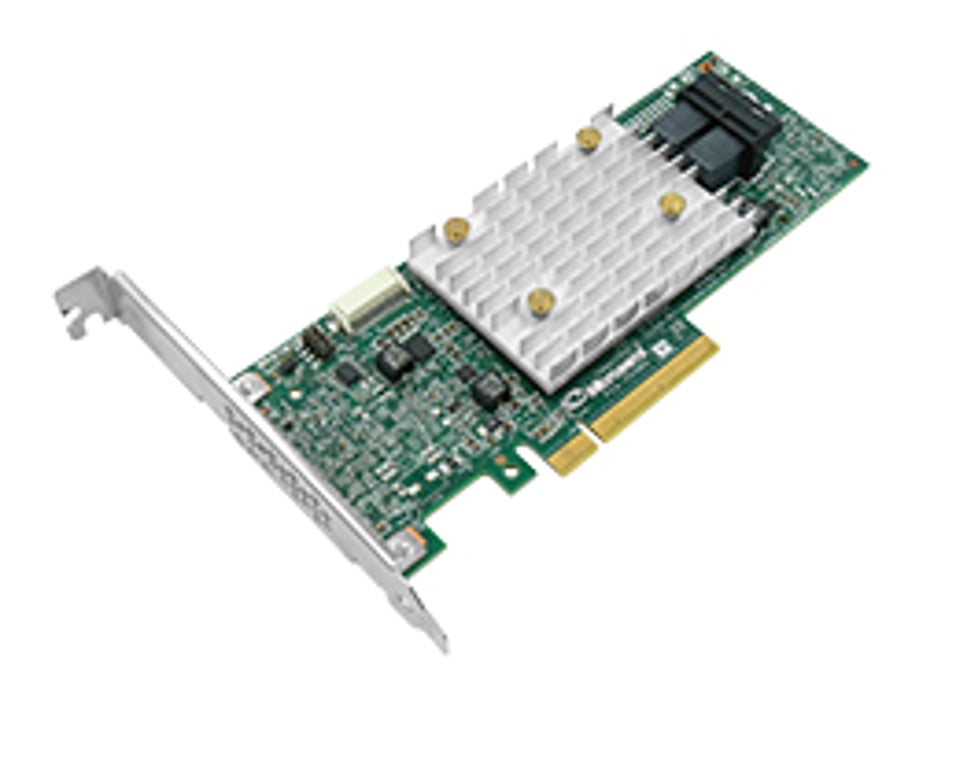

Microsemi SmartHBA 2100-8i Internal Mini-SAS HD Adapter
Internal
Host interface: PCIe
Output interface: Mini-SAS HD
S.M.A.R.T. support
Specification
Features
S.M.A.R.T. support:
Yes
Support for on-the-fly integration:
Opis funkcji wsparcia hot-plug dla produktu
Yes
Task Queuing (NCQ):
Yes
Data transfer rate (max):
12 Gbit/s
Set of layouts:
Chipset for this configuration, expressed as the manufacturer’s name and the product’s proprietary name.
SmartIOC 2100
Certificates:
CE, FCC, UL, C-tick, VCCI, KCC, CNS
Processor
Embedded processor:
Whether or not a processor is built into the device.
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
PCIe
Output interface:
Socket for connecting connectors.
Mini-SAS HD
Size of the expansion card slot:
Low-profile
Extension Card Standard:
PCIe 3.0
Internal mini-SAS HD ports:
8
Performance
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
1,760,000 h
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
Yes
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 7 x64, Windows 8 x64
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
No
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Supported server operating systems:
Windows Server 2008 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64
Memory controllers
Raid Levels:
RAID (Redundant Array of Independent Disks) involves the collaboration of two or more hard drives in a way that provides additional capabilities not achievable with a single drive or with several drives connected as separate units.
0, 1, 5, 10
Weight and Dimensions
Product height:
Product height.
64 mm
Product width:
Width measurement.
167 mm
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–55 °C
Logistics data
Harmonized System (HS) code:
84733020
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
