SAPPHIRE

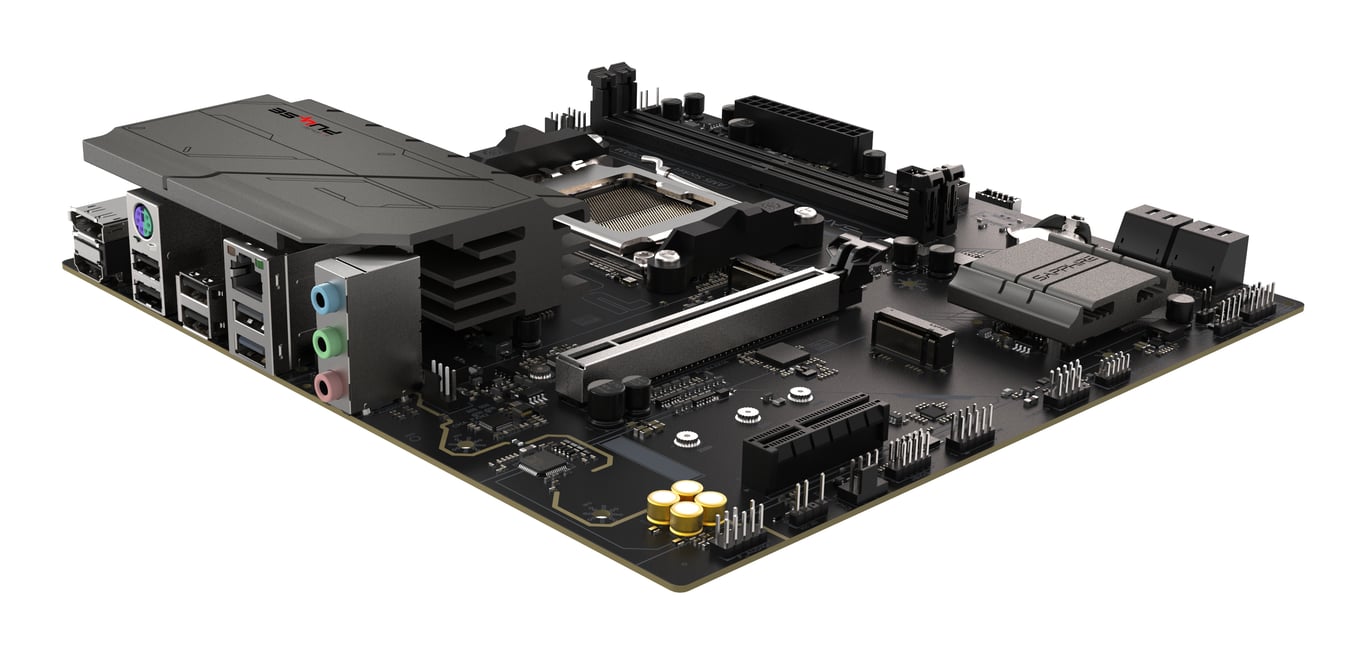

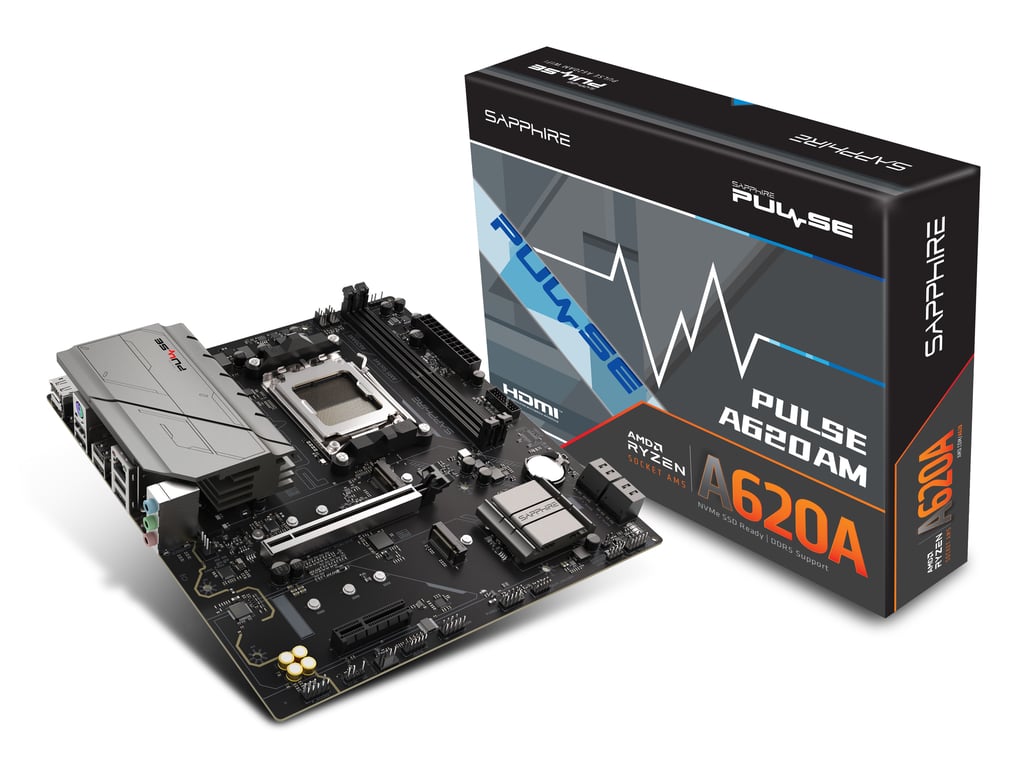

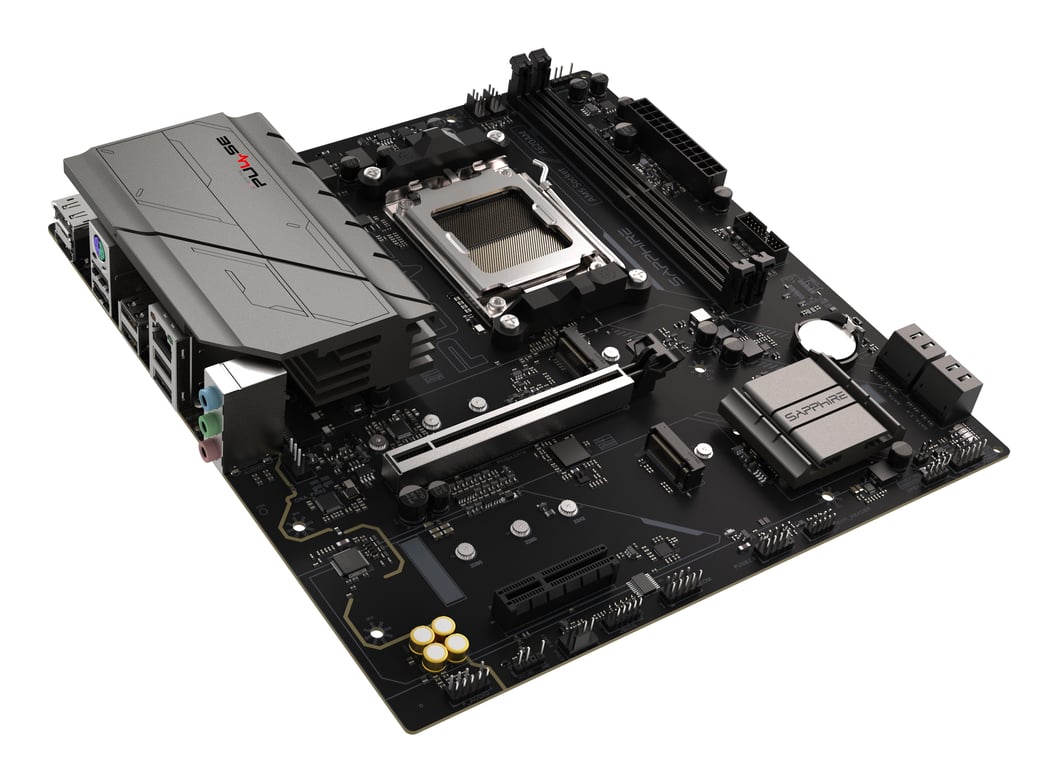

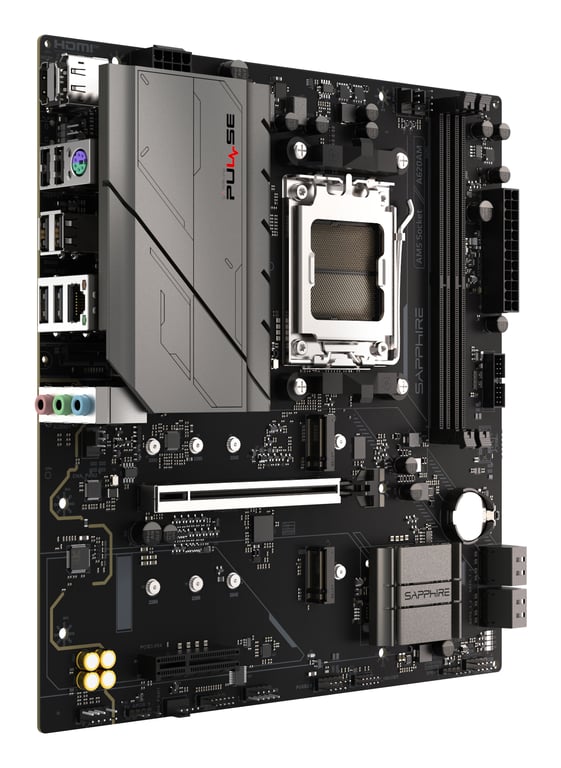

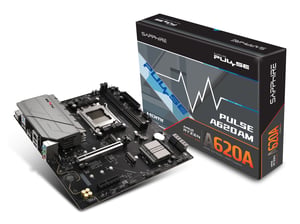

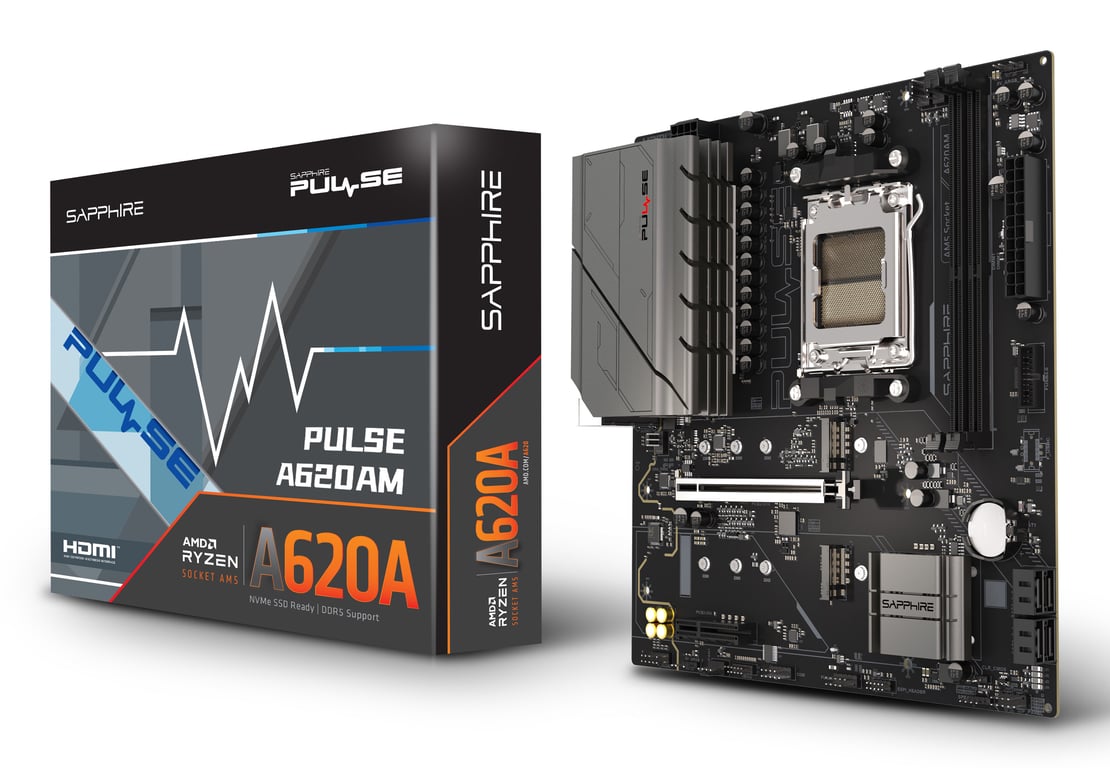

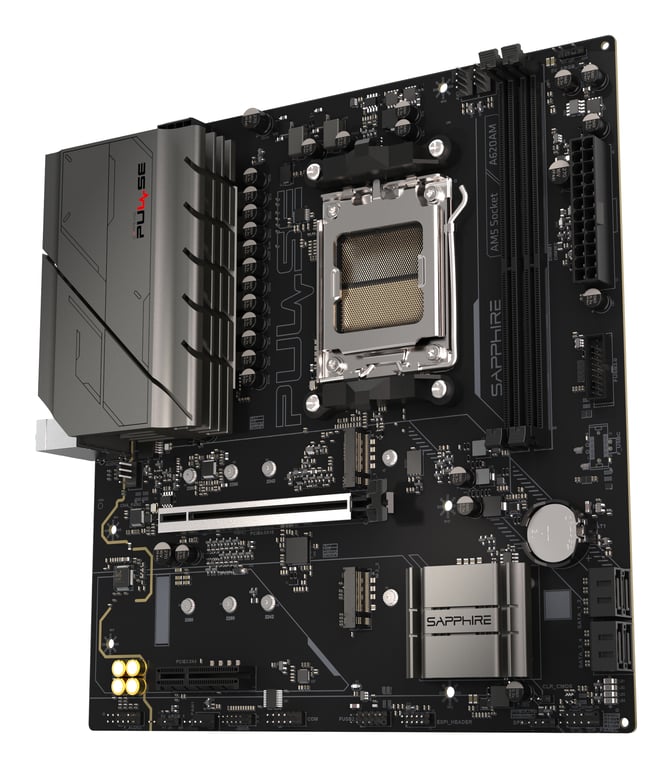

Sapphire PULSE A620AM AMD A620A AM5 Socket micro ATX
AMD AM5 Socket AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC micro ATX AMD A620A Realtek ALC897 5.1-channel.
DDR5-SDRAM 2 DIMMs Maximum memory capacity: 64 GB
HDD & SSD PCI Express 3.0, PCI Express 4.0, SATA III Number of supported storage drive sizes: 6
Specification
Audio
Audio layout:
Realtek ALC897
Audio output channels:
An audio output channel is an electrical circuit that serves as a path for the signal generated by a device. A device may have several audio output channels.
5.1 kan.
Features
Supported processor sockets:
Ports (connectors) supported by the device.
AM5 socket
Purpose:
Indicates an item of which a given product may be an instance.
PC
Type of disc:
Motherboard form factor standards (ATX, BTX, etc.)
micro ATX
Chipset family:
Motherboard chipset category, e.g., Intel, AMD.
AMD
Data storage medium
Supported drive types:
The type of storage the device is compatible with.
HDD & SSD
Number of supported storage drive sizes:
How many storage drives can be installed in the product at the same time?
6
Network
Wi-Fi:
A popular technology that enables data transmission and wireless Internet connectivity using radio waves.
No
LAN Controller:
Realtek RTL8111K
Ethernet interface type:
Gigabit Ethernet
Processor
Processor manufacturer:
Processor manufacturer.
AMD
Processor socket:
Mechanical components and electrical connections between the microprocessor and the printed circuit board (PCB). This allows the processor to be replaced without the need for soldering.
AM5 socket
Processor:
A processor compatible with this device belongs to a "series" that is part of a "family," e.g., Celeron D, Celeron G, Celeron M.
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Support for parallel processing:
Parallel computing is a form of computation in which multiple instructions are executed simultaneously. Depending on the level at which the hardware supports parallel operations, computers can be classified as: single-processor multi-core (containing a single multi-core processor), symmetric multiprocessor computers (containing several identical, peer-to-peer processors), and systems consisting of multiple machines: clusters, MPP systems, or grids.
Not supported
Memory
Memory slot types:
A memory slot, memory socket, or RAM slot allows you to install RAM in a computer. Depending on the motherboard, there are usually 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM slots are SDRAM and DDR for desktop computers and SODIMM for laptops, and each has a different type and speed.
DIMM
Supported memory clock speed (max.):
7600 MHz
Number of memory slots:
2
Maximum memory capacity:
Maximum internal storage available for a given device.
64 GB
Supported memory types:
Types of memory that can be used with this device.
DDR5-SDRAM
Memory channel support:
Dual-channel
Maximum internal memory per slot:
32 GB
Ports and Interfaces
Headphone outputs:
Number of headphone jacks/ports.
3
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Microphone:
The jack where the microphone is plugged in.
Yes
Supported USB type:
Type of USB port built into the device.
USB Typu-A
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
4
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:
2
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of DisplayPorts:
Number of DisplayPort ports. DisplayPort is a universal digital interface developed by VESA (Video Electronics Standards Association). The interface is used to connect a video source to a display, such as a computer, but it can also be used to transmit audio, USB data, and other data.
1
Performance
Motherboard layout:
A chipset connects the microprocessor to the motherboard circuits.
AMD A620A
Structure
Product color:
Color, e.g., red, blue, green, black, white.
Black
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10 x64, Windows 11 x64
Memory controllers
Supported hard drive interfaces:
PCI Express 3.0, PCI Express 4.0, SATA III
Internal I/O
Number of USB 2.0 ports:
Cable end with a USB 2.0 plug. USB 2.0 was introduced in April 2000 (now referred to as "Hi-Speed"). Devices compliant with the new specification can operate at a maximum speed of 480 Mbit/s. The actual data transfer rate depends on the device’s design and can reach up to 280 Mbit/s.
1
USB 3.2 Gen 1 (3.1 Gen 1) ports:
A connector (usually attached to a cable) for USB 3.0. USB 3.0 (SuperSpeed) refers to devices that comply with the new specification and can operate at a speed of 5 Gbit/s (640 MB/s). The actual data link bandwidth is 4 Gbit/s, which, when using 8b/10b encoding, results in a transfer rate of approximately 400 MB/s.
1
Number of SATA III ports:
SATA (Advanced Technology Attachment) is a serial computer bus developed and certified by SATA-IO, used for communication between host bus adapters (HBAs) and storage devices. The interface supports a data transfer rate of up to 600 MB/s. This interface is compatible with the SATA 3 Gb/s bus.
4
Audio connector:
Yes
Front-panel audio connector:
Yes
ATX power connector (24-pin):
Yes
CPU fan socket:
Yes
Number of CPU fan connectors:
1
Number of sockets in the fan base:
2
Serial port:
1
Number of water pump connections:
1
RGB LED:
Yes
Number of RGB LED connectors:
2
I/O ports on the rear panel
Number of PS/2 ports:
Number of PS/2 ports for the keyboard and mouse. The name comes from IBM Personal System/2.
1
Extension slots
PCI Express x4 slots:
1
PCI Express x16 slots (Gen 4.x):
1
Number of M.2 (M) slots:
2
1. Largest M.2 key size:
2280
1. M.2, the latest generation of PCI Express:
4.0
2. Largest M.2 key size:
2280
2. M.2, the latest generation of PCI Express:
3.0
Weight and Dimensions
Product depth:
Distance from the front to the back of the item.
235 mm
Product width:
Width measurement.
244 mm
BIOS
Clear CMOS jumper:
Yes
