STARTECH.COM
StarTech 132UE-TB4USB4DOCK Wired Thunderbolt 4 Docking Station, Gray
Wired
Interfejs hosta: Thunderbolt 4
USB Power
Wired LAN 10, 100,1000,2500 Mbit/s 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Specification
Display
HD Type:
Type of high-definition supported (e.g., Full HD, 4K Ultra HD).
8K Ultra HD
Maximum refresh rate:
60 Hz
Processor
Maximum digital resolution:
7680 x 4320 px
Data storage medium
Integrated card reader:
A card reader is a device that allows you to read and, in some cases, write data to and from a memory card.
Yes
Supported memory card types:
Types of memory cards that can be used with this device.
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Network
Copper Ethernet Cabling Technology:
2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10,100,1000,2500 Mbit/s
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description
Thunderbolt 4
Number of DisplayPorts:
Number of DisplayPort ports. DisplayPort is a universal digital interface developed by VESA (Video Electronics Standards Association). The interface is used to connect a video source to a display, such as a computer, but it can also be used to transmit audio, USB data, and other data.
2
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:
2
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports:
3
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports:
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
2
HDMI version:
2.1
Headset/microphone port:
Yes
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Headphone outputs:
Number of headphone jacks/ports.
1
Headphone jack:
How to connect headphones to a device, e.g., wirelessly or using a cable with the appropriate connector.
3,5 mm
Features
Case material:
The material the product's casing is made of.
Aluminum
UASP Support:
Yes
Maximum USB power:
98 W
Set of layouts:
Chipset for this configuration, expressed as the manufacturer’s name and the product’s proprietary name.
Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Structure
Product color:
Color, e.g., red, blue, green, black, white.
Gray
Performance
Built-in switch:
A button that turns the device on or off when pressed.
Yes
LEDs:
LAN, Power
USB Power Delivery version:
3.0
Sustainable Development
Compliance with sustainability principles:
Yes
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Power
Power Type:
Type of energy source.
DC
Maximum power consumption:
The maximum amount of power the device consumes.
180 W
Operating voltage:
20 V
Output current:
9 A
Input current:
2.5 A
AC input voltage:
Electrical voltage.
110 - 240 V
DC output jack:
Connecting the device to a power source.
Yes
Compatible network connectors:
EU, UK
USB Power:
Yes
Ergonomics
Kensington Lock:
Holes in the edges of the devices through which the cable locking slot passes, so that the device can be attached to a desk.
Yes
Cable lock socket type:
Kensington, Nano
Weight and Dimensions
Product height:
Product height.
34 mm
Product width:
Width measurement.
210 mm
Product depth:
Distance from the front to the back of the item.
96 mm
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
200 g

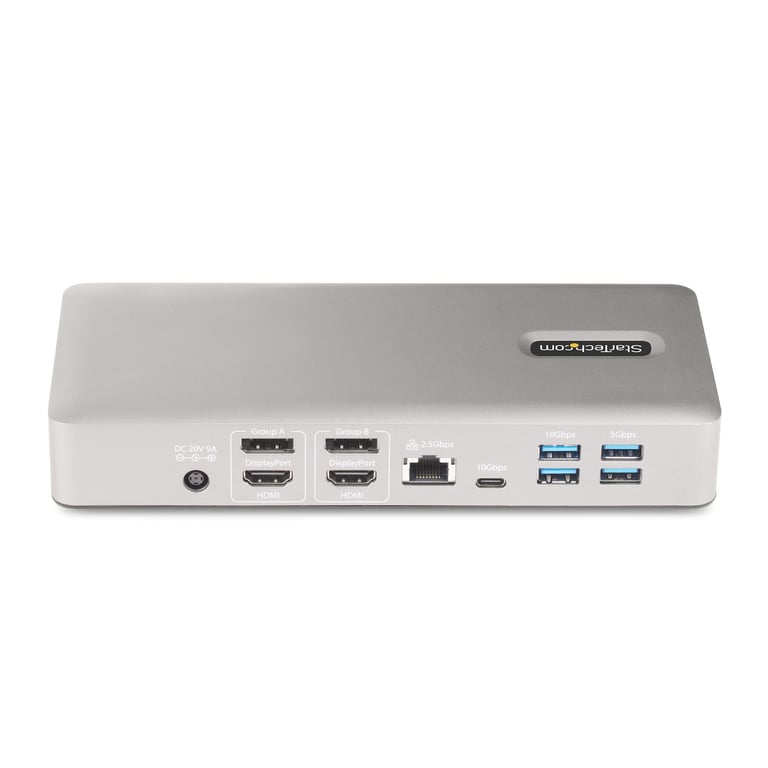

I/O ports on the rear panel
DisplayPort version:
1.4
Packaging data
Package width:
The distance from one side of the package to the other.
235 mm
Package depth:
Distance from the beginning to the end of the package.
145 mm
Package height:
Distance from the top to the bottom of the package.
90 mm
Weight including packaging:
Weight of the packaged product in grams.
1,4 kg

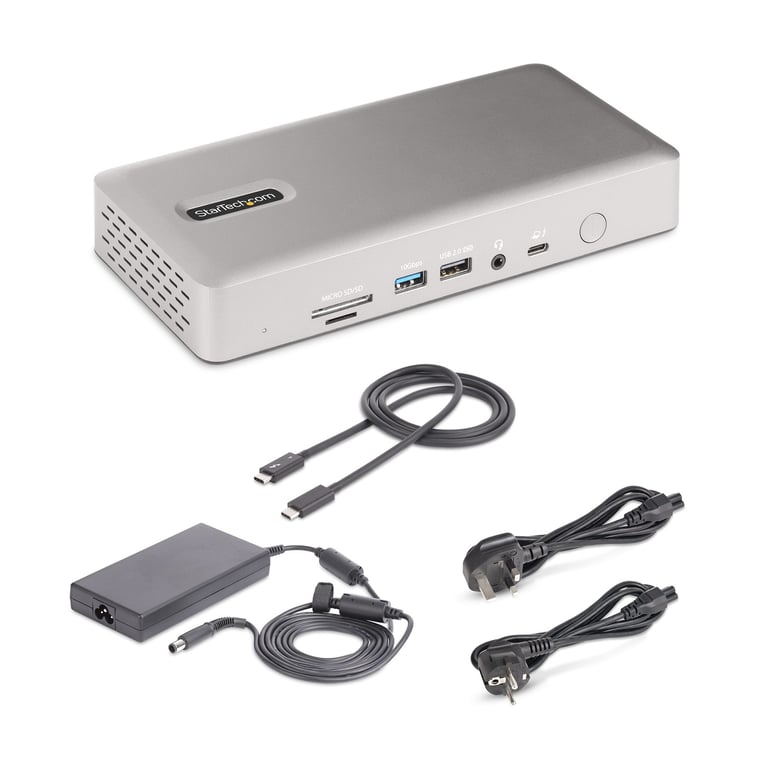

Package Contents
AC power adapter:
Yes
Cables:
Thunderbolt
Quick Start Guide:
Instructions, available both online and in print, that allow for quick installation and use of the product.
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0 - 40 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-20 - 70 °C
Relative humidity range:
0 - 95%
Other features
Data transfer speed:
The speed at which data can be transmitted to MC, expressed in units per second, may vary depending on the network configuration.
40 Gbit/s
Logistics data
Width of the collection box (external):
380 mm
Length of the main (outer) box:
310 mm
Height of the reference box (external):
285 mm
Products in the main (outer) box:
4 szt.
Technical Details
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
