STARTECH.COM

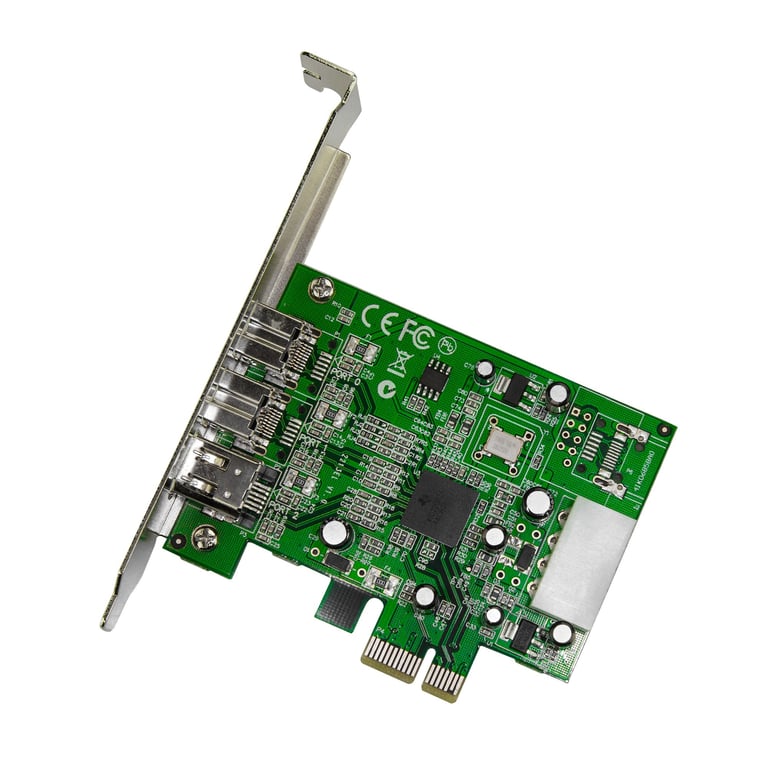

StarTech PEX1394B3 Internal FireWire 800/400 Adapter
Internal
Host interface: PCIe
Output interface: FireWire 800 / 400
0.8 Gbit/s
Add useful accessories
Specification
Features
Data transfer rate (max):
0.8 Gbit/s
Set of layouts:
Chipset for this configuration, expressed as the manufacturer’s name and the product’s proprietary name.
Texas Instruments - XIO2213B
Ports and Interfaces
Host interface:
Product Host Interface Description
PCIe
Output interface:
Socket for connecting connectors.
FireWire 800 / 400
Extension Card Standard:
PCIe 1.1
Number of FireWire 400 ports:
1
Number of FireWire 800 ports:
2
Performance
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
149,905 h
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
Yes
Product color:
Color, e.g., red, blue, green, black, white.
Green
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Supported server operating systems:
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
48 g
Product depth:
Distance from the front to the back of the item.
85 mm
Product height:
Product height.
120 mm
Product width:
Width measurement.
18 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
212 g
Package width:
The distance from one side of the package to the other.
148 mm
Package depth:
Distance from the beginning to the end of the package.
213 mm
Package height:
Distance from the top to the bottom of the package.
41 mm

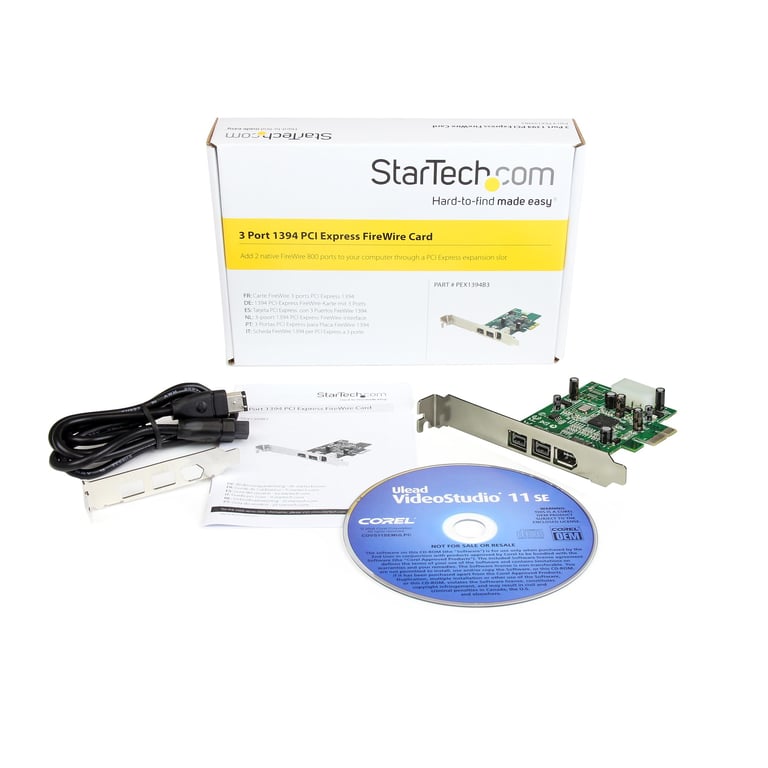

Package Contents
Cables:
FireWire
User Manual:
Yes
Mounting brackets included:
Yes
Includes drivers:
Yes
Sustainable Development
Compliance with sustainability principles:
Yes
Logistics data
Width of the collection box (external):
355 mm
Length of the main (outer) box:
681 mm
Height of the reference box (external):
317 mm
Harmonized System (HS) code:
84733020
Products in the main (outer) box:
50 items
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
