STARTECH.COM

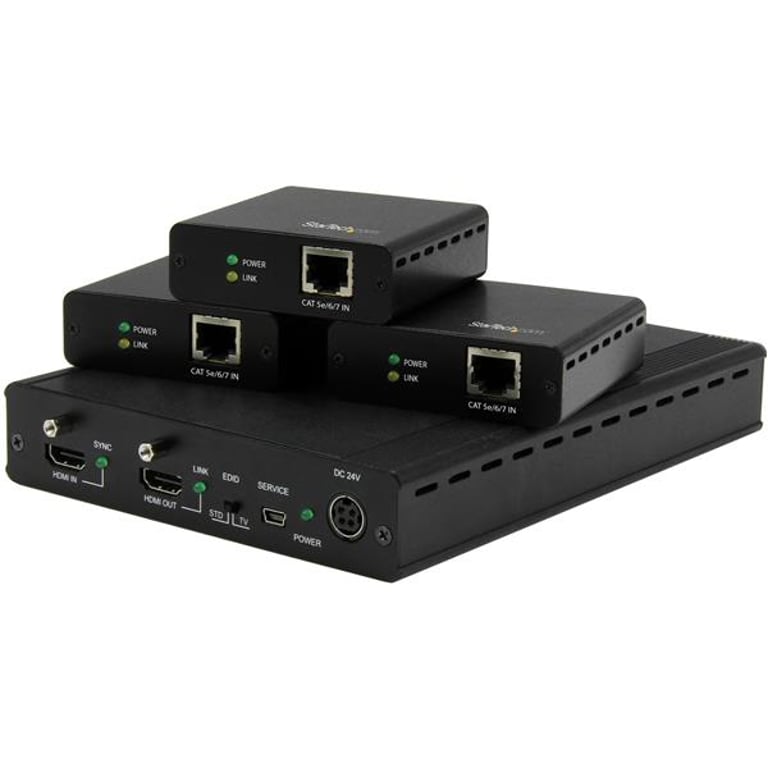

StarTech ST124HDBT AV Extender AV Transmitter and Receiver
AV Transmitter and Receiver 4096 x 2160 px
Maximum transmission distance: 70 m
30 Hz
DC output jack
Specification
Features
Input current:
1.5 A
Output current:
2.7 A
Model:
Device features.
AV Transmitter and Receiver
Bypass HDCP and EDID:
Yes
Certificates:
CE, FCC, TAA
Display
Maximum refresh rate:
30 Hz
Network
Supported cable types:
Cat5e, Cat6, Cat7
Video
Supported image resolutions:
The display resolution that can be shown on a screen. Resolution describes the width and height of a screen, such as a computer screen, and is expressed in pixels.
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Supported video modes:
Video modes supported by the device.
720p, 1080p, 2160p
Processor
Max. resolution:
Maximum number of pixels in an image. This is usually specified as width x height; for example, “1024 x 768” means a width of 1024 pixels and a height of 768 pixels.
4096 x 2160 px
Ports and Interfaces
RJ-45 inputs:
3
RJ-45 outputs:
3
HDMI in:
HDMI input port.
1
Number of HDMI outputs:
HDMI output port.
4
Remote IR input:
1
IR output:
1
DC output jack:
Connecting the device to a power source.
Yes
Performance
Maximum transfer distance:
The maximum distance over which data can be transmitted.
70 m
Structure
Rack-mounting options:
A type of mounting that secures devices to shelves and stands.
Yes
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
64.8 W
AC input voltage:
Electrical voltage.
100 - 240 V
Operating voltage:
Specifies the range of available operating voltages
24 V
Ergonomics
LEDs:
Link, Power
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
1 kg
Product depth:
Distance from the front to the back of the item.
200 mm
Product height:
Product height.
30 mm
Product width:
Width measurement.
145 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
2.6 kg
Package width:
The distance from one side of the package to the other.
299 mm
Package depth:
Distance from the beginning to the end of the package.
363 mm
Package height:
Distance from the top to the bottom of the package.
98 mm

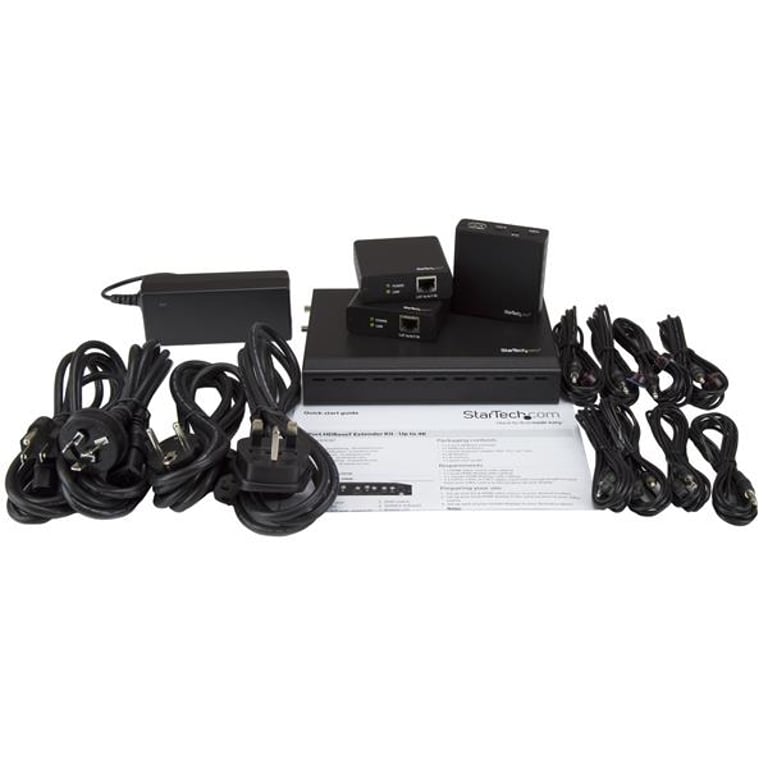

Package Contents
Quick Start Guide:
Instructions, available both online and in print, that allow for quick installation and use of the product.
Yes
Infrared transmitter included:
Yes
Types of power plugs included in the set:
AU, EU, NA, UK
Infrared receiver included:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–40 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-10 to 60 °C
Relative humidity range:
0 - 80%
Logistics data
Width of the collection box (external):
374 mm
Length of the main (outer) box:
510 mm
Height of the reference box (external):
319 mm
Country of origin:
Country where the product was manufactured.
Taiwan
Products in the main (outer) box:
5 items
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Technical Details
Audio support:
Yes
Other features
Daisy chain:
Yes
