STARTECH.COM

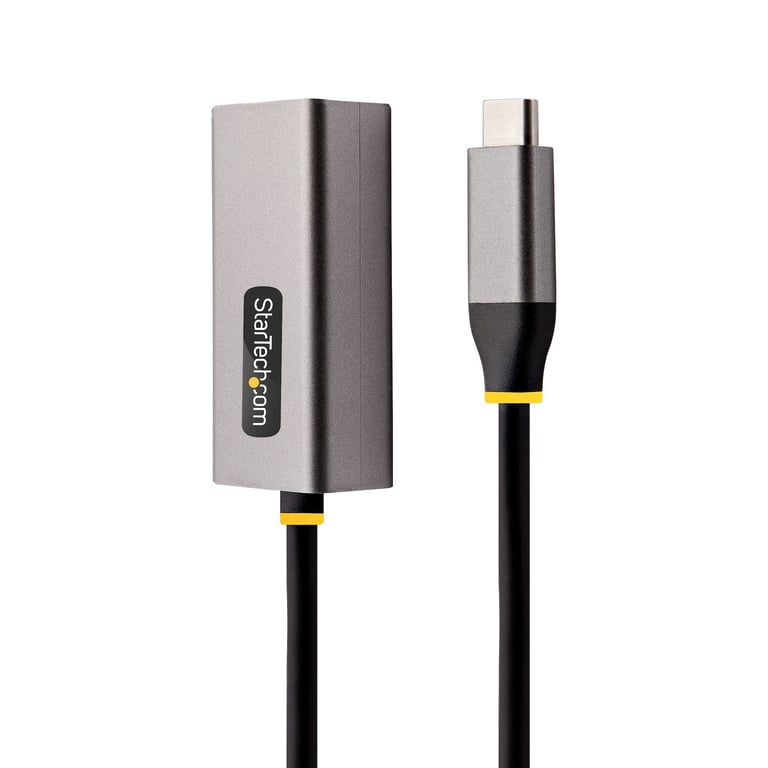

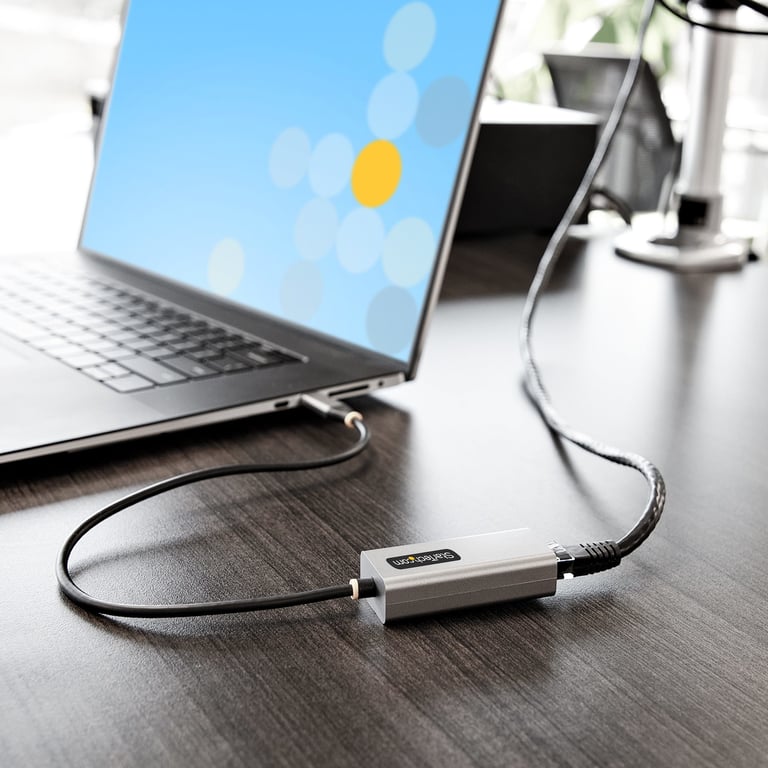

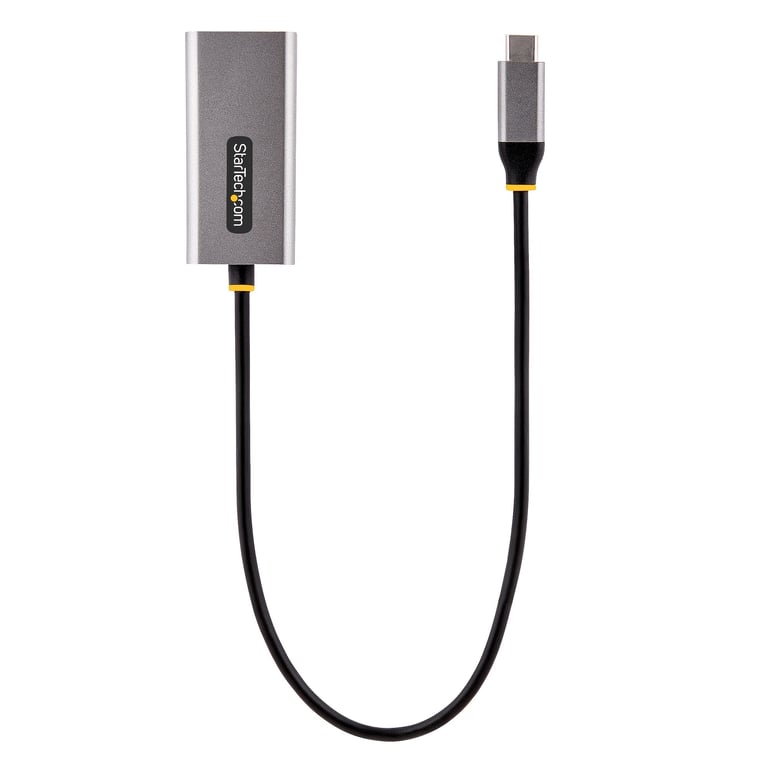

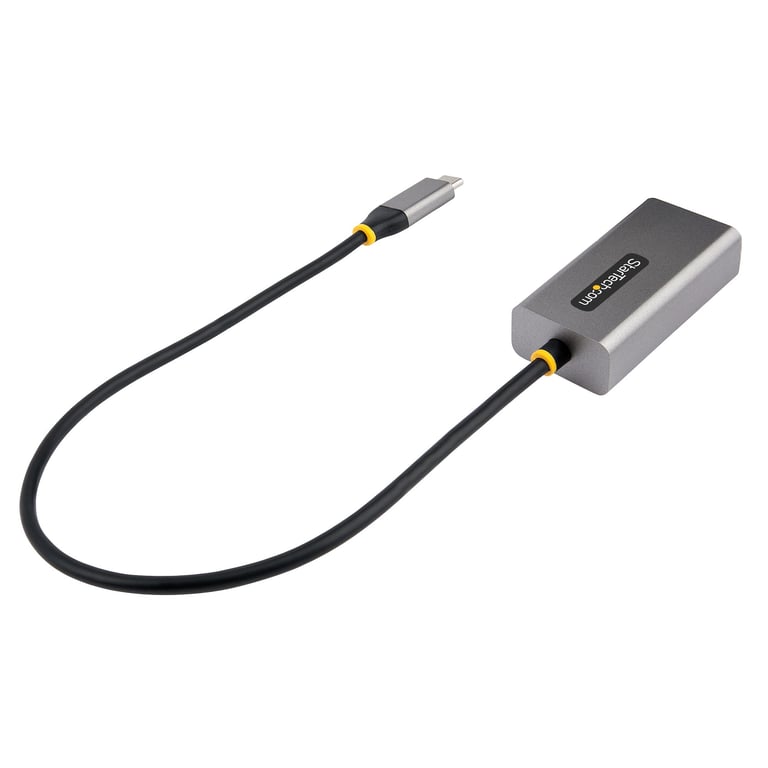

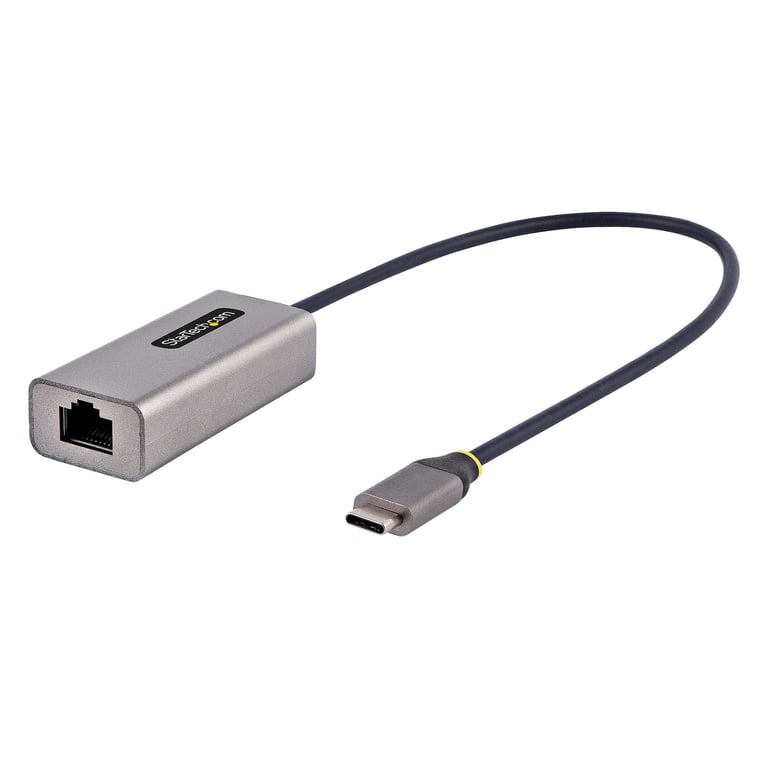

StarTech US1GC30B2 5000 Mbit/s Ethernet network card
Wired
USB Type-C 3.2 Gen 1 (3.1 Gen 1) Ethernet
Fast Ethernet, Gigabit Ethernet 5000 Mbit/s 10/100/1000BaseT(X)
Intended use: PC/Laptop
Specification
Data Transfer
Compatible with Jumbo Frames:
Yes
Jumbo Frames Extension:
9000
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
5000 Mbit/s
Cabling technology:
Type of cable technology performance; taking into account the fiber or cable type.
10/100/1000BaseT(X)
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
Ethernet
Purpose:
Indicates an item of which a given product may be an instance.
PC/Laptop
Cable length:
Cable length.
0.3 m
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Funkcja Wake-On-LAN:
Yes
Ethernet interface type:
Fast Ethernet, Gigabit Ethernet
VLAN Tagging:
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description

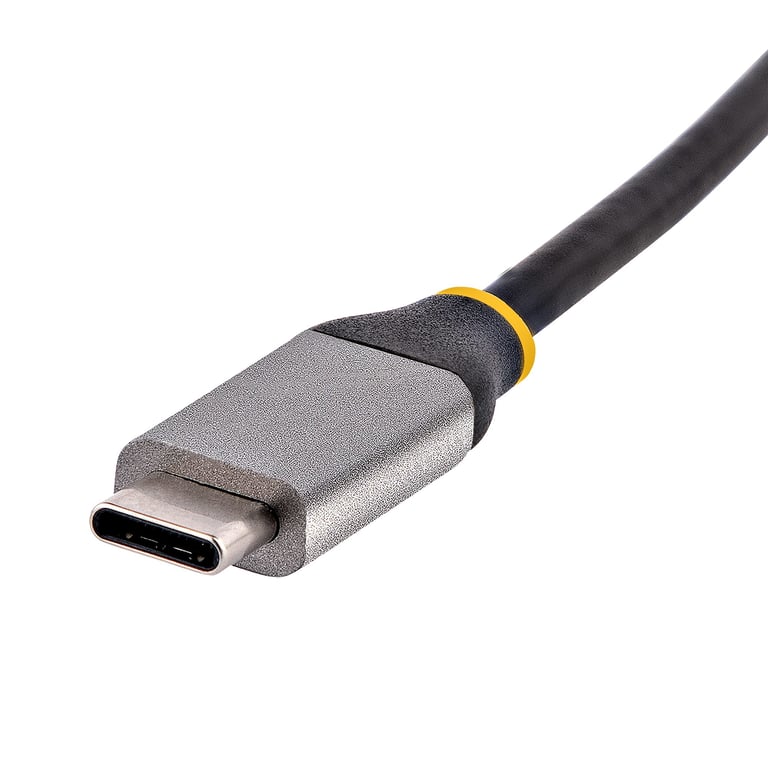

USB Type-C
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
USB version:
The Universal Serial Bus (USB) is a type of computer communication port developed in the 1990s to replace older serial and parallel ports. Each subsequent version—such as 1.1, 2.0, or 3.0—is faster than the previous one.
3.2 Gen 1 (3.1 Gen 1)
USB interface format:
Simple

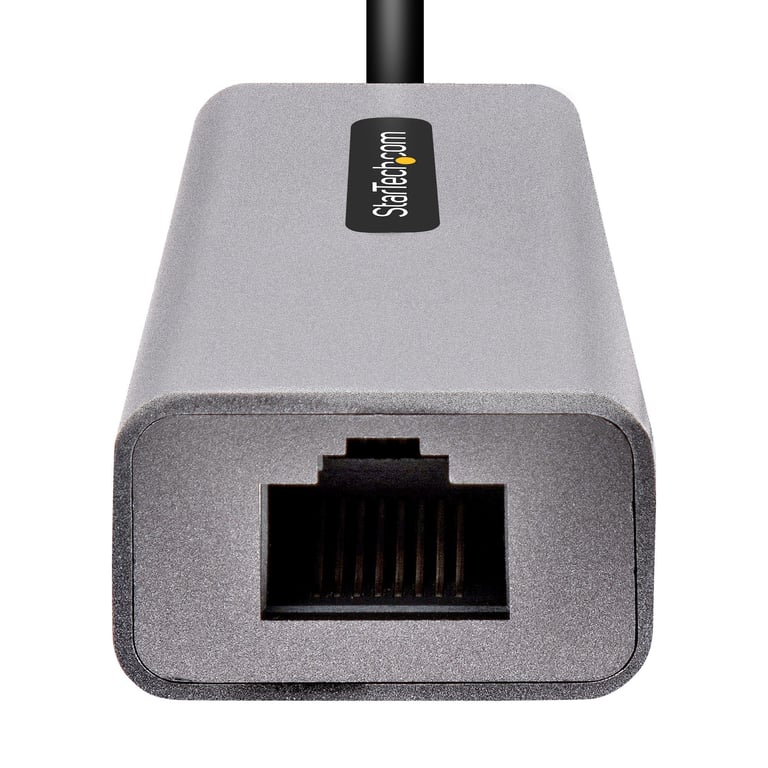

Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Performance
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
262,800 h
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Case material:
The material the product's casing is made of.
ABS
Product color:
Color, e.g., red, blue, green, black, white.
Black, Gray
System Requirements
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Supported server operating systems:
Windows Server 2019
Other supported operating systems:
Android
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
23 g
Product depth:
Distance from the front to the back of the item.
27 mm
Product height:
Product height.
16 mm
Product width:
Width measurement.
174 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
90 g
Package width:
The distance from one side of the package to the other.
230 mm
Package depth:
Distance from the beginning to the end of the package.
125 mm
Package height:
Distance from the top to the bottom of the package.
15 mm
Phone features
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–45 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-10 to 70 °C
Relative humidity range:
10 - 85%
Logistics data
Width of the collection box (external):
495 mm
Length of the main (outer) box:
325 mm
Height of the reference box (external):
210 mm
Harmonized System (HS) code:
85176990
Products in the main (outer) box:
200 items
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE
