STARTECH.COM

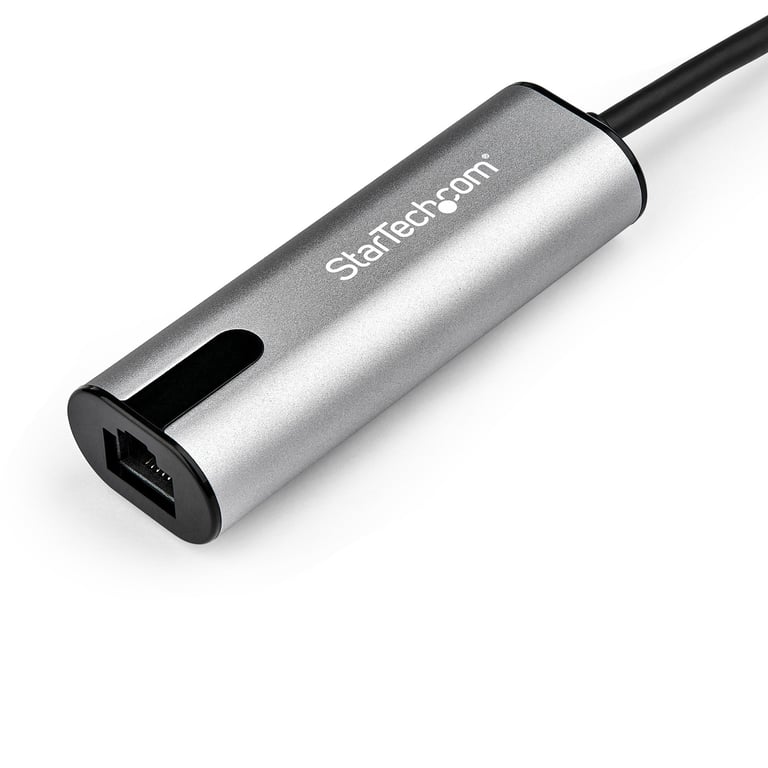

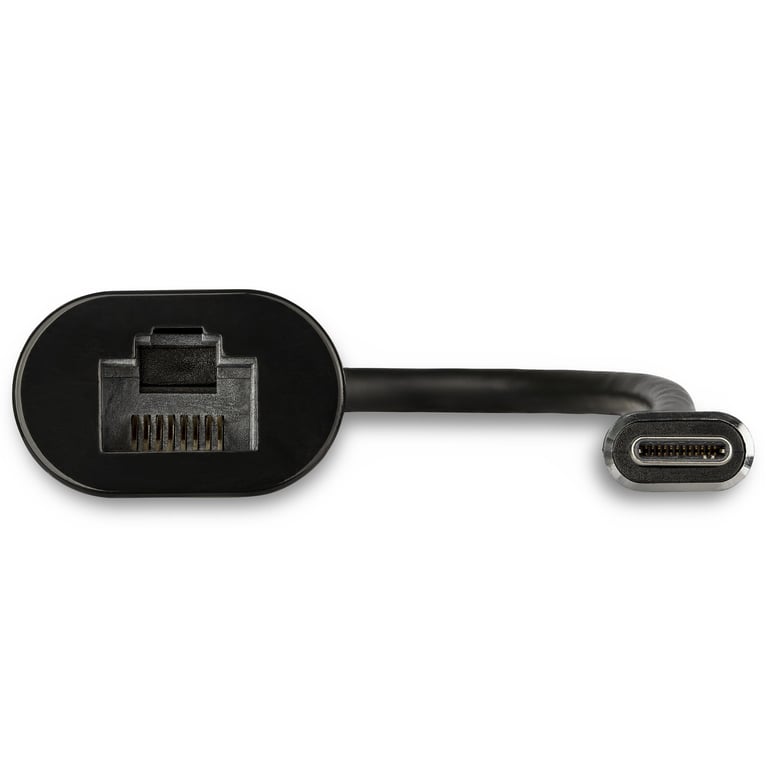

StarTech US2GC30 5000 Mbit/s Ethernet Network Card
Wired
USB Type-C 3.2 Gen 1 (3.1 Gen 1) Ethernet
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 5000 Mbit/s
Intended use: PC Chipset: Realtek - RTL8156
Specification
Data Transfer
Compatible with Jumbo Frames:
Yes
Jumbo Frames Extension:
16000
Mouse
Communication technology:
The technology that enables the device to connect, e.g., wired or wireless.
Wired
Features
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
5000 Mbit/s
Interface:
An interface for connecting individual pieces of equipment. The USB port has become one of the most popular interfaces for connecting peripheral devices via a cable. USB 2.0 supports speeds of up to 480 megabits per second (USB 1: 12 Mbit/s). The FireWire interface is also known as the IEEE 1394 standard. Enhanced IDE (EIDE) is sometimes referred to as Fast ATA, Fast IDE, or ATA-2.
Ethernet
Purpose:
Indicates an item of which a given product may be an instance.
PC
Cable length:
Cable length.
0.15 m
Set of layouts:
Chipset for this configuration, expressed as the manufacturer’s name and the product’s proprietary name.
Realtek - RTL8156
Certificates:
CE, FCC, REACH
Network
Copper Ethernet Cabling Technology:
10BASE-T, 100BASE-TX, 1000BASE-T
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10, 100, 1,000, 2,500 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Automatic IEEE MDIX:
Yes
Ethernet interface type:
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
VLAN Tagging:
Yes
Ports and Interfaces
Host interface:
Product Host Interface Description

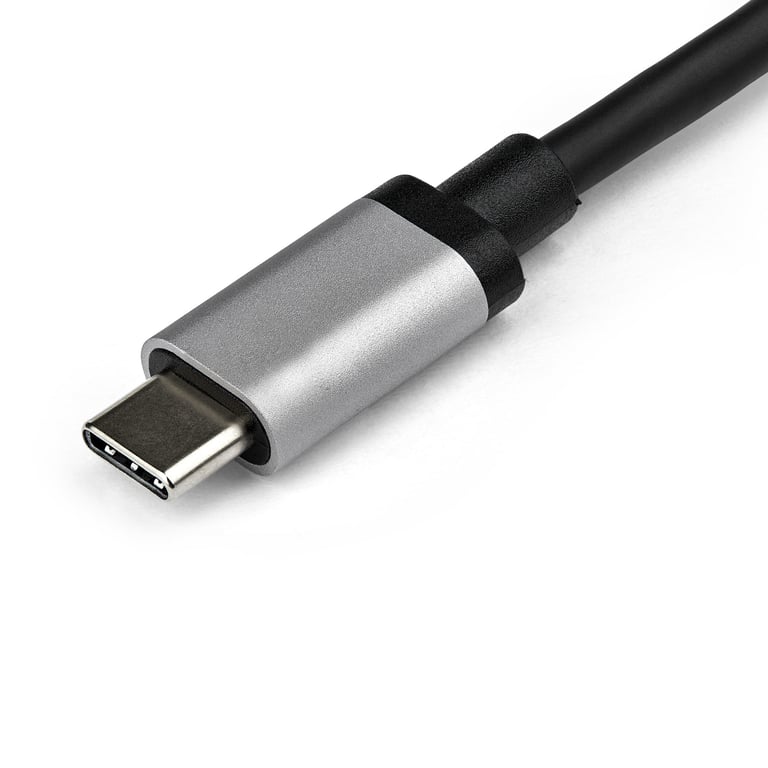

USB Type-C
Wired LAN:
The Ethernet LAN (local area network) interface is used for a wired connection.
Yes
USB version:
The Universal Serial Bus (USB) is a type of computer communication port developed in the 1990s to replace older serial and parallel ports. Each subsequent version—such as 1.1, 2.0, or 3.0—is faster than the previous one.
3.2 Gen 1 (3.1 Gen 1)
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
Performance
USB-powered:
A device that can be powered via a USB cable.
Yes
MTBF (Mean Time Between Failures):
A statistical model used to demonstrate the reliability of a product or mechanism; expressed in hours and as a percentage of the operating cycle. This figure (in hours) does not represent the mean time to failure for a given mechanism or unit.
1233108 h
Structure
Internal:
The device is built-in or must be built-in (Yes/No). If not, this means that the device is connected externally via a cable or wirelessly.
No
Product color:
Color, e.g., red, blue, green, black, white.
Black, Gray
System Requirements
Supported operating systems: Mac:
A Mac operating system, such as OS X, that can be used with this device.
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Supported operating systems: Windows:
The version of Windows that can be used with this device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Supported operating systems: Linux:
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Supported server operating systems:
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016
Ergonomics
Plug & Play support:
Indicates whether a given product supports the "plug & play" feature. Plug & play refers to a type of device or software that can be used immediately after it is connected, as opposed to devices or software that require configuration.
Yes
LEDs:
Yes
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
39.7 g
Product depth:
Distance from the front to the back of the item.
16 mm
Product height:
Product height.
80 mm
Product width:
Width measurement.
27 mm
Packaging data
Weight including packaging:
Weight of the packaged product in grams.
100 g
Package width:
The distance from one side of the package to the other.
142 mm
Package depth:
Distance from the beginning to the end of the package.
170 mm
Package height:
Distance from the top to the bottom of the package.
30 mm
Phone features
Full duplex:
A full-duplex system enables communication in both directions and, unlike half-duplex, allows this communication to occur simultaneously.
Yes

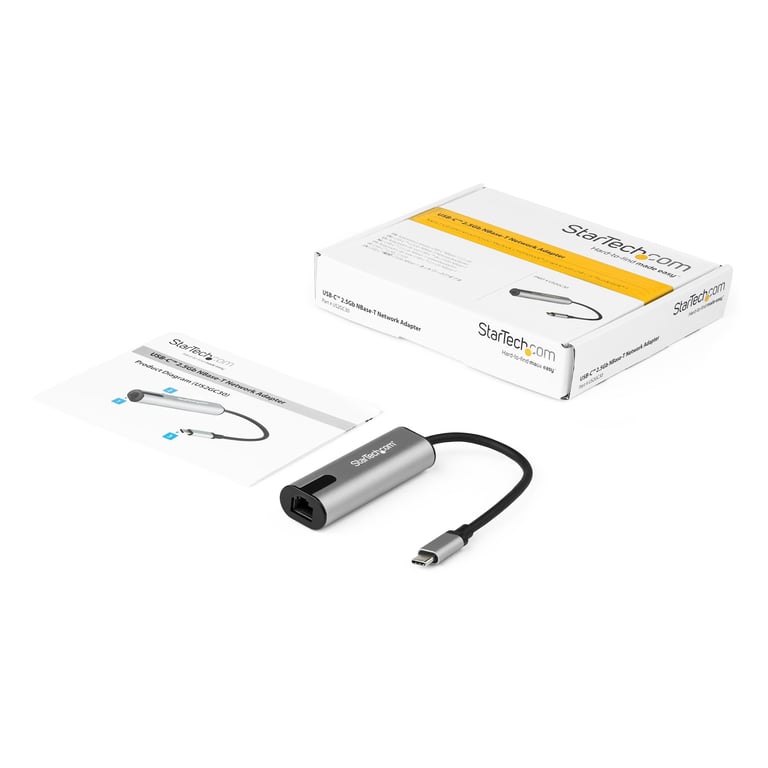

Package Contents
Quick Start Guide:
Instructions, available both online and in print, that allow for quick installation and use of the product.
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–70 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-10 to 55 °C
Relative humidity range:
5 - 90%
Logistics data
Width of the collection box (external):
435 mm
Length of the main (outer) box:
420 mm
Height of the reference box (external):
415 mm
Harmonized System (HS) code:
85176990
Products in the main (outer) box:
70 items
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
