TP-LINK

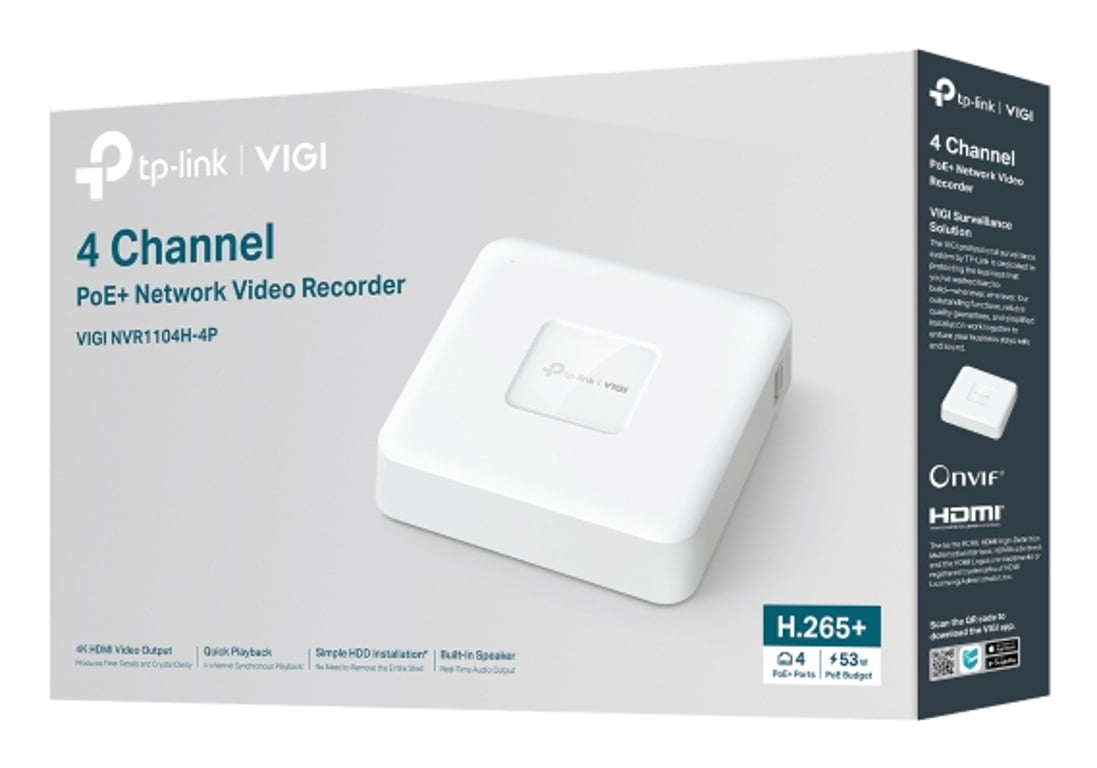

TP-Link VIGI NVR1104H-4P White
Video channel inputs: 4 channels.
3840 x 2160 px
Input bandwidth: 80 Mbit/s Output bandwidth: 60 Mbit/s
Maximum storage capacity: 10 TB HDD interface: SATA
Specification
Power over Ethernet (PoE)
Number of Fast Ethernet (PoE) ports:
4
Features
Operating voltage:
53.5 V
Output current:
1.31 A
DHCP client:
Whether the product uses DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Yes
Data storage medium
Maximum storage capacity:
The maximum amount of data that can be stored on the device.
10 TB
Camera
Video recording modes:
720p, 1080p
Network
Copper Ethernet Cabling Technology:
10BASE-T, 100BASE-TX, 1000BASE-T
Supported network protocols:
Network protocols tested and compatible with this product
TCP/IP, DHCP, DNS, NTP, UPnP
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
10,100 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Wi-Fi:
A popular technology that enables data transmission and wireless Internet connectivity using radio waves.
No
Syslog:
Yes
Hard drive
HDD Interface:
The way a hard drive is connected to the rest of the computer via a bus, such as ATA or SCSI.
SATA
Processor
Max. resolution:
Maximum number of pixels in an image. This is usually specified in the format width x height; for example, "1024 x 768" means a width of 1024 pixels and a height of 768 pixels.
3840 x 2160 px
Multimedia
Supported video file formats:
Video formats supported by the device.
H.264, H.264+, H.265, H.265+

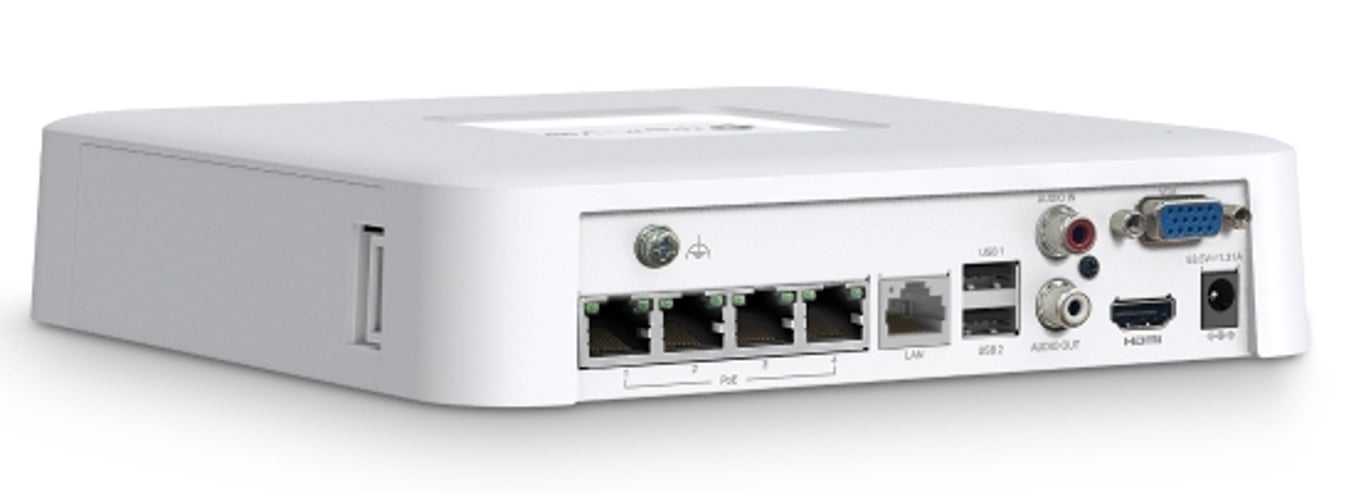

Ports and Interfaces
Audio output:
The type of sound output produced by the device.
1
HDMI output:
The device features an HDMI output.
Yes
Number of USB 2.0 ports:
USB 2.0 ports have a data transfer rate of 480 Mbps and are backward compatible with USB 1.1. Various types of peripheral devices can be connected to them.
2
VGA (D-Sub) outputs:
1
Ethernet WAN:
Yes
Number of HDMI ports:
Number of HDMI (High Definition Multimedia Interface) ports. HDMI is an interface used to transmit a digital, uncompressed audio and video signal from an HDMI-compatible device (called a "source" or “input”) to a compatible digital audio device, computer monitor, video projector, or digital television.
1
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
5
Linear input:
Yes
Performance
Video channel inputs:
The number of video input channels supported by the device.
4 channels.
Number of simultaneous playback channels:
4 channels.
Input throughput:
80 Mbit/s
Output bandwidth:
60 Mbit/s
Structure
Built-in display:
The display is part of the device, so no additional hardware needs to be connected.
No
Rack-mounting options:
A type of mounting that secures devices to shelves and stands.
No
Product color:
Color, e.g., red, blue, green, black, white.
White
Power
Power consumption:
The amount of energy consumed by this model, expressed in watts. Typical values provided by manufacturers include energy consumption in idle mode, standby/sleep mode, typical use, and maximum use.
4.82 W
Redundant Power Supply (RPS) Support:
An additional power source for a computer that activates in the event of a failure of the main power source.
Yes
PoE Support:
The device supports Power over Ethernet (PoE), a technology that transmits electrical power via Ethernet cables to network-connected peripheral devices. This allows both data and electrical power to be transmitted to devices such as wireless access points or IP cameras via a single cable.
Yes
Ergonomics
OSD:
Yes
LEDs:
Yes
Memory controllers
Number of supported HDDs:
Total number of hard drives that can be used with this device.
1
Weight and Dimensions
Product depth:
Distance from the front to the back of the item.
200.3 mm
Product height:
Product height.
43 mm
Product width:
Width measurement.
200.3 mm
Packaging data
AC power adapter:
Yes
Quick Installation Guide:
Yes
Package type:
Product packaging type, e.g., box.
Box
Sustainable Development
Compliance with sustainability principles:
Yes
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
-10 to 55 °C
Certificates
Certificates of Conformity:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, EAC, Federal Communications Commission (FCC)
