ZYXEL
Zyxel NWA90BE 4324 Mbit/s White PoE Support
2.4 GHz 688 Mbit/s
5 GHz 4324 Mbit/s
Maximum data transfer rate: 4324 Mbit/s
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
Specification
Features
2.4 GHz:
Yes
5 GHz:
Yes
6 GHz:
No
Maximum data transfer rate:
The maximum speed at which data can be transferred from one device to another.
4324 Mbit/s
Maximum data transfer rate (2.4 GHz):
688 Mbit/s
Maximum data transfer rate (5 GHz):
4324 Mbit/s
MIMO type:
Multi-User MIMO
Input current:
0.3 A
Output current:
1.5 A
Fast roaming:
Yes
Security
Encryption / Security:
Encryption algorithms are used for authentication, key encryption, and radio link security. The supported encryption algorithms are those that can be used with this product.
WEP, WPA, WPA2, WPA3
Wireless Distribution System (WDS):
Yes
Remote Authentication Dial-In User Service (RADIUS):
Yes
Network
Data transfer speed over Ethernet LAN:
Various LAN Ethernet connection speeds in megabits per second.
1000, 2500 Mbit/s
Communication Standards:
Network standards, e.g., IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
Antenna type:
Antenna type, e.g., indoor, outdoor.
Internal
Wi-Fi Multimedia (WMM) / (WME):
Yes
MIMO:
Yes
VLAN support:
A virtual local area network (VLAN) consists of several computers and switches. It is a computer network that is logically separated within another, larger physical LAN.
Yes
Management Features
Cloud-managed:
Yes

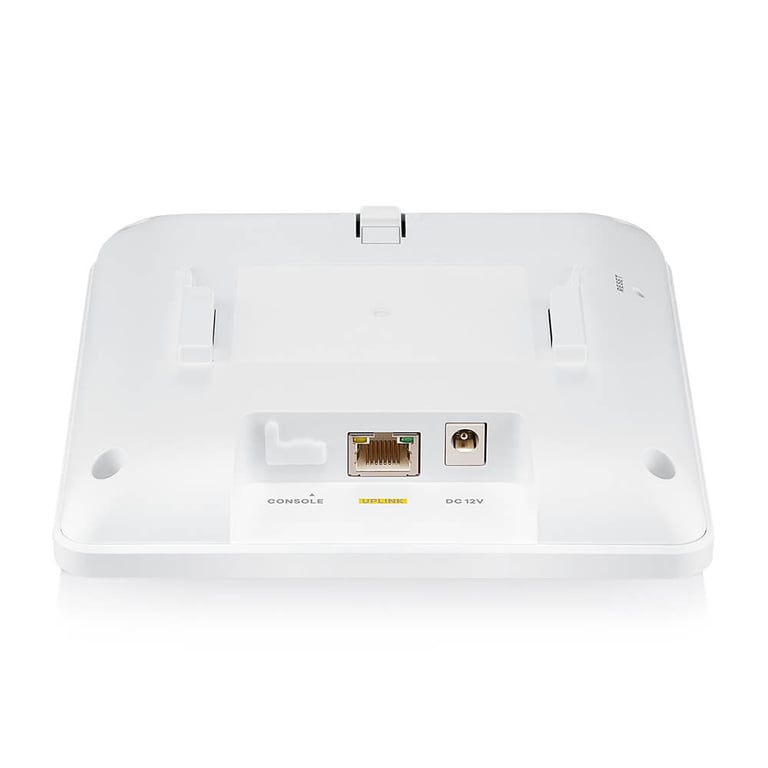

Ports and Interfaces
Number of Ethernet LAN ports (RJ-45):
Number of Ethernet LAN (RJ-45) ports on the device. Ethernet LAN (RJ-45) ports allow a computer to connect to an Ethernet network.
1
DC output jack:
Connecting the device to a power source.
Yes
Structure
Placement:
A location where a product can be placed, such as the floor or a wall.
Ceiling
Product color:
Color, e.g., red, blue, green, black, white.
White
Power
AC input voltage:
Electrical voltage.
100 - 240 V
AC input frequency:
50/60 Hz
PoE Support:
The device supports Power over Ethernet (PoE), a technology that transmits electrical power via Ethernet cables to network-connected peripheral devices. This allows both data and electrical power to be transmitted to devices such as wireless access points or IP cameras via a single cable.
Yes
DC voltage range:
12 V
Weight and Dimensions
Product weight:
Product weight without packaging (net). Whenever possible, the net weight is listed together with the weight of the equipment’s standard accessories. Please note that some manufacturers define the product weight as that of a single unit, excluding the weight of accessories and/or supplies.
412 g
Product depth:
Distance from the front to the back of the item.
150 mm
Product height:
Product height.
35 mm
Product width:
Width measurement.
150 mm
Packaging data
AC power adapter:
Yes
Weight including packaging:
Weight of the packaged product in grams.
785 g
Package width:
The distance from one side of the package to the other.
244 mm
Package depth:
Distance from the beginning to the end of the package.
168 mm
Package height:
Distance from the top to the bottom of the package.
60 mm

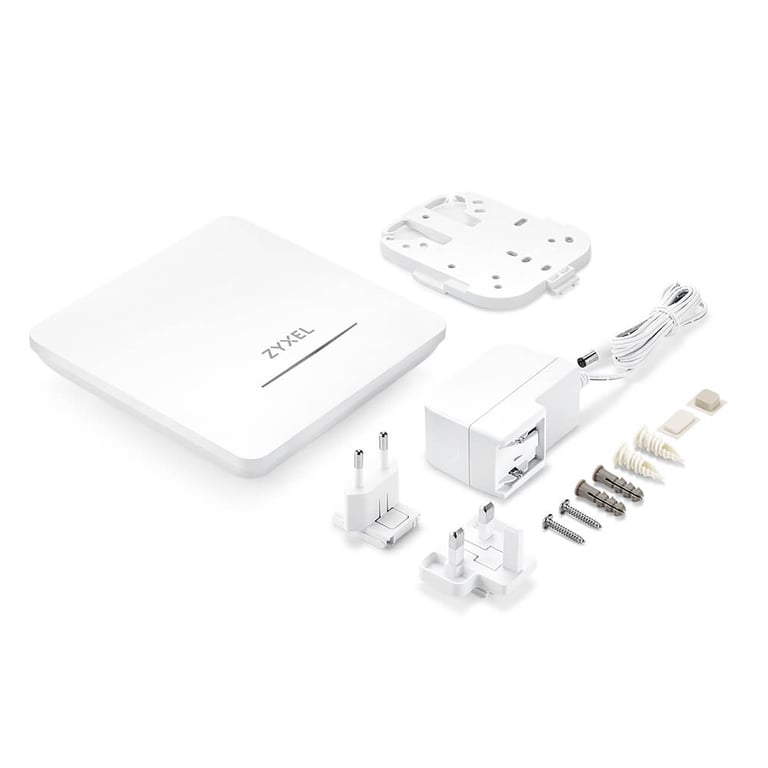

Package Contents
Installation kit:
Yes
Antenna
Antenna gain (max):
Antenna gain is a measure of an antenna’s ability to amplify incoming microwaves in a specific direction, compared to the omnidirectional sensitivity of an isotropic antenna or a dipole antenna, which is equally sensitive in all directions.
3 dBi
Working Conditions
Temperature range (operating):
The minimum and maximum temperatures at which the device can be used safely.
0–50 °C
Temperature range (storage):
The minimum and maximum temperatures at which the device can be safely stored.
-40 to 70 °C
Relative humidity range:
10 - 95%
Permissible relative humidity:
10 - 90%
